GTO12100(12V100AH/10HR)Long life battery

Application scenario

1.Uninterruptible power supply

2. Backup power supply

3. Emergency lighting

4. Power tools and power stations

5. Transportation

6. Energy storage

7. Security and network communication systems, etc

Product characteristics

1. ABS structure, no leakage

2. Low self-discharge rate, fireproof

3. It can be installed and used in multiple directions

4. High quality AGM diaphragm and lead-calcium alloy plate

5. Wide operating temperature range: -20°C ~ 50°C

Specifications

Nominal Voltage			12V
Nominal Capacity(10hr)			100AH
Dimension			Length 330±2mm(13inch) Width 173±2mm(6.81inch) Height 216±2mm(8.50inch) Total Height 220±2mm(8.66inch)



Approx Weight			Approx. 28kg(+-3%)
Terminal Type			M8
container Material			ABS(UL-94HB)
Internal Resistance			Approx.14mΩ
Rated Capacity			102.0AH (20hr, 1.75V/cell,25℃/77℉) 100.0AH (10hr, 1.75V/cell,25℃/77℉) 85.0AH (5hr, 1.75V/cell,25℃/77℉) 75.0AH (3hr, 1.75V/cell,25℃/77℉) 55.0AH (1hr, 1.75V/cell,25℃/77℉)




Max. Discharge Current			1200A(5S)
Nominal Operating Temp. Range			25±3℃ (77±5℉ )
Cycle Use			Charge Current Less Than 0.25CA 14.1V~14.7V@25℃(77℉)Temp. Coefficient -30mV/℃

Floating Use			13.5V~13.8V@25℃(77℉)Temp. Coefficient -20mV/℃
Capacity affected by Temperature			40°C 103% 25°C 100% 0°C 86% -15°C 65%



Self-discharge			3 month Remaining capacity: 91% 6 month Remaining capacity:82% 12month Remaining capacity:65%

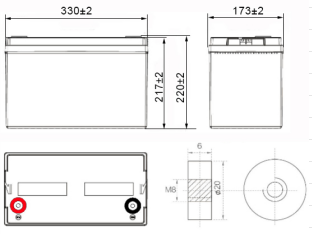

Dimensions

Terminal M8

Constant Current Discharge at 25℃(77℉)
F.V/Time	5min	10min	15min	30min	1h	2h	3h	4h	5h	6h	10h	20h
1.80V/cell	255	215	170	106	59.6	40.4	29.2	22.4	18.2	14.5	9.72	5.11
1.75V/cell	279	218	174	110	60.7	41.4	29.5	22.8	19.0	14.6	9.79	5.10
1.70V/cell	290	221	180	112	62.9	42.4	29.9	23.3	19.4	14.9	9.85	5.10
1.67V/cell	323	235	183	114	65.4	43.4	30.1	23.6	19.8	15.0	9.99	5.15
1.60V/cell	327	237	185	116	67.9	44.4	30.4	23.9	20.1	15.6	10.12	5.15

Discharge Characteristics	Float Charging Characteristics

Floating Life on Temperature	Self Discharge Characteristics（ 25℃(77℉)）

Temperature Effects in Relation to Battery Capacity	Cycle Life Relation to Depth of Discharge
