GTO12065(12V65AH/10HR)safe and reliable
  • GTO12065(12V65AH/10HR)safe and reliable

GTO12065(12V65AH/10HR)safe and reliable

Application scenario
1.Uninterruptible power supply
2. Backup power supply
3. Emergency lighting
4. Power tools and power stations
5. Transportation
6. Energy storage
7. Security and network communication systems, etc
Product characteristics
1. ABS structure, no leakage
2. Low self-discharge rate, fireproof
3. It can be installed and used in multiple directions
4. High quality AGM diaphragm and lead-calcium alloy plate
5. Wide operating temperature range: -20°C ~ 50°C
    Specifications
    Nominal Voltage 12V
    Nominal Capacity(10hr) 65AH
    Dimension Length                           350±2mm(13.78inch)
    Width                             167±2mm(6.57inch)
    Height                            174±2mm(6.85inch)
    Total Height                    174±2mm(6.85inch)
    Approx Weight Approx. 20.0kg(+-3%)
    Terminal Type M8
    container Material ABS(UL-94HB)
    Internal Resistance Approx.6.0mΩ
    Rated Capacity 68.0AH                           (20hr, 1.75V/cell,25℃/77℉)
    65.0AH                           (10hr, 1.75V/cell,25℃/77℉)
    55.0AH                           (5hr, 1.75V/cell,25℃/77℉)
    50.0AH                           (3hr, 1.75V/cell,25℃/77℉)
    30.0AH                           (1hr, 1.75V/cell,25℃/77℉)
    Max. Discharge Current 500A(5S)
    Nominal Operating Temp. Range 25±3℃ (77±5℉ )
    Cycle Use Charge Current Less Than 0.25CA
    14.1V~14.7V@25℃(77℉)Temp. Coefficient -30mV/℃
    Floating Use 13.5V~13.8V@25℃(77℉)Temp. Coefficient -20mV/℃
    Capacity affected by Temperature 40°C                      103%
    25°C                      100%
    0°C                         86%
    -15°C                      65%
    Self-discharge 3 month                   Remaining capacity: 91%
    6 month                   Remaining capacity:82%
    12month                  Remaining capacity:65%

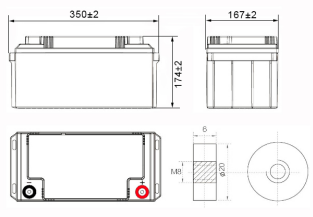

    Dimensions
                               Terminal M8

    Constant Power Discharge at 25℃(77℉)
    F.V/Time 5min 10min 15min 30min 1h 2h 3h 4h 5h 6h 10h 20h
    1.80V/cell 231 193 160 115 78.3 43.6 31.8 25.6 20.5 18.7 12.7 7.08
    1.75V/cell 262 216 171 119 79.8 45.8 32.5 25.9 21.0 18.9 12.8 7.12
    1.70V/cell 292 233 184 122 81.5 47.3 33.0 26.3 21.2 19.0 12.9 7.14
    1.67V/cell 312 239 188 124 83.2 48.6 33.3 26.4 21.4 19.2 12.9 7.16
    1.60V/cell 317 242 190 125 84.3 48.8 33.8 26.6 22.1 19.4 13.0 7.16

    Constant Current Discharge at 25℃(77℉)
    F.V/Time 5min 10min 15min 30min 1h 2h 3h 4h 5h 6h 10h 20h
    1.80V/cell 168 136 104.1 62.6 39.6 21.3 15.9 12.7 10.5 9.41 6.50 3.37
    1.75V/cell 169 137 105.7 63.6 40.3 21.9 16.0 13.0 10.7 9.44 6.52 3.39
    1.70V/cell 172 138 107.2 64.6 40.8 22.4 16.3 13.2 10.9 9.53 6.52 3.40
    1.67V/cell 184 139 109.3 65.6 41.3 23.0 16.5 13.2 11.1 9.68 6.52 3.40
    1.60V/cell 196 140 110.4 66.6 42.8 23.5 17.0 13.7 11.2 9.74 6.53 3.41

    Discharge Characteristics Float Charging Characteristics
    Floating Life on Temperature Self Discharge Characteristics（ 25℃(77℉)）
    Temperature Effects in Relation to Battery Capacity Cycle Life Relation to Depth of Discharge
