GTO12026(12V26AH/20HR)High quality battery
  • GTO12026(12V26AH/20HR)High quality battery

GTO12026(12V26AH/20HR)High quality battery

Application scenario
1.Uninterruptible power supply
2. Backup power supply
3. Emergency lighting
4. Power tools and power stations
5. Transportation
6. Energy storage
7. Security and network communication systems, etc
Product characteristics
1. ABS structure, no leakage
2. Low self-discharge rate, fireproof
3. It can be installed and used in multiple directions
4. High quality AGM diaphragm and lead-calcium alloy plate
5. Wide operating temperature range: -20°C ~ 50°C
    Specifications
    Nominal Voltage 12V
    Nominal Capacity(20hr) 26AH
    Dimension Length                     166±2mm(6.54inch)
    Width                       175±2mm(6.89inch)
    Height                      125±2mm(4.92inch)
    Total Height              125±2mm(4.92inch)
    Approx Weight Approx. 7.25kg(+-3%)
    Terminal Type M6
    container Material ABS(UL-94HB)
    Internal Resistance Approx.11mΩ
    Rated Capacity 26.0AH                          (20hr, 1.75V/cell,25℃/77℉)
    24.8AH                          (10hr, 1.75V/cell,25℃/77℉)
    23.2AH                          (5hr, 1.75V/cell,25℃/77℉)
    20.6AH                          (3hr, 1.75V/cell,25℃/77℉)
    15.5AH                          (1hr, 1.75V/cell,25℃/77℉)
    Max. Discharge Current 390A(5S)
    Nominal Operating Temp. Range 25±3℃ (77±5℉ )
    Cycle Use Charge Current Less Than 0.25CA
    14.1V~14.7V@25℃(77℉)Temp. Coefficient -30mV/℃
    Floating Use 13.5V~13.8V@25℃(77℉)Temp. Coefficient -20mV/℃
    Capacity affected by Temperature 40°C                           103%
    25°C                           100%
    0°C                              86%
    -15°C                           65%
    Self-discharge 3 month                     Remaining capacity: 91%
    6 month                     Remaining capacity:82%
    12month                    Remaining capacity:65%

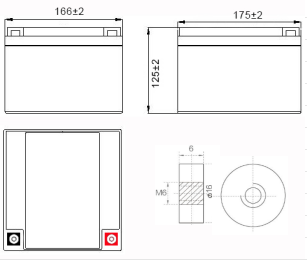

    Dimensions
                                   Terminal M6

    Constant Power Discharge at 25℃(77℉)
    F.V/Time 5min 10min 15min 30min 1h 2h 3h 4h 5h 6h 10h 20h
    1.80V/Cell 168.2 99.3 78.0 50.9 29.7 17.16 13.18 10.82 8.87 7.23 4.74 2.47
    1.75V/Cell 171.3 101.1 79.5 51.8 30.2 17.49 13.43 11.02 9.03 7.37 4.83 2.51
    1.70V/Cell 186.8 107.2 84.3 53.9 30.8 17.79 13.66 11.22 9.19 7.50 4.91 2.55
    1.67V/Cell 205.6 116.3 91.4 56.9 31.1 17.98 13.81 11.34 9.29 7.57 4.97 2.58
    1.60V/Cell 222.8 122.4 96.2 59.3 31.4 18.18 13.96 11.47 9.40 7.65 5.02 2.61

    Constant Current Discharge at 25℃(77℉)
    F.V/Time 5min 10min 15min 30min 1h 2h 3h 4h 5h 6h 10h 20h
    1.80V/Cell 86.3 50.9 40.0 26.1 15.23 8.80 6.76 5.55 4.55 3.71 2.43 1.26
    1.75V/Cell 87.9 51.9 40.8 26.6 15.51 8.97 6.88 5.65 4.63 3.78 2.48 1.30
    1.70V/Cell 95.8 55.0 43.2 27.6 15.78 9.12 7.01 5.75 4.71 3.84 2.52 1.31
    1.67V/Cell 105.4 59.7 46.9 29.2 15.95 9.22 7.08 5.81 4.76 3.88 2.55 1.32
    1.60V/Cell 114.2 62.8 49.3 30.4 16.13 9.32 7.16 5.88 4.82 3.93 2.58 1.34

    Discharge Characteristics Float Charging Characteristics
    Floating Life on Temperature Self Discharge Characteristics（ 25℃(77℉)）
    Temperature Effects in Relation to Battery Capacity Cycle Life Relation to Depth of Discharge
