GTO12017(12V17AH/20HR)Low self-discharge rate, fireproof
  • GTO12017(12V17AH/20HR)Low self-discharge rate, fireproof

GTO12017(12V17AH/20HR)Low self-discharge rate, fireproof

Application scenario
1.Uninterruptible power supply
2. Backup power supply
3. Emergency lighting
4. Power tools and power stations
5. Transportation
6. Energy storage
7. Security and network communication systems, etc
Product characteristics
1. ABS structure, no leakage
2. Low self-discharge rate, fireproof
3. It can be installed and used in multiple directions
4. High quality AGM diaphragm and lead-calcium alloy plate
5. Wide operating temperature range: -20°C ~ 50°C
    Specifications
    Nominal Voltage 12V
    Nominal Capacity(20hr) 17AH
    Dimension Length                    181±2mm(5.94inch)
    Width                      77±2mm(3.03inch)
    Height                     167±2mm(6.57inch)
    Total Height            167±2mm(6.57inch)
    Approx Weight Approx. 4.7 kg(+-3%)
    Terminal Type T1
    container Material ABS(UL-94HB)
    Internal Resistance Approx.10.0mΩ
    Rated Capacity 17.0AH                    (20hr, 1.70V/cell,25℃/77℉)
    16.4AH                    (10hr, 1.75V/cell,25℃/77℉)
    14.4AH                    (5hr, 1.75V/cell,25℃/77℉)
    13.0AH                    (3hr, 1.70V/cell,25℃/77℉)
    9.50AH                    (1hr, 1.60V/cell,25℃/77℉)
    Max. Discharge Current 350A(5S)
    Nominal Operating Temp. Range 25±3℃ (77±5℉ )
    Cycle Use Charge Current Less Than 0.25CA
    14.1V~14.7V@25℃(77℉)Temp. Coefficient -30mV/℃
    Floating Use 13.5V~13.8V@25℃(77℉)Temp. Coefficient -20mV/℃
    Capacity affected by Temperature 40°C                         103%
    25°C                         100%
    0°C                            86%
    -15°C                         65%
    Self-discharge 3 month                     Remaining capacity: 91%
    6 month                     Remaining capacity:82%
    12month                    Remaining capacity:65%

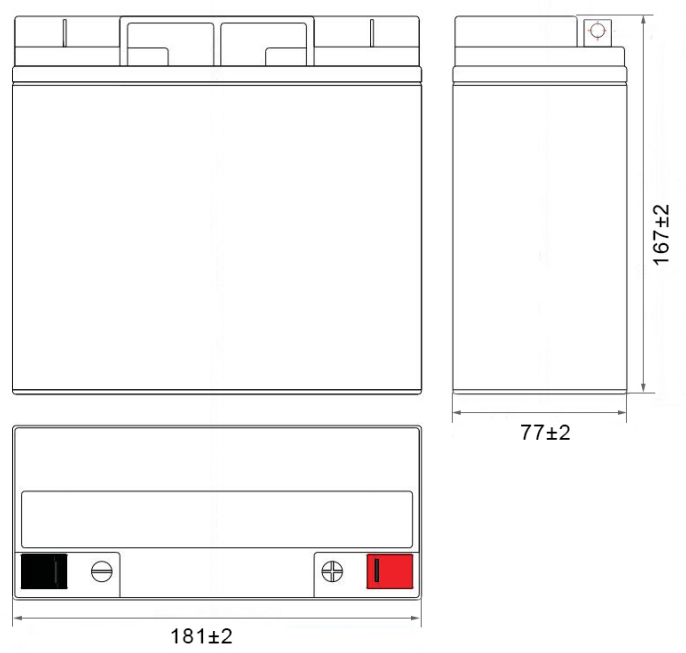

    Dimensions
    Terminal F1

    Constant Power Discharge at 25℃(77℉)
    F.V/Time 5min 10min 15min 30min 1h 2h 3h 4h 5h 6h 10h 20h
    1.80V/cell 108 74.9 61.5 36.9 21.1 11.3 9.36 7.15 6.19 4.94 3.15 1.63
    1.75V/cell 110 76.3 62.7 37.6 21.5 11.5 9.54 7.29 6.30 5.04 3.20 1.66
    1.70V/cell 113 78.6 64.6 38.7 22.2 11.9 9.82 7.50 6.49 5.18 3.31 1.71
    1.67V/cell 118 81.6 67.1 40.2 23.0 12.4 10.2 7.80 6.74 5.39 3.43 1.78
    1.60V/cell 124 86.2 70.8 42.4 24.3 13.1 10.8 8.23 7.12 5.69 3.63 1.87

    Constant Current Discharge at 25℃(77℉)
    F.V/Time 5min 10min 15min 30min 1h 2h 3h 4h 5h 6h 10h 20h
    1.80V/cell 55.3 38.4 31.5 18.9 10.8 5.81 4.80 3.67 3.18 2.53 1.62 0.85
    1.75V/cell 56.4 39.1 32.1 19.3 11.0 5.93 4.89 3.73 3.23 2.58 1.64 0.85
    1.70V/cell 58.1 40.3 33.1 19.8 11.4 6.10 5.04 3.85 3.33 2.66 1.69 0.88
    1.67V/cell 60.3 41.9 34.4 20.6 11.8 6.34 5.24 4.00 3.46 2.76 1.76 0.90
    1.60V/cell 63.7 44.2 36.3 21.8 12.5 6.69 5.53 4.22 3.65 2.92 1.86 0.91

    Discharge Characteristics Float Charging Characteristics
    Floating Life on Temperature Self Discharge Characteristics（ 25℃(77℉)）
    Temperature Effects in Relation to Battery Capacity Cycle Life Relation to Depth of Discharge
