GTO12012(12V12AH/20HR)Suitable for household appliances
  • GTO12012(12V12AH/20HR)Suitable for household appliances

GTO12012(12V12AH/20HR)Suitable for household appliances

Application scenario
1.Uninterruptible power supply
2. Backup power supply
3. Emergency lighting
4. Power tools and power stations
5. Transportation
6. Energy storage
7. Security and network communication systems, etc
Product characteristics
1. ABS structure, no leakage
2. Low self-discharge rate, fireproof
3. It can be installed and used in multiple directions
4. High quality AGM diaphragm and lead-calcium alloy plate
5. Wide operating temperature range: -20°C ~ 50°C
    Specifications
    Nominal Voltage 12V
    Nominal Capacity(20hr) 12AH
    Dimension Length                    151±2mm(5.94inch)
    Width                      98±2mm(3.86inch)
    Height                     95±2mm(3.70inch)
    Total Height            101±2mm(3.98inch)
    Approx Weight Approx. 3.25kg(+-3%)
    Terminal Type F1/F2
    container Material ABS(UL-94HB)
    Internal Resistance Approx.18mΩ
    Rated Capacity 12.00AH             (20hr, 1.70V/cell,25℃/77℉)
    11.0AH               (10hr, 1.75V/cell,25℃/77℉)
    10.0AH               (5hr, 1.75V/cell,25℃/77℉)
    9.0AH                 (3hr, 1.70V/cell,25℃/77℉)
    6.6AH                 (1hr, 1.60V/cell,25℃/77℉)
    Max. Discharge Current 200A(5S)
    Nominal Operating Temp. Range 25±3℃ (77±5℉ )
    Cycle Use Charge Current Less Than 0.25CA
    14.1V~14.7V@25℃(77℉)Temp. Coefficient -30mV/℃
    Floating Use 13.5V~13.8V@25℃(77℉)Temp. Coefficient -20mV/℃
    Capacity affected by Temperature 40°C                         103%
    25°C                         100%
    0°C                            86%
    -15°C                         65%
    Self-discharge 3 month                     Remaining capacity: 91%
    6 month                     Remaining capacity:82%
    12month                    Remaining capacity:65%

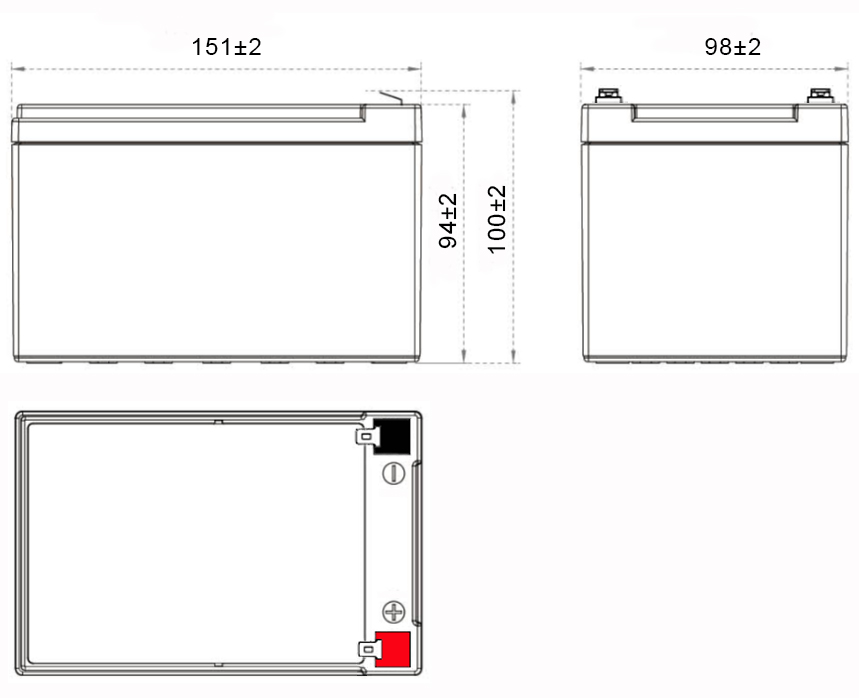

    Dimensions
    Terminal F1 Terminal F2

    Constant Power Discharge at 25℃(77℉)
    F.V/Time 5min 10min 15min 30min 1h 2h 3h 4h 5h 6h 10h 20h
    1.80V/cell 72.3 49.9 34.6 21.4 12.6 7.38 5.62 4.47 3.71 3.17 2.07 1.09
    1.75V/cell 73.7 50.9 35.2 21.8 12.9 7.53 5.72 4.55 3.78 3.23 2.11 1.11
    1.70V/cell 75.9 52.4 37.3 22.7 13.1 7.66 5.83 4.63 3.85 3.29 2.15 1.13
    1.67V/cell 78.1 53.9 40.5 24.0 13.2 7.74 5.89 4.68 3.89 3.32 2.17 1.14
    1.60V/cell 80.3 55.4 42.6 25.0 13.4 7.82 5.95 4.73 3.92 3.35 2.19 1.16

    Constant Current Discharge at 25℃(77℉)
    F.V/Time 5min 10min 15min 30min 1h 2h 3h 4h 5h 6h 10h 20h
    1.80V/cell 37.1 25.6 17.7 11.0 6.48 3.78 2.88 2.29 1.90 1.63 1.06 0.56
    1.75V/cell 37.8 26.1 18.1 11.2 6.60 3.86 2.94 2.33 1.94 1.66 1.08 0.57
    1.70V/cell 38.9 26.9 19.1 11.7 6.72 3.92 2.98 2.66 2.37 1.68 1.10 0.58
    1.67V/cell 40.1 27.6 20.8 12.3 6.79 3.97 3.02 2.40 2.40 1.70 1.11 0.59
    1.60V/cell 41.2 28.4 21.9 12.8 6.86 4.01 3.05 2.43 2.43 1.72 1.12 0.59

    Discharge Characteristics Float Charging Characteristics
    Floating Life on Temperature Self Discharge Characteristics（ 25℃(77℉)）
    Temperature Effects in Relation to Battery Capacity Cycle Life Relation to Depth of Discharge
