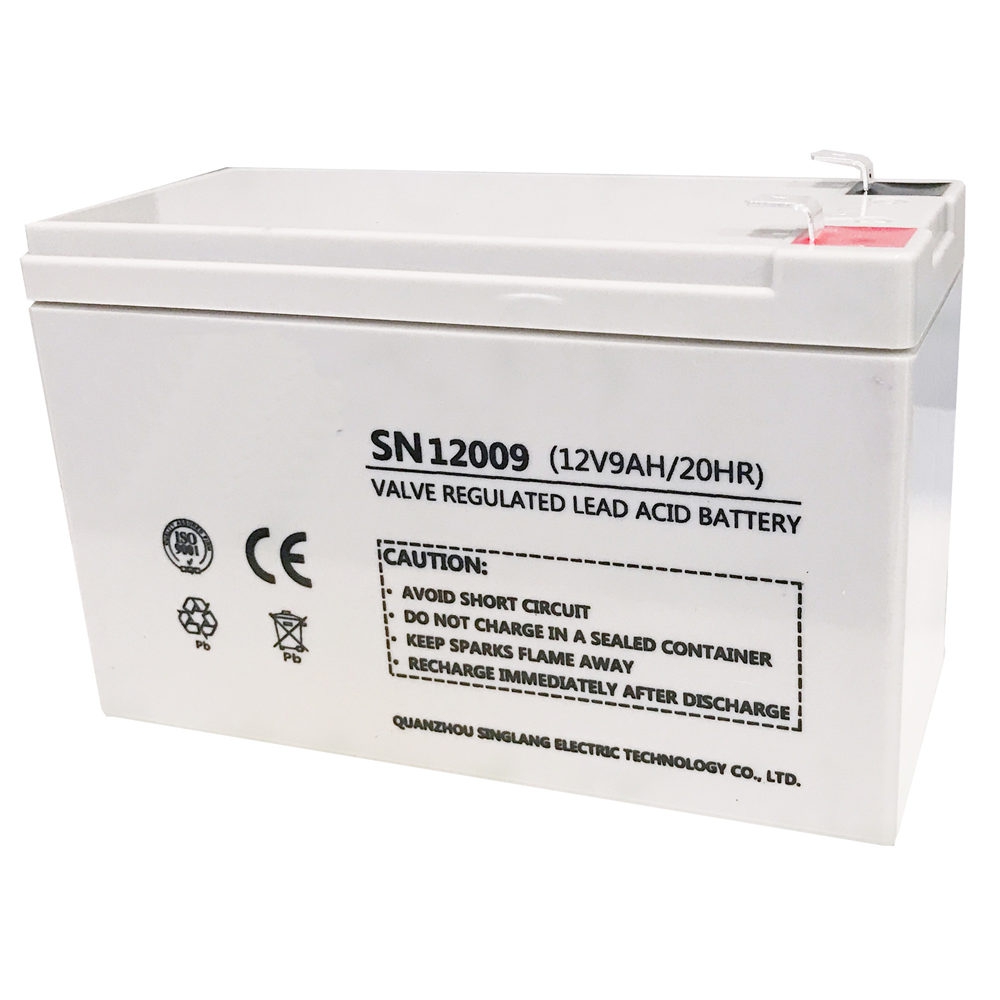

GTO12009(12V9AH/20HR)Spare battery, lead-acid battery
  • GTO12009(12V9AH/20HR)Spare battery, lead-acid battery

GTO12009(12V9AH/20HR)Spare battery, lead-acid battery

Application scenario
1.Uninterruptible power supply
2. Backup power supply
3. Emergency lighting
4. Power tools and power stations
5. Transportation
6. Energy storage
7. Security and network communication systems, etc
Product characteristics
1. ABS structure, no leakage
2. Low self-discharge rate, fireproof
3. It can be installed and used in multiple directions
4. High quality AGM diaphragm and lead-calcium alloy plate
5. Wide operating temperature range: -20°C ~ 50°C
    Specifications
    Nominal Voltage 12V
    Nominal Capacity(20hr) 9AH
    Dimension Length                           151±2mm(5.94inch)
    Width                             65±2mm(2.56inch)
    Height                            94±2mm(3.7inch)
    Total Height                   100±2mm(3.94inch)
    Approx Weight Approx. 2.48kg(+-3%)
    Terminal Type F1/F2
    container Material ABS(UL-94HB)
    Internal Resistance Approx.25mΩ
    Rated Capacity 9.0AH                      (20hr, 1.75V/cell,25℃/77℉)
    8.2AH                      (10hr, 1.75V/cell,25℃/77℉)
    8.0AH                      (5hr, 1.75V/cell,25℃/77℉)
    7.3AH                      (3hr, 1.75V/cell,25℃/77℉)
    5.5AH                      (1hr, 1.75V/cell,25℃/77℉)
    Max. Discharge Current 200A(5S)
    Nominal Operating Temp. Range 25±3℃ (77±5℉ )
    Cycle Use Charge Current Less Than 0.25CA
    14.1V~14.7V@25℃(77℉)Temp. Coefficient -30mV/℃
    Floating Use 13.5V~13.8V@25℃(77℉)Temp. Coefficient -20mV/℃
    Capacity affected by Temperature 40°C                              103%
    25°C                              100%
    0°C                                 86%
    -15°C                              65%
    Self-discharge 3 month                            Remaining capacity: 91%
    6 month                            Remaining capacity:82%
    12month                           Remaining capacity:65%

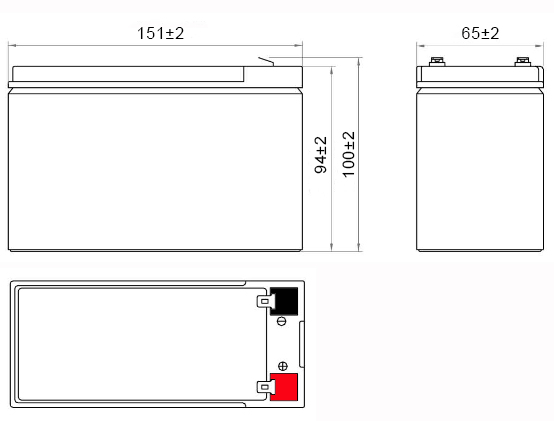

    Dimensions
    Terminal F1 Terminal F2

    Constant Power Discharge at 25℃(77℉)
    F.V/Time 5min 10min 15min 30min 1h 2h 3h 4h 5h 6h 10h 20h
    1.80V/cell 53.6 37.2 30.6 18.3 10.5 5.64 4.66 3.55 3.07 2.46 1.56 0.81
    1.75V/cell 54.6 37.9 31.2 18.7 10.7 5.74 4.74 3.62 3.13 2.50 1.59 0.83
    1.70V/cell 56.3 39.1 32.1 19.2 11.0 5.92 4.89 3.73 3.22 2.58 1.64 0.85
    1.67V/cell 58.5 40.6 33.3 20.0 11.5 6.15 5.07 3.88 3.35 2.68 1.71 0.89
    1.60V/cell 61.7 42.9 35.2 21.1 12.1 6.49 5.35 4.09 3.54 2.83 1.80 0.92

    Constant Current Discharge at 25℃(77℉)
    F.V/Time 5min 10min 15min 30min 1h 2h 3h 4h 5h 6h 10h 20h
    1.80V/cell 27.6 19.2 15.7 9.4 5.41 2.90 2.40 1.83 1.58 1.26 0.81 0.42
    1.75V/cell 28.1 19.5 16.0 9.6 5.51 2.96 2.44 1.87 1.61 1.29 0.82 0.43
    1.70V/cell 29.0 20.1 16.5 9.9 5.68 3.05 2.51 1.92 1.66 1.33 0.85 0.44
    1.67V/cell 30.1 20.9 17.2 10.3 5.90 3.16 2.61 2.00 1.73 1.38 0.88 0.45
    1.60V/cell 31.8 22.1 18.1 10.9 6.23 3.34 2.76 2.11 1.82 1.43 0.91 0.46

    Discharge Characteristics Float Charging Characteristics
    Floating Life on Temperature Self Discharge Characteristics（ 25℃(77℉)）
    Temperature Effects in Relation to Battery Capacity Cycle Life Relation to Depth of Discharge
