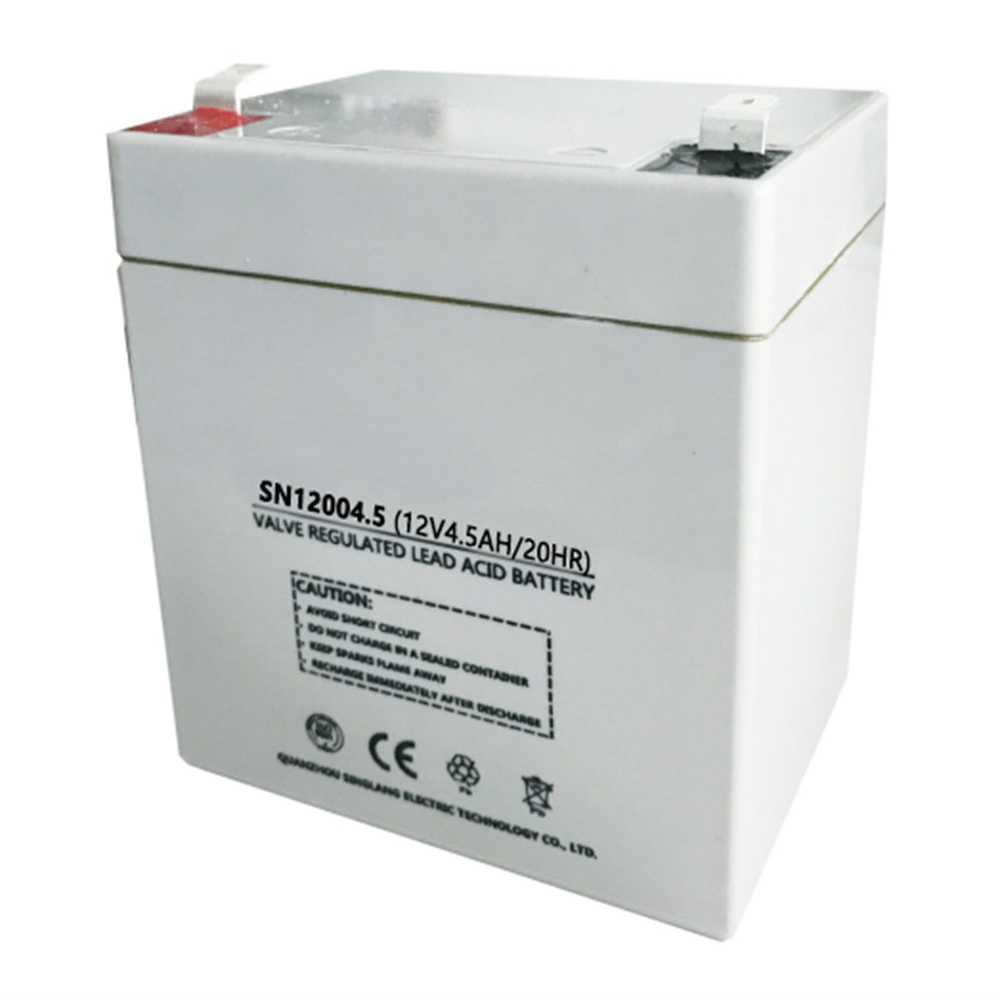

GTO12004.5(12V4.5AH/20HR)The price is cheap and the quality is reliable
  • GTO12004.5(12V4.5AH/20HR)The price is cheap and the quality is reliable

GTO12004.5(12V4.5AH/20HR)The price is cheap and the quality is reliable

Application scenario
1.Uninterruptible power supply
2. Backup power supply
3. Emergency lighting
4. Power tools and power stations
5. Transportation
6. Energy storage
7. Security and network communication systems, etc
Product characteristics
1. ABS structure, no leakage
2. Low self-discharge rate, fireproof
3. It can be installed and used in multiple directions
4. High quality AGM diaphragm and lead-calcium alloy plate
5. Wide operating temperature range: -20°C ~ 50°C
    Specifications
    Nominal Voltage 12V
    Nominal Capacity(20hr) 4.5AH
    Dimension Length                       90±2mm(3.54inch)
    Width                         70±2mm(2.76inch)
    Height                        101±2mm(3.98inch)
    Total Height               105±2mm(4.13inch)
    Approx Weight Approx. 1.44kg(+-3%)
    Terminal Type F1/F2
    container Material ABS(UL-94HB)
    Internal Resistance Approx.25mΩ
    Rated Capacity 4.5AH                             (20hr, 1.75V/cell,25℃/77℉)
    4.3AH                             (10hr, 1.75V/cell,25℃/77℉)
    4.0AH                             (5hr, 1.75V/cell,25℃/77℉)
    3.5AH                             (3hr, 1.75V/cell,25℃/77℉)
    2.7AH                             (1hr, 1.75V/cell,25℃/77℉)
    Max. Discharge Current 105A(5S)
    Nominal Operating Temp. Range 25±3℃ (77±5℉ )
    Cycle Use Charge Current Less Than 0.25CA
    14.1V~14.7V@25℃(77℉)Temp. Coefficient -30mV/℃
    Floating Use 13.5V~13.8V@25℃(77℉)Temp. Coefficient -20mV/℃
    Capacity affected by Temperature 40°C                             103%
    25°C                             100%
    0°C                                86%
    -15°C                             65%
    Self-discharge 3 month                           Remaining capacity: 91%
    6 month                           Remaining capacity:82%
    12month                          Remaining capacity:65%

    Dimensions

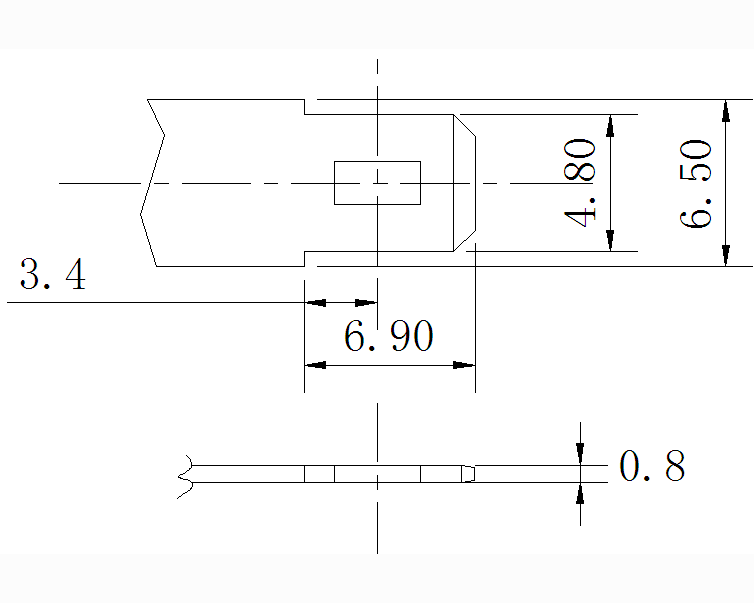

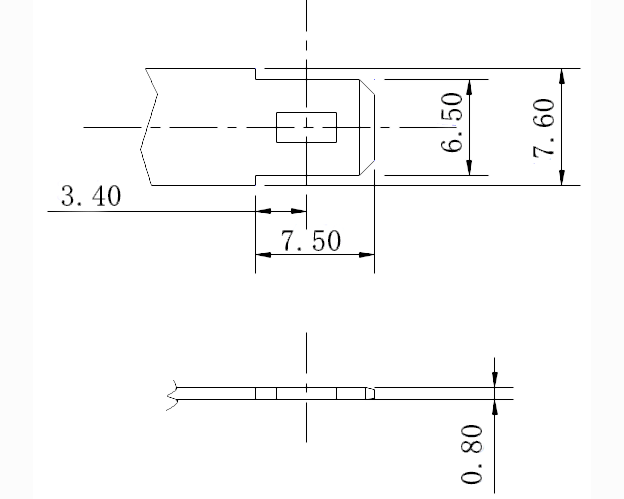

    Terminal F1 Terminal F2

    Constant Power Discharge at 25℃(77℉)
    F.V/Time 5min 10min 15min 30min 1h 2h 3h 4h 5h 6h 10h 20h
    1.80V/Cell 25.3 18.9 13.9 8.8 5.11 2.93 2.24 1.79 1.53 1.25 1.07 0.43
    1.75V/Cell 25.7 19.2 14.2 9.0 5.21 2.98 2.28 1.82 1.56 1.28 0.83 0.44
    1.70V/Cell 28.1 20.4 15.0 9.3 5.30 3.04 2.32 1.85 1.59 1.30 0.85 0.45
    1.67V/Cell 30.9 22.1 16.3 9.9 5.36 3.07 2.35 1.87 1.60 1.31 0.86 0.15
    1.60V/Cell 33.5 23.3 17.2 10.3 5.41 3.10 2.37 1.89 1.62 1.33 0.87 0.46

    Constant Current Discharge at 25℃(77℉)
    F.V/Time 5min 10min 15min 30min 1h 2h 3h 4h 5h 6h 10h 20h
    1.80V/Cell 13.0 9.7 7.15 4.51 2.62 1.50 1.15 0.92 0.79 0.64 0.42 0.22
    1.75V/Cell 13.2 9.9 7.28 4.60 2.67 1.52 1.17 0.93 0.80 0.65 0.43 0.22
    1.70V/Cell 14.4 10.5 7.71 4.78 2.71 1.55 1.19 0.95 0.82 0.67 0.44 0.23
    1.67V/Cell 15.8 11.3 8.4 5.05 2.74 1.57 1.20 0.96 0.82 0.67 0.44 0.23
    1.60V/Cell 17.2 11.9 8.8 5.27 2.77 1.59 1.22 0.97 0.83 0.68 0.45 0.23

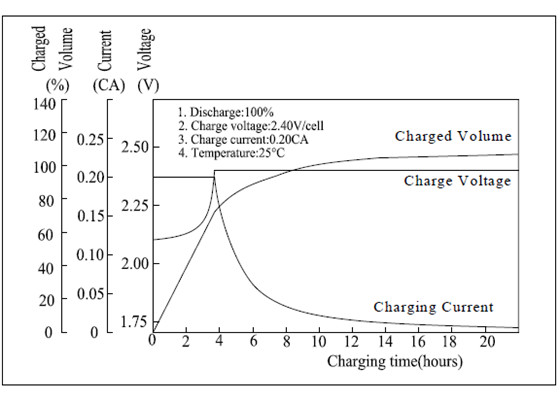

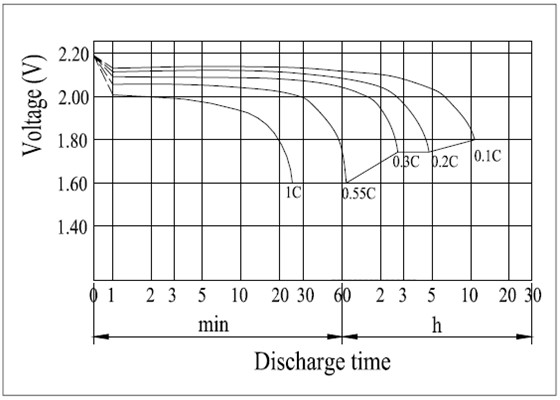

    Discharge Characteristics Float Charging Characteristics

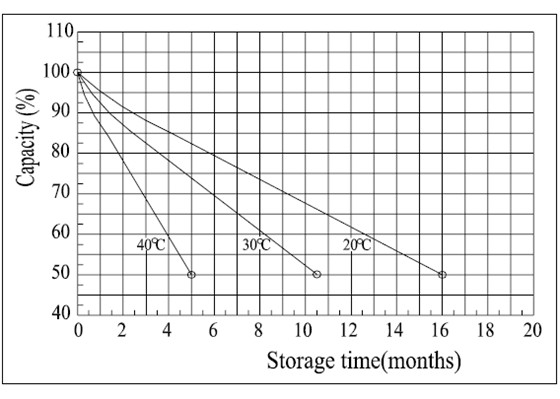

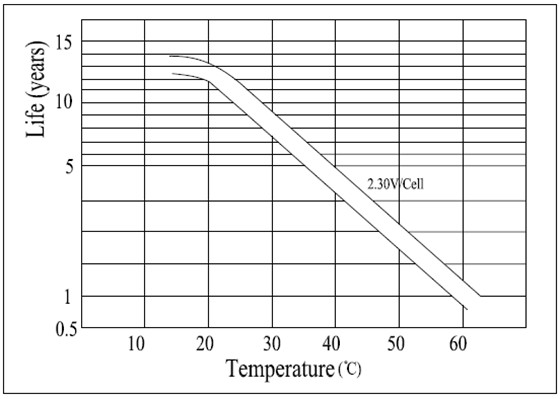

    Floating Life on Temperature Self Discharge Characteristics（ 25℃(77℉)）

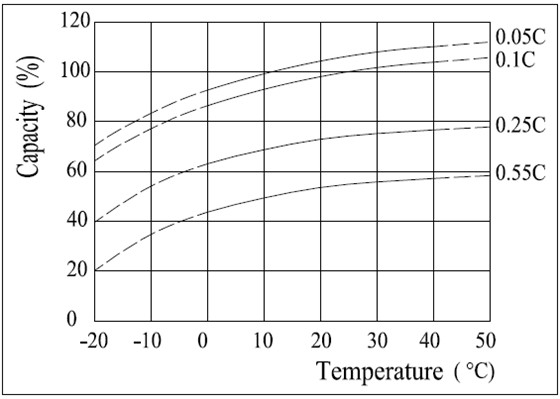

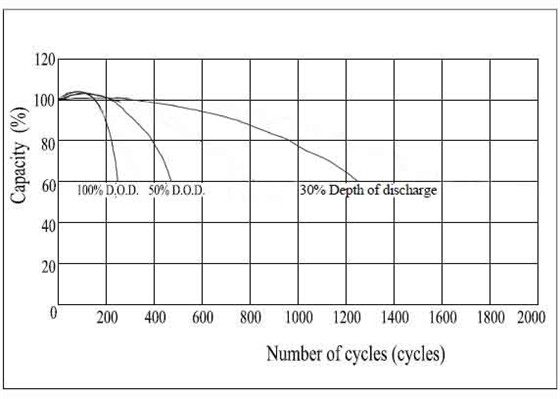

    Temperature Effects in Relation to Battery Capacity Cycle Life Relation to Depth of Discharge
