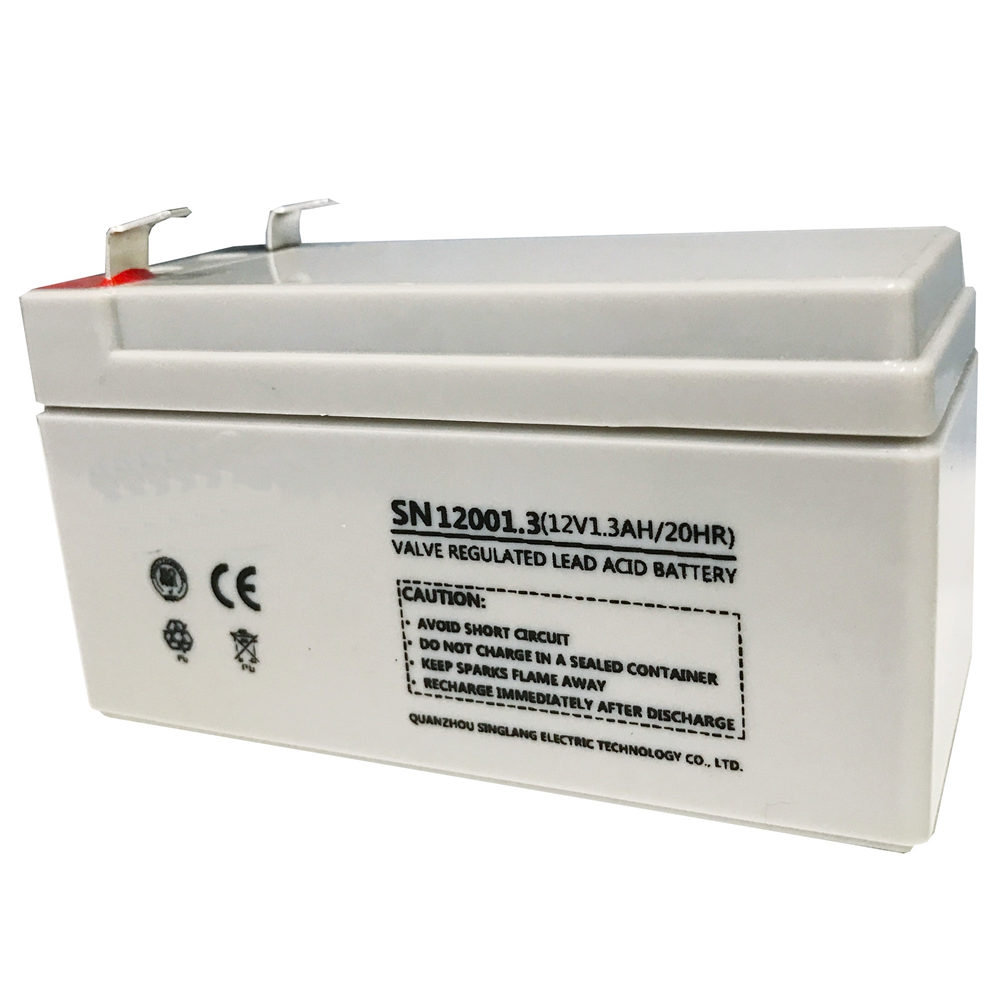

GTO12001.3(12V1.3AH/20HR)Factories directly wholesale lead-acid batteries

Application scenario

1.Uninterruptible power supply

2. Backup power supply

3. Emergency lighting

4. Power tools and power stations

5. Transportation

6. Energy storage

7. Security and network communication systems, etc

Product characteristics

1. ABS structure, no leakage

2. Low self-discharge rate, fireproof

3. It can be installed and used in multiple directions

4. High quality AGM diaphragm and lead-calcium alloy plate

5. Wide operating temperature range: -20°C ~ 50°C

Specifications

Nominal Voltage			12V
Nominal Capacity(20hr)			1.3AH
Dimension			Length 97±2mm(3.82inch) Width 45±2mm(1.77inch) Height 52±2mm(2.05inch) Total Height 57±2mm(2.24inch)



Approx Weight			Approx. 0.55kg(+-3%)
Terminal Type			F1/F2
container Material			ABS(UL-94HB)
Internal Resistance			Approx.100mΩ
Rated Capacity			1.3Ah (20hr, 1.75V/cell,25℃/77℉) 1.2Ah (10hr, 1.75V/cell,25℃/77℉) 1.0Ah (5hr, 1.75V/cell,25℃/77℉) 0.93Ah (3hr, 1.75V/cell,25℃/77℉) 0.80Ah (1hr, 1.75V/cell,25℃/77℉)




Max. Discharge Current			60A(5S)
Nominal Operating Temp. Range			25±3℃ (77±5℉ )
Cycle Use			Charge Current Less Than 0.25CA 14.1V~14.7V@25℃(77℉)Temp. Coefficient -30mV/℃

Floating Use			13.5V~13.8V@25℃(77℉)Temp. Coefficient -20mV/℃
Capacity affected by Temperature			40°C 103% 25°C 100% 0°C 86% -15°C 65%



Self-discharge			3 month Remaining capacity: 91% 6 month Remaining capacity: 82% 12month Remaining capacity: 65%

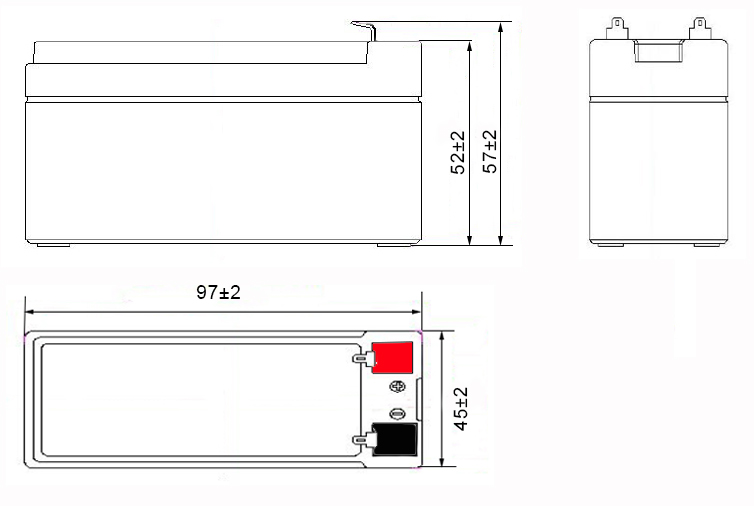

Dimensions


Terminal F1	Terminal F2

Constant Current Discharge at 25℃(77℉)
F.V/Time	5min	10min	15min	30min	1h	2h	3h	4h	5h	6h	10h	20h
1.80V/cell	3.42	2.52	2.02	1.26	0.77	0.49	0.31	0.25	0.21	0.19	0.11	0.06
1.75V/cell	3.83	2.70	2.14	1.29	0.78	0.50	0.31	0.26	0.21	0.19	0.12	0.07
1.70V/cell	4.23	2.89	2.26	1.32	0.79	0.51	0.31	0.26	0.21	0.20	0.12	0.07
1.67V/cell	4.48	2.98	2.31	1.33	0.80	0.51	0.32	0.26	0.21	0.20	0.12	0.07
1.60V/cell	4.78	3.20	2.46	1.35	0.80	0.51	0.32	0.26	0.21	0.20	0.12	0.07

Discharge Characteristics	Float Charging Characteristics

Floating Life on Temperature	Self Discharge Characteristics（ 25℃(77℉)）

Temperature Effects in Relation to Battery Capacity	Cycle Life Relation to Depth of Discharge
