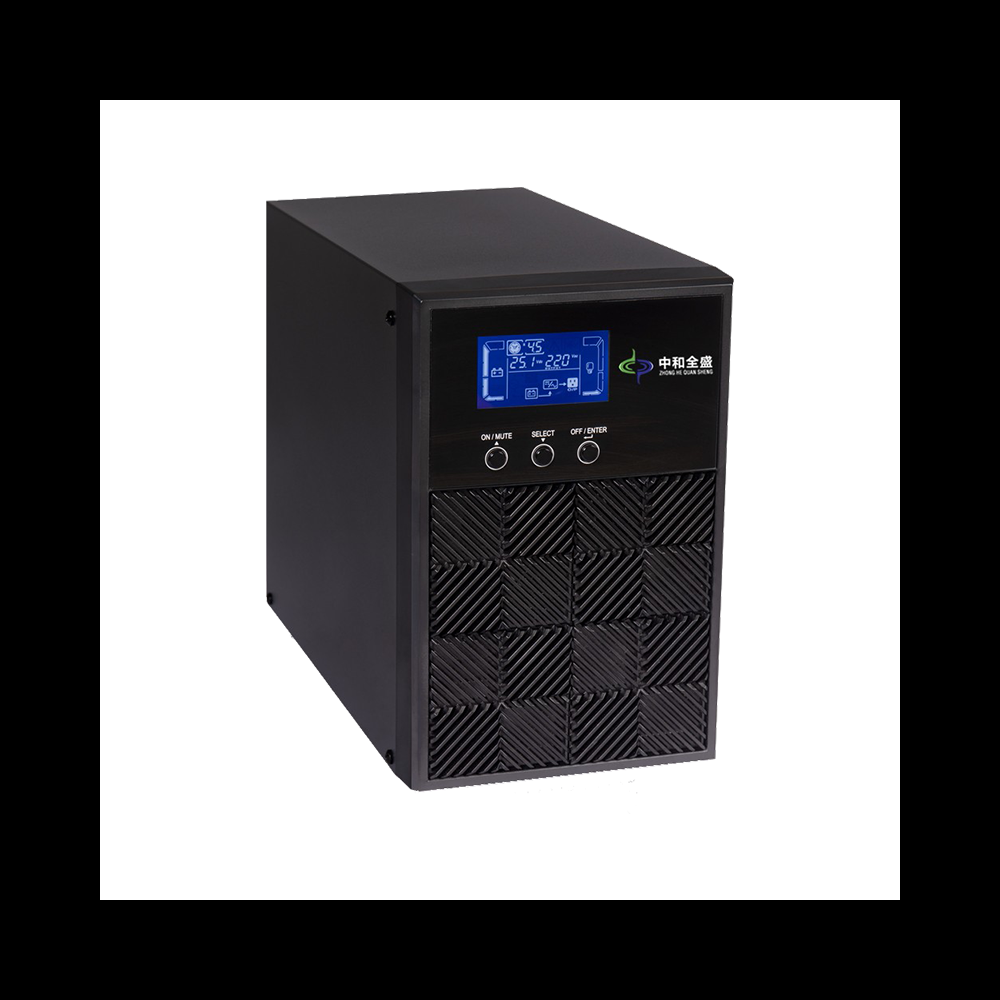

High-frequency unit H1K 1KVA/800W uninterrupted power supply

High efficiency (up to 98.5%); IGBT rectifier technology; Compact structure, reliable; Electrical isolation; High overload capacity; LCD display.

PRODUCT PROFILE
Power range: 1-10K VA
Working mode: single in single out, double transform online work.

Application: Widely used in government, finance, communications, education, transportation, meteorology, radio and television, industrial and commercial taxation, medical health, energy and electricity and other industries.

PRODUCT FEATURES
· Real online double conversion
· Microprocessor control ensures high reliability
· Input power factor correction
· Output power factor up to 0.8
· Wide mains input range (110V-300V)
· Efficient frequency conversion mode
· Compatible generator
· The optional exquisite SNMP card can be perfectly monitored alone or together with USB and RS232
· Easy operation control through the display, and integrated display to monitor UPS status
·ECO mode provides energy saving
· Emergency Power Shutdown (EPO)
· More than 6K models use DSP technology, built-in maintenance bypass switch (optional)
· Smart battery charging design extends battery life and performance
· Built-in isolation transformer (optional)

Online UPS Selection Guide

MODEL			H1K（L）	H2K（L）	H3K（L）	H6K（L）	H10K（L）
Phase			Single phase with ground
Capacity			1000VA/800W	2000VA/1600W	3000VA/2400W	6000VA/4800W	10000VA/8000W
INPUT
Voltage Range			110-300VAC@50%load/160-280VAC@100%load			110-300VAC@50%load/176-300VAC@100%load
Frequency range			40Hz~70Hz			46Hz~54Hz or 56Hz~64Hz
Power factor			0.99
Output
Output voltage			200/208/220/230/240VAC			208/220/230/240VAC
Voltage range (battery mode)			±1%
Frequency range (synchronous correction range)			47~53 Hz or 57~63Hz			46~54 Hz or 56Hz~64Hz
Frequency range (battery mode)			50Hz±0.25Hz or 60Hz±0.3Hz			50Hz±0.1Hz or 60Hz±0.1Hz
Surge ratio			3：1
Harmonic distortion			3% THD(linear load） 6% THD（nonlinear load）			3% THD(linear load） 5% THD（nonlinear load）
Transfer time	AC to DC		0ms
	Inverter to Bypass		4ms（Under standard conditions）			0ms
Waveform (battery mode)			pure sine wave
Efficiency
AC mode			88%	89%	90%	92%	93%
Battery mode			83%	87%	88%	90%	91%
Battery
Standard model	Battery Type		12V/7AH
	Numbers		2	4	6	12	16
	Charging Current (max.)		1.0A（max。）			presuppose：10A±10%，max.：2.0A±10%
Long-run model	Battery Type		Depending on the capacity of external batteries
	Numbers		3	6	8	16-20(Adjustable)
	Charging Current (max.)		1A/2A/4A/6A (Adjustable)			1A/2A/4A/6A (Adjustable, 6A is only available for 16pcs batteries)
Indicators
LCD or LED			Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators
Physical
Standard model	Dimension,D x W x H (mm)		282145220	397145220	421190318	369190688	442190688
	Net Weight (kgs)		9.8	27.4	27.6	51	65
Long-run model	Dimension,D x W x H (mm)		282145220	397145220		369190460	442190318
	Net Weight (kgs)		4.1	6.8	7.4	12	15
Environment
Humidity			20-90 % RH @ 0- 40°C (Non-condensing)			0-95 % RH @ 0- 40°C (Non-condensing)
Noise Level			Less than 50dB @ 1 Meter			Less than 55dB @ 1 Meter	Less than 58dB @ 1 Meter
Management
Smart RS-232 / USB		Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux,and MAC
Optional SNMP		Power management from SNMP manager and web browser
