MODEL |

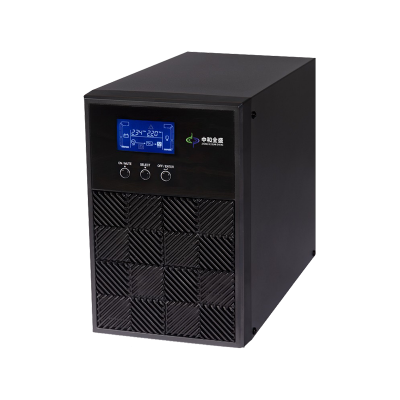

H1K(L) |
H2K(L) |
H3K(L) |

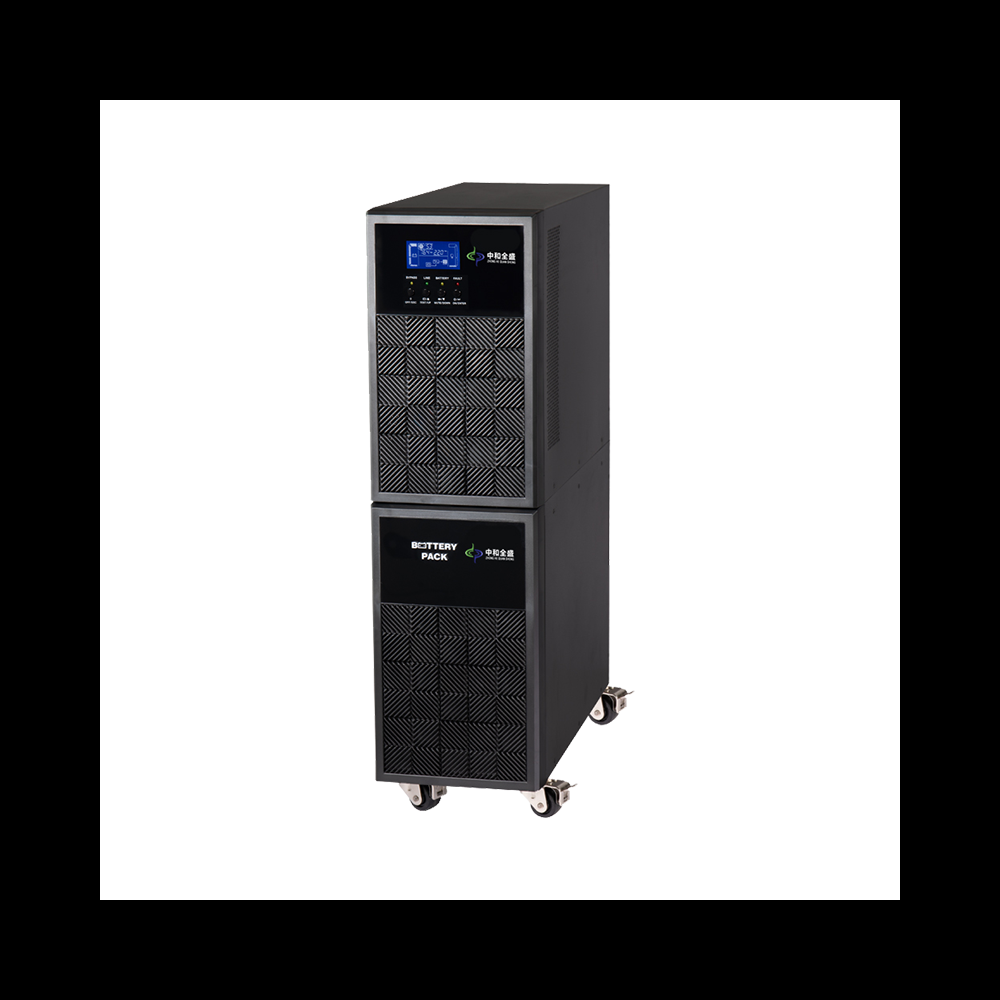

H6K(L) |
H10K(L) |
||
Phase position |
one-phase ground |
||||||
Capacity |
1000VA/800W |
2000VA/1600W |
3000VA/2400W |
6000VA/4800W |
10000VA/8000W |
||
INPUT |
|||||||
Voltage Range |
110-300VAC@50%load/160-280VAC@100%load |
110-300VAC@50%load/176-300VAC@100%load |
|||||
Frequency range |
40Hz~70Hz |
46Hz~54Hz or 56Hz~64Hz |
|||||
Power factor |
0.99 |
||||||
Output |
|||||||
Output voltage |
200/208/220/230/240VAC |
208/220/230/240VAC |
|||||
Voltage range (battery mode) |
±1% |
||||||
Frequency range (synchronous correction range) |
47~53 Hz or 57~63Hz |
46~54 Hz or 56Hz~64Hz |
|||||
Frequency range (battery mode) |
50Hz±0.25Hz or 60Hz±0.3Hz |
50Hz±0.1Hz or 60Hz±0.1Hz |
|||||
Surge ratio |
3:1 |
||||||
Harmonic distortion |
· 3% THD(linear load) 6% THD(nonlinear load) |
· 3% THD(linear load) 5% THD(nonlinear load) |
|||||
Transfer time |
AC to DC |
0ms |
|||||
Inverter to Bypass |
4ms(Under standard conditions) |
0ms |
|||||
Waveform (battery mode) |
pure sine wave |
||||||
Efficiency |
|||||||
AC mode |
88% |
89% |
90% |
92% |
93% |
||
Battery mode |
83% |
87% |
88% |
90% |
91% |
||
Battery |
|||||||
Standard model |
Battery Type |
12V/7AH |
|||||
Numbers |
2 |
4 |
6 |
12 |
16 |
||
Charging Current (max.) |
1.0A(max。) |
presuppose:10A±10%,max.:2.0A±10% |
|||||
Long-run model |
Battery Type |
Depending on the capacity of external batteries |
|||||
Numbers |
3 |
6 |
8 |
16-20(Adjustable) |
|||
Charging Current (max.) |
1A/2A/4A/6A (Adjustable) |
1A/2A/4A/6A (Adjustable, 6A is only available for 16pcs batteries) |
|||||
Indicators |
|||||||
LCD or LED |
Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators |
||||||
Physical |
|||||||
Standard model |
Dimension,D x W x H (mm) |
282*145*220 |
397*145*220 |
421*190*318 |
369*190*688 |
442*190*688 |
|
Net Weight (kgs) |
9.8 |
27.4 |
27.6 |
51 |
65 |
||
Long-run model |
Dimension,D x W x H (mm) |
282*145*220 |
397*145*220 |
369*190*460 |
442*190*318 |
||
Net Weight (kgs) |
4.1 |
6.8 |
7.4 |
12 |
15 |
||
Humidity |
20-90 % RH @ 0- 40°C (Non-condensing) |
0-95 % RH @ 0- 40°C (Non-condensing) |
|||||
Noise Level |
Less than 50dB @ 1 Meter |
Less than 55dB @ 1 Meter |
Less than 58dB @ 1 Meter |
||||
Management |
|||||||
Smart RS-232 / USB |
Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux,and MAC |
||||||
Optional SNMP |
Power management from SNMP manager and web browser |
