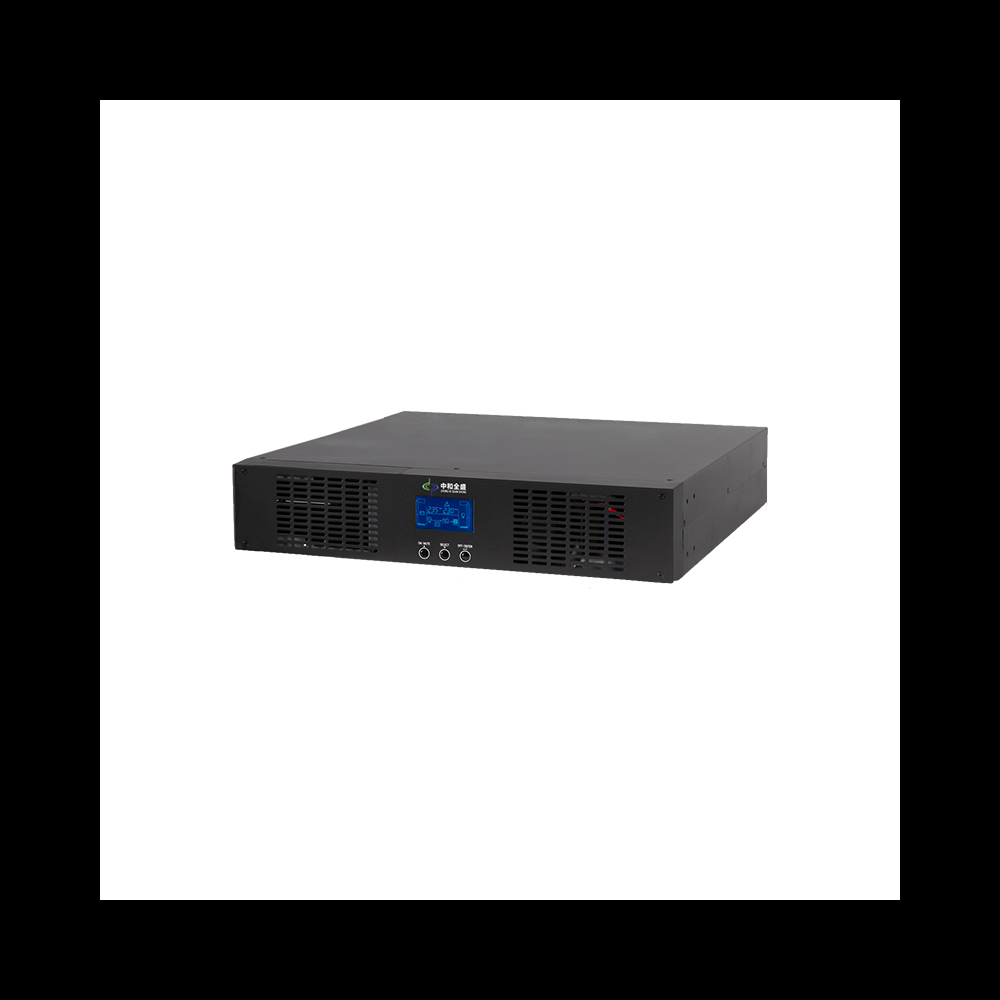

High-frequency rack type HR11 01KL 1000VA/800W uninterrupted power supply

High efficiency (up to 98.5%); IGBT rectifier technology; Compact structure, reliable; Electrical isolation; High overload capacity; LCD display.
Product description
Power range: 1-20KVA.
Working mode: single in single out (1-10K), three in single out (10-20K) double conversion online work.
Application: Widely used in government, finance, communications, education, transportation, meteorology, radio and television, industrial and commercial taxation, medical health, energy and electricity and other industries.
Product Features
·The machine truly realizes online double conversion.
·Compatible with generator input (generator capacity must be twice UPS capacity).
·Wide voltage input range 110-300V, suitable for harsh grid environment (1-10K).
·Battery mode, power consumption off, after the call, can be automatically turned on.
·The machine is controlled by MCU chip.
·ECO energy saving mode.
·Maintenance bypass switch is optional for 6-10K.
·Output isolation transformer can be added according to user requirements (installed before delivery).
·6-10K comes standard with EPO(emergency power off device).
·This series has two types of power factor PF0.8 and PF0.9.
·Small size, easy operation, high power density, strong stability, cost-effective, widely used.

Rack Online UPS Selection Guide

MODEL		HR1101K(L)	HR1102K(L)	HR1103K(L)	HR1106K(L)	HR1110K(L)	HR3110K(L)	HR3115K(L)	HR3120K(L)
capacity		1000 VA 800 W	2000 VA 1600 W	3000 VA 2400 W	6000VA 4800W	10000VA 8000W	1000VA 8000w	5000V/ 12000W	20000VA 16000W
INPUT
voltage range		120VAC~288VAC					266VAC~475VAC
frequency range		40Hz~70 Hz
phase position		Single-phase ground type					Three phase grounded type
frequency range		40Hz~70 Hz
output
output voltage		208/220/230/240VAC
AC voltage range		±1%
Frequency range (synchronization range)		47～53 Hz
Frequency range (battery mode)		50 Hz±0.1
AC Mode overload		100%~110%:30min；110%~130%:5min；>130%:10s
Current peak ratio		3:01
harmonic distortion		2%THD(linear load)/4%THD(nonlinear load)
switching time		0ms
Waveform (battery mode)		pure sine wave
efficiency
AC Mode		87%	88%	90%	92%	93%	>89%
Battery Mode		84%	86%	88%	90%	91%	86%	>88%	87%
Battery
Calibration machine	model	12V/7AH					12V/7AH
	number	2	4	6	16	16	16	16	16
	charging time	90% capacity in 4 hours (under standard conditions)
	charging current	1.0A±10;max.)1A or 2(Achoosable)						2.0A±10%
Long type	capacity	It depends on the external battery
	number	3	6	8	16-20 (adjustable)
	charging current	1A/2A/4A/6A					4.0A±10%
appearance
Calibration machine	Dimension，DxWxH(mm)	310x438x88	410x438x88	630x 438×88	UPS host： 530×438×88(2U) battery box： 668×438×88 (2U)	UPS host： 530×438×88(2U) battery box： 668×438×88 (2U)	UPS host： 668×438×133(3U) battery box： 580×438×133 (3U)	UPS host： 668×438×266(6U) battery box： 580×438×133(3U)×2pcs
	Net weight (kg)	12	19	29.3	UPS host: 13 battery box：46	UPS host：17 battery box：46	UPS host：2 battery box：63	UPS host：45 battery box： 63×2pcs
Long type	Dimension，DxWxH(mm)	310×438×88	410×438×88	410×438×88	530×438×88(2U)	580×438×133(3U)	668×438×133(3U)	668×438×266(6U)
	Net weight (kg)	9	12	14.2	13	17	22	45
environment
Humidity		20-90%RH@0-40°℃(Non-condensing)
Operating altitude		<1000m
Noise Level		Less than58dBA@1Meter			Less than55dBA@1Meter	Less than58dBA @1Meter
management
smart RS-232		Support Windows 2000/2003/XP/Vista/2008/7、Linux、Unix and MAC						Optional SNMP
