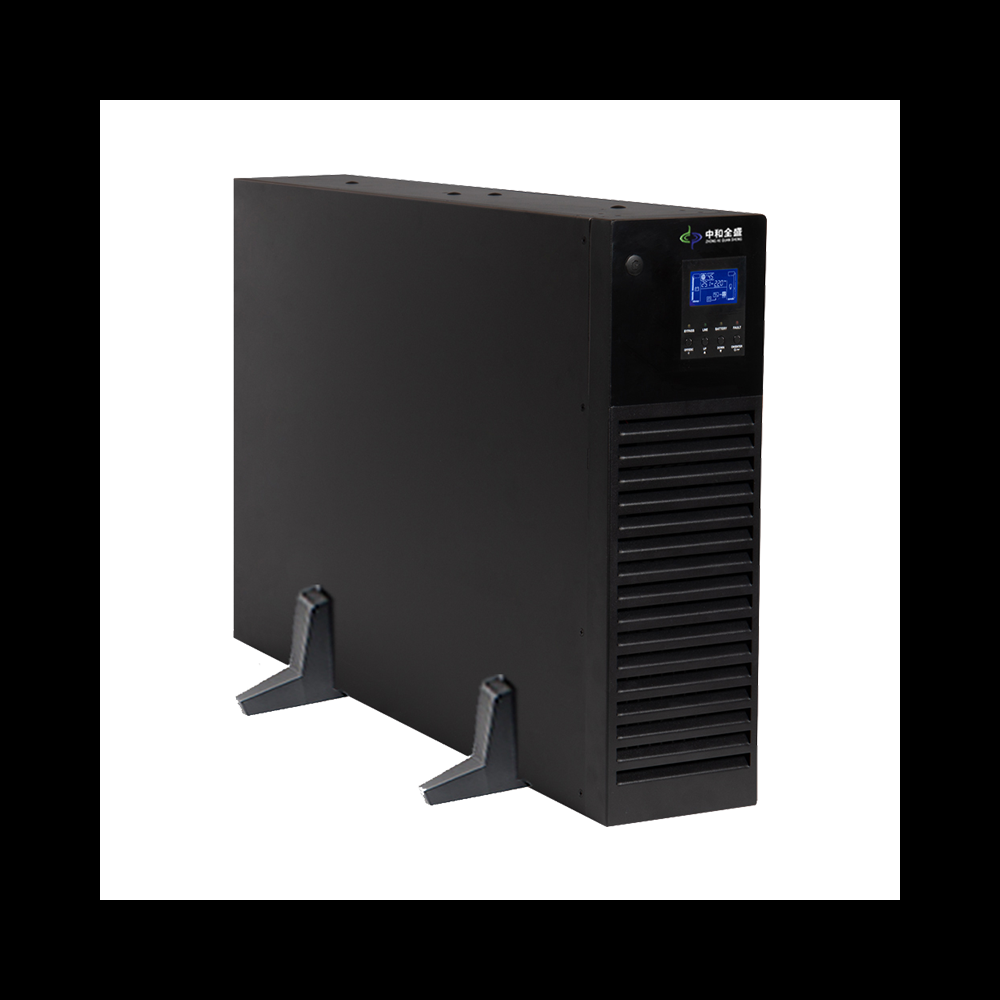

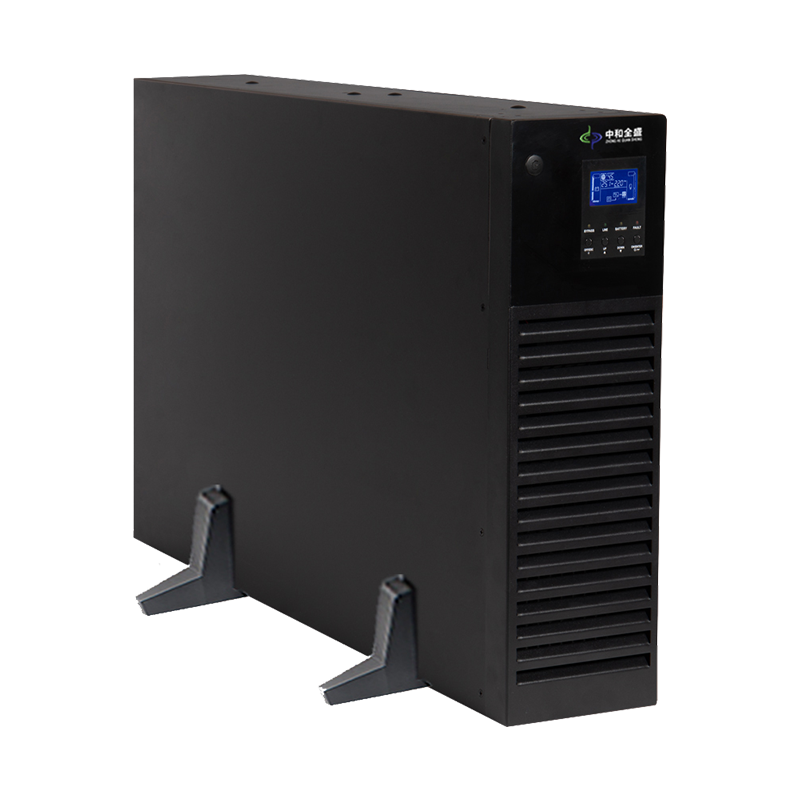

High frequency rack-tower interchange RT33 10-20KL 10KVA-20KVA/10KW-20KW uninterrupted power supply

PRODUCT FEATURES

Interface Management functions: LCD LCD displays the UPS operating status and parameter information in real time, facilitating UPS management.

High environmental adaptability function: The circuit board is placed in a completely closed space and is coated with "three defenses", which is more suitable for the harsh environment of tunnels and squares.

Network monitoring function: Through RS232/RS485 communication interface, SNMP network adapter, with UPS intelligent monitoring software can communicate with the computer, UPS various parameters are clearly displayed on the communication interface.
·Pure double conversion technology
·LCD screen automatic rotation (only for 10K-20K models)
·DSP technology ensures high performance
·Output power factor 1.0
·With power factor correction
·50 Hz/60Hz inverter mode
·Energy-saving working mode (ECO)
·Emergency shutdown function (EPO
·Support generator, support two inputs
·3-stage charging design to optimize battery performance
·Adjustable battery number, suitable for long running
·Support shared battery pack
·Optional isolation transformer, optional parallel operation
·SNMP+USB+RS-232 communication
·Provide maintenance bypass, power walk-in function

Rack/Tower Online UPS Selection Guide

型号		10KL/10KL	15KL/15KL	20KL/20KL	30KL/30KL	40KL/40KL	60KL/60KL
容量		10KVA/10KW	15KVA/15KW	20KVA/20KW	30KVA/30KW	40KVA/40KW	60KVA/60KW
input
voltage range	Minimum conversion voltage	110VAC(Ph-N)±3%@50%load；176 VAC(Ph-N)±3%@100%load
	Minimum return voltage	Minimum conversion voltage+10V
	Maximum conversion voltage	300VAC(L-N)±3%@50%load；276VAC(L-N)±3%@100%load
	Maximum recovery voltage	Maximum conversion voltage-10V
frequency range		46Hz～54 Hz@50Hz system 56Hz～64 Hz@60Hz system
phase position		3 phase + neutral line
power factor		≥0.99@100% load
output
phase position		3 phase + neutral line
output voltage		360/380/400/415VAC(Ph-Ph)
		208*/220/230/240VAC(Ph-N)
Ac voltage accuracy		±1%
Frequency range (synchronization range)		46Hz～54 Hz@50Hz system 56Hz～64 Hz@60Hz system
Frequency range (battery mode)		50 Hz±0.1 Hz或60Hz±0.1 Hz
overload	AC Mode	100%~110%:60min；110%~125%:10min；125%~150%:1min；>150%:immediately
	Battery Mode	100%~110%:60min；110%~125%:10min；125%~150%:1min；>150%:immediately
Current peak ratio		3:1(max.)
harmonic distortion		≤2%@100%linear load；≤5%@100%nonlinear load
switching time	AC<-->battery	0 ms
	Inverter<-->Bypass	0ms(Phase-lock failure，<4ms RIRQ)
	Inverter< - - >ECO	0 ms(AC loss，<10ms)
efficiency
AC Mode		95.5%
Battery Mode		94.5%
battery
Long type	model	It varies by use
	number	16~20(adjustable)	32～40(adjustable)
	charging current	1A~12A(adjustable)				1A~16A(adjustable)		1A~18A(adjustable)
	charging voltage	±13.65VDC*N ±1%(N=10)	+/-13.65VDC*N±1%(N=16~20)
appearance
Long type	Dimension，DxWxH(mm)	680X438X133(3U)				797X438X176(4U)
	Net weight (kg)	27	30		32	40	45
environment
operating temperature		0~40℃(Battery life is shortened in >25 environments)
operation humidity		<95%(Non-condensing)
protect		IP20
Operating altitude		<1000m
Noise Level		Less than 60dB @ 1 Meter		Less than 62dB @ 1 Meter		Less than 62dB @ 1 Meter
management
smart RS-232 / USB		Supports Windows°2000/2003/XP/Vista/2008、Windows°7/8/10、Linux and MAC
Optional SNMP		Supports power management by SNMP administrators and network browsers
