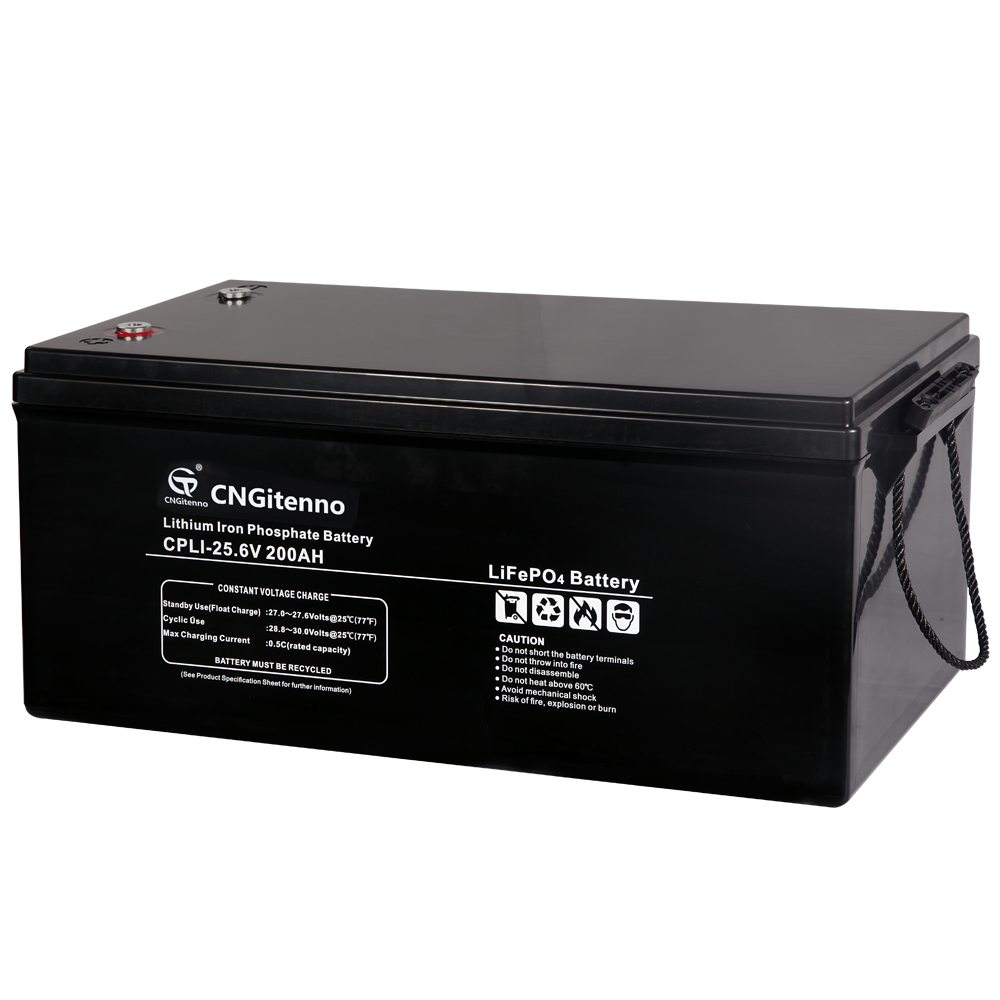

5.12KWh 25.6V200Ah  Lead Acid Replacement  lifepo4 battery pack for industries
  • 5.12KWh 25.6V200Ah  Lead Acid Replacement  lifepo4 battery pack for industries

5.12KWh 25.6V200Ah Lead Acid Replacement lifepo4 battery pack for industries

FEATURES
Longer Cycle Life: Offers up to 20 times longer cycle life and fivetimes longer float/calendar life than lead acid battery, helping tominimize replacement cost and reduce total cost of ownership.
Lighter Weight: About 40% of the weight of a comparable leadacid battery. A drop in replacement for lead acid batteries.
Higher Power: Delivers twice power of lead acid battery, evenhigh discharge rate, while maintaining high energy capacity.
Wider Temperature Range:-20℃~60℃.
Superior Safety: Lithium lron Phosphate chemistry eliminatesthe risk of explosion or combustion due to high impact, overchargingor short circuit situation.
Increased Flexibility: Modular design enables deployment of upto four batteries in series and up to ten batteries in parallel.
·Electric Vehicles,electric mobility
·Solar/wind energy storage system
·UPS,backup power
·Telecommunication
·Medical equipment
·Lighting
·Household energy storage system

    SPECIFICATIONS

    Electrical Specifications

    Nominal Voltage

    25.6V

    Nominal Capacity

    200Ah (C5,25℃)

    Nominal  Energy

    5120Wh

    Cycle  Life

    >6000 times (25 0.2C/0.2C 70%DOD)

    Months Self Discharge

    <3%

    Efficiency of Charge

    100% @0.2C

    Efficiency of Discharge

    96~99% @1C

    Charge Specifications

    Recommended Charging Voltage

    29.2±0.2V

    Recommended Charging Current

    40A

    Max.  Charging Voltage

    29.6V±0.2V

    Max.  Charging Current

    150A

    Discharge Specifications

    Recommended Discharging Current

    40A

     Max.  Pulse Current

    600A(<30ms)

    Discharge Cut-off Voltage

    20V

    Temperature Specifications

    Charge  Temperature

    0 ℃ to 45 ℃ (32F to 113F)

    Discharge  Temperature

    ‘-20 ℃ to 60 ℃ (-4F to 140F)

    Storage  Temperature

    0 ℃ to 40 ℃ (32F to 104F)

    Mechanical Specifications

    Terminal

    M8

    Plastic  Case

    ABS

    Dimensions ( mm. )

    522*268*218 mm

    Weight ( lbs. /kg.

    36Kg

    Protocol

    NO
