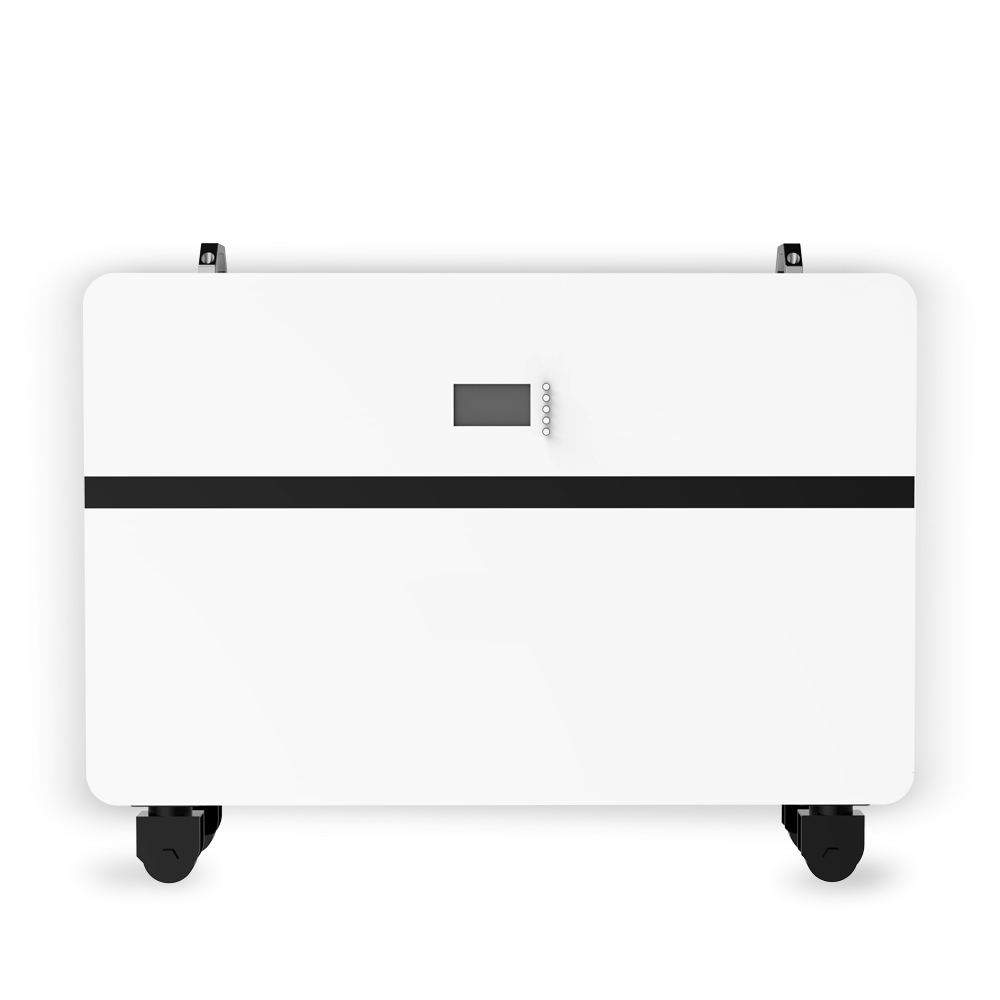

51.2V 280AH 14.3KWH China Moblie LiFePO4 Battery

FEATURES

LiFePO4 is used as positive material, long cycle life and good safety performance

Cycle life is no less than 6000 cycles @80% DOD, 0.5C

Mobile design, easy to use, 10/14kWH available

Easy plug and play input/output terminal for easy installation

The system can support multiple parallel

Battery cell is Certificated with IEC/ UL

MODEL	TGTH-51100-M	TGTH-51205-M	TGTH-51280-M
ELECTRICAL CHARACTERISTICS
Rate Voltage(Vdc)	51.2V
Energy Storage(kwH)	5.12	10.5	14.3
Cycle Life	25±2℃，0.5C/0.5C,EOL70%≥6000
CHARGE/DISCHARGE STANDARD
Charge Voltage	56V
Max. Charge Current(A)	100 (Optional 150/200A for 200AH pack)
Max.Discharge Current(A)	100 (0ptional 150/200A for 200AH pack)
Discharge Cut-Off Voltage(VDC)	43.2
Charge Cut-Off Voltage(VDC)	58.4
ENVIRONMENT
Charge Temperature	0°C to 55°C@60+25% Relative Humidity
Discharge Temperature	-25°Cto 55°C@60+25% Relative Humidity
Storage Temperature	-20°C to 55°C@60+25% Relative Humidity
MECHANICAL
IP Class	IP21
Case Type	Mobile power
Pack Dimensions LWH(mm)	612370190	622520227	766520221
Package Dimension LWH(mm)	712535298	722695328	866695328
Net Weight(kg)	55	92	115
Gross Weight(kg)	60	112	135
COMMUNICATION
ProtocolOptional)	CANBUS/RS485/RS232
CERTIFICATES
Pack	UN38.3, MSDS
Cell	UN38.3, MSDS,IEC62619, CE,UL1973,UL2054
