MODEL

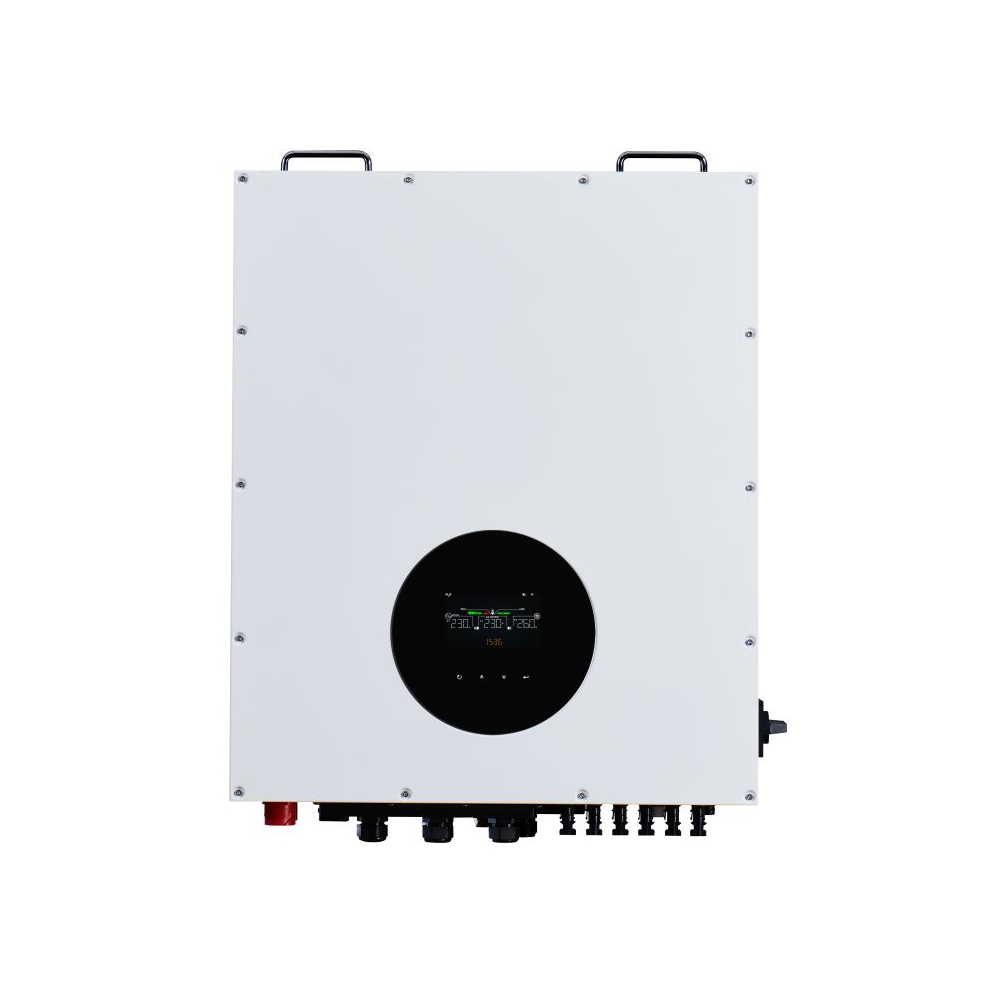

InfiniSolar WP 30kw

MAXIMUM PV INPUT POWER

40000 W

RATED OUTPUT POWER

30000 W

MAXIMUM CHARGING POWER

30000 W

GRID-TIE OPERATION

PV INPUT (DC)

Nominal DC Voltage / Maximum DC Voltage

720 VDC / 1000 VDC

Start-up Voltage / Initial Feeding Voltage

320 VDC / 350 VDC

MPP Voltage Range

350 VDC ~ 900 VDC

Number of MPP Trackers / Maximum Input Current

3 / A: 26A, B: 26A,  C: 26A

Number of Strings Per MPP Tracker

A: 2, B: 2, C: 2

GRID/UTILITY OUTPUT (AC)

Nominal Output Voltage

230 VAC (P-N) / 400 VAC (P-P)

Output Voltage Range

184 - 265 VAC per phase

Nominal Output Current

43.5 A per phase

Power Factor

0.9 lag to 0.9 lead

EFFICIENCY

Maximum Conversion Efficiency (DC/AC)

96.5%

European Efficiency@ Vnominal

96%

OFF-GRID OPERATION

AC INPUT

AC Start-up Voltage / Auto Restart Voltage

120 - 140 VAC / 180 VAC per phase

Acceptable Input Voltage Range

170 - 280 VAC per phase

Maximum AC Input Current

50 A

PV INPUT (DC)

Maximum DC Voltage

1000 VDC

MPP Voltage Range

350 VDC ~ 900 VDC

Number of MPP Trackers / Maximum Input Current

3 / A: 26A, B: 26A, C: 26A

BATTERY MODE OUTPUT (AC)

Nominal Output Voltage

230 VAC (P-N) / 400 VAC (P-P)

Output Waveform

Pure sine wave

Efficiency (DC to AC)

97%

HYBRID OPERATION

PV INPUT (DC)

Maximum DC Voltage

1000 VDC

Start-up Voltage / Initial Feeding Voltage

320 VDC / 350 VDC

MPP Voltage Range

350 VDC ~ 900 VDC

Number of MPP Trackers / Maximum Input Current

3 / A: 26A, B: 26A,  C: 26A

GRID OUTPUT (AC)

Nominal Output Voltage

230 VAC (P-N) / 400 VAC (P-P)

Output Voltage Range

184 - 265 VAC per phase

Nominal Output Current

43.5 A per phase

AC INPUT

AC Start-up Voltage / Auto Restart Voltage

120 - 140 VAC / 180 VAC per phase

Acceptable Input Voltage Range

170 - 280 VAC per phase

Maximum AC Input Current

50 A

BATTERY MODE OUTPUT (AC)

Nominal Output Voltage

230 VAC (P-N) / 400 VAC (P-P)

Efficiency (DC to AC)

97%

BATTERY & CHARGER

Battery Voltage Range

500 ~ 900 VDC

Maximum Charging Current

50 A

GENERAL

PHYSICAL

Dimension, D x W x H (mm)

255 x 660 x 750

Net Weight (kgs)

73

INTERFACE

Communication Port

RS-232, USB, DRY CONTACT, RS-485 and Wi-Fi

Intelligent Slot

Optional SNMP, MODBUS and GPRS

ENVIRONMENT

Humidity

0 ~ 100% RH

Operating Temperature

-25°C to 60°C (>45°C De-rating)

Altitude

0 ~ 1000 m**
