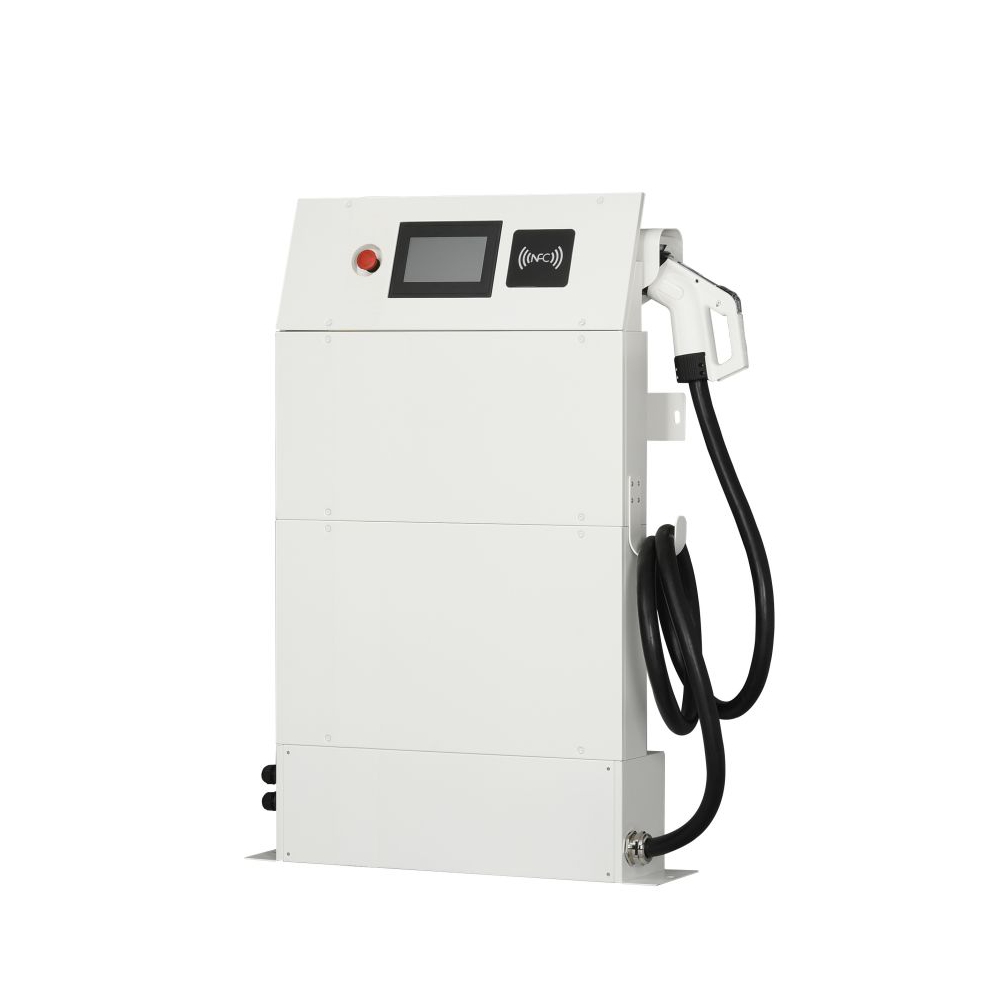

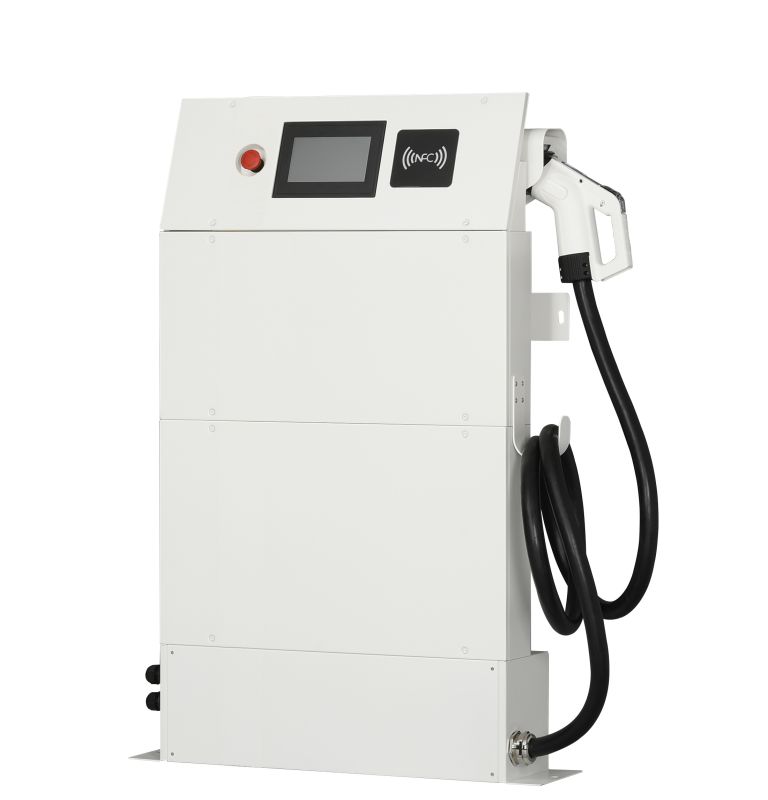

MODEL

ESS_EV_EU

ESS_EV_US

PV INPUT PARAMETERS

Maximum PV Input Power

14500 W

14500 W

Maximum PV Input Voltage

1000 VDC

600 VDC

MPPT Voltage Range

350~900 VDC

120~550 VDC

MPPT Voltage Range @ full load

500~900 VDC

300~550 VDC

Start-up Voltage

320 VDC

120 VDC

Nominal Input Voltage

720 VDC

360 VDC

Maximum Input Current

A: 18 A ; B: 18 A

A: 18 A ; B: 18 A

Max. Short-circuit Current

25 A

25 A

Number of MPPT Trackers

2

2

Number of Input Strings per MPPT Tracker

1

1

AC INPUT PARAMETERS

AC Start-up Voltage / Auto Restart Voltage

120 - 140 VAC per phase / 180 VAC per phase

10000VA/10000W

Acceptable Input Voltage Range

170 - 280 VAC per phase

10000W

Maximum AC Input Current

20 A

110/120 VAC (Phase to N), L1/L2/N/PE

GRID-TIE OUTPUT PARAMETERS

Nominal Output Power

10000VA/10000W

10000VA/10000W

Max. Output Power

10000W

10000W

Nominal Output Voltage

230 VAC (Phase to N), L1/L2/L3/N/PE

110/120 VAC (Phase to N), L1/L2/N/PE

Output Frequency

50/60 Hz

50/60 Hz

Max. Grid-tie Output Current

18 A per phase

41.5 A per phase

Power Factor

0.8 lead to 0.8 lag

0.8 lead to 0.8 lag

Maximum Input Current Distortion (THDi)

<5%

<5%

BACK UP OUTPUT PARAMETERS

Rated Output Power

10000VA/10000W

10000VA/10000W

Nominal Output Voltage

230 VAC (Phase to N), L1/L2/L3/N/PE

110/120V(Phase to N), L1/L2/N/PE * 100Vac Optional & derating to 8500W

Nominal Output Frequency

50/60 Hz

50/60 Hz

Maximum Conversion Efficiency (SOLAR TO GRID)

96%

96%

Maximum Conversion Efficiency (SOLAR TO BATTERY)

97%

97%

Maximum Conversion Efficiency (BATTERY TO LOAD)

96%

96%

EV CHARGER OUTPUT PARAMETERS

Charging Type

DC Fast Charging

DC Fast Charging

Outlet Options

C:CCS2; A:CCS1; J:CHAdeMO; G: GBT

C:CCS2; A:CCS1; J:CHAdeMO; G: GBT

Number of EV Served

Up to 1

Up to 1

DC Outpput Voltage

250~1000 VDC

250~1000 VDC

DC Output Power Rating (Max.)

30KW

30KW

DC Output Current (Max)

80 A

80 A

Charging Cable Length

3.5m  (6m Optional)

3.5m  (6m Optional)

Rated Output Power

30 KW

30KW

Voltage Regulation Precision

± 0.5%

± 0.5%

Current Regulation Precision

≤ ±1%

≤ ±1%

Short Circuit Current

≤ 10KA

≤ 10KA

Inrush Current

≤ 100 A

≤ 100 A

Leakage Current

≤ 0.8mA

≤ 0.8mA

Efficiency (DC-DC)

97% Peak

97% Peak

Energy Metering

Metering for DC outlets

Metering for DC outlets

Protection

OCP, OVP, UVL, Surge, DC Leakage

OCP, OVP, UVL,Surge, DC Leakage

INTERFACE AND CONTROL

Supported Charging Protocol

GB/CCS1/CCS2/CHAdeMO

GB/CCS1/CCS2/CHAdeMO

User Interface

7" LCD high-contrast touchscreen

7" LCD high-contrast touchscreen

BMS Communication

RS485

RS485

Communication

OCPP 1.6 Core and Smart Charging Profiles

OCPP 1.6 Core and Smart Charging Profiles

RFID System

ISO/IEC 14443A/B, ISO/IEC 15393, FeliCa™ 1, NFC reader mode

ISO/IEC 14443A/B, ISO/IEC 15393, FeliCa™ 1, NFC reader mode

Emergency Button

Yes

Yes

Protective Class

IP65 with external smart fan

IP65 with external smart fan

GENERAL

Operating Temperature Range (ºC)

0~55ºC

0~55ºC

Storage Temperature Range (ºC)

-20~70ºC

-20~70ºC

Reletive Humidity Range

0~95%

0~95%

Max. Altitude

Up to 2000m

Up to 2000m

Mounting

Free-standing cabinet

Free-standing cabinet

Dimension, D x W x H (mm)

220 x 700 x 1310

220 x 700 x 1310

Net Weight (kgs)

80

80

MODEL

EnergyCube 405

EnergyCube 405

BATTERY MODULE PARAMETERS

Battery Type

Lithium-Iron Phosphate Battery

Lithium-Iron Phosphate Battery

Nominal Voltage

409.6 VDC

409.6 VDC

Full Charge Voltage(FC)

460.8 VDC

460.8 VDC

Discharge Cut-off Voltage

384 VDC

384 VDC

Typical Capacity

50 Ah

50 Ah

Typical Energy

20KWH

20KWH

Max Continuous Discharging Current

60 A

60 A

Max Discharging Current

75 A

75 A

Charge Current

10 A

10 A

Max. Charge Power

10KW/25 A

10KW/25 A

Protection

BMS

BMS

Protective Class

IP20

IP20

Dimension, D x W x H (mm)

220 x 630 1600

220 x 630 1600

Net Weight (kgs)

221

221
