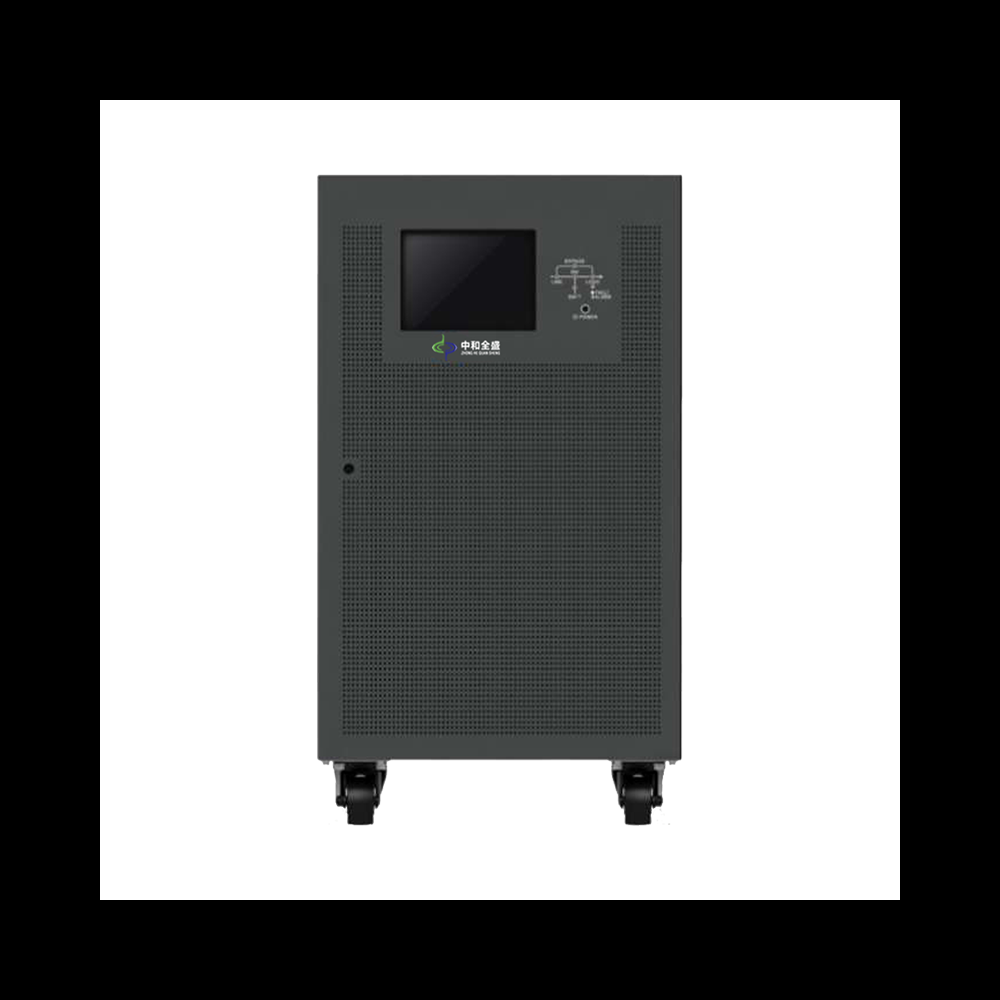

MODEL

EX3C3 10K

EX3C3 20K

EX3C3 30K

EX3C3 40K

EX3C3 60K

EX3C3 80K

EX3C3 100K

EX3C3 120K

EX3C3 180K

EX3C3 200K

phase position

3 phase input /3 phase output

capacity

10KVA/10KW

20KVA/20KW

30KVA/30KW

40KVA/40KW

60KVA/60KW

80KVA/80KW

100KVA/100KW

120KVA/120KW

180KVA/180KW

200KVA/200KW

Parallel quantity

6

INPUT

Input voltage

3x380/400/415VAC(3PH+N)

voltage range

110-300VAC,50%load;176-276VAC,100%load

Frequency range/power factor

40～70Hz/≥0.99 @100%load

Input current harmonic component(THDI)

Full linear load<3%

output

output voltage

3x360*/380/400/415VAC(3PH+N)

Voltage regulation accuracy (battery mode)

±1%

Frequency range (synchronization range)

46～54Hz or 56～64Hz

Frequency range (battery mode)

50/60 Hz±1%

Output current peak coefficient

3:1(max.)

Output waveform distortion degree

≤1%THD(linear load);≤3%THD(nonlinear load)

convert

time

AC to battery mode

0

Inverter to Bypass

0

Output waveform (battery mode)

pure sine wave

overload capacity

100-110%60min，111-125%10min，126%-150%1min；>150%400ms

Bypass

Voltage system/voltage range

3x380/400/415VAC(3PH+N)/-30%~+20%(adjustable)

Frequency range (synchronization range)

46～54Hz or 56～64Hz

overload capacity

>130%1min(default);Continuous operation until circuit breaker protection (optional)

Switchover time from inverter to bypass

synchronous mode：0ms ,Asynchronous mode：10ms

overload capacity

150%~180%1h~30s;180%~>200%30s~200ms;200ms for>200%

efficiency

AC/ECO /Battery Mode

96.0%

Battery

model/Number

16-20 adjustable

Depends on external battery (32-40 knots adjustable)/3×400V(3 phase +N wire

Charge current (Max)

1A~12A,adjustable

1A~12A,adjustable

2A~40A,adjustable

3 A ～ 6 0 A , adjustable

charging voltage

+/-13.65V*N(N=16～20)

display function

7 inch color touch LCD display panel

UPS status, load level, battery level, input/output voltage, discharge timer and fault conditions

physics

Dimension，DxWxH(mm)

592×250×576

815x300x1000

815x300x1000

1000×430×1200

1000×600×1200

Net weight (kg)

38

40

64

66

98

113

200

200

265

265

environment

Humidity

0-40°℃/<95%(Non-condensing)

Operating altitude

full load0～1500m

Noise Level

Less than 65dB @ 1 Meter

Less than 70dB @ 1 Meter

management

smart RS-232 / USB

Supports Windows°2000/2003/XP/Vista/2008,Windows07/8,Linux and MAC
