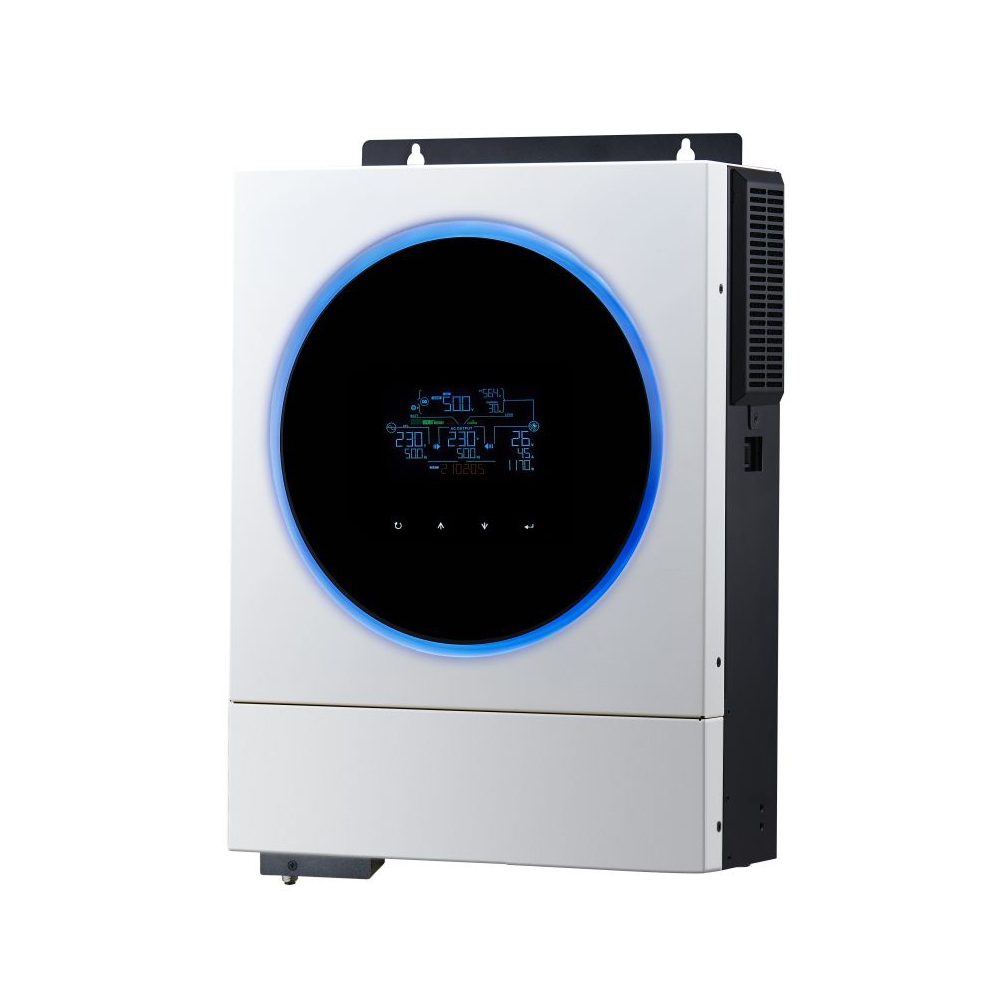

GTO-AX VM IV TWIN 4KW/6KW Dual output solar inverter

Dual output design for intelligent load management
The AX VM III TWIN is configured with two outputs for user-friendly intelligent load control. The second output can be timed on/off with LCD Settings to set the cut-off voltage or SOC and discharge time. The AX VM III TWIN is designed with a 27A PV input current, in line with the market trend of increasing Imp in solar panels. It also allows a wide PV input voltage range from 60VDC to 450VDC. These features can reduce the number of solar panels required for the system and save time.

Product Features

• Dual output for smart load management

• Maximum PV input current 27A

• Wide PV input voltage range 60VDC~450VDC

• Customizable status LED ring with RGB lights

• Touchable button with large 4.3" colored LCD

• Built-in Wifi for mobile monitoring (Android/iOS App available)

• Supports USB On-the-Go function

• Data log event stored in the inverter

• Reserved communication port (RS485, CAN-BUS or RS232) for BMS

• Battery independent design

• Battery equalization extends lifecycle

• Enhanced charging power

• Built-in anti-dust kit

MODEL	Axpert VM 4 TWIN 4K	Axpert VM 4 TWIN 6K
RATED POWER	4000VA/4000W	6000VA/6000W
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230VAC ± 10%
Surge Power	8000VA	12000VA
Efficiency (Peak)	90% ~ 93%
Transfer Time	10 ms (For Personal Computers) 20 ms (For Home Appliances)
Waveform	Pure sine wave
BATTERY
Battery Voltage	24 VDC	48 VDC
Floating Charge Voltage	27 VDC	54 VDC
Overcharge Protection	33 VDC	63 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger type	MPPT
Maximum PV Array Power	5000W	6000W
MPP Range @ Operating Voltage	60 ~ 450 VDC	60 ~ 450 VDC
Maximum PV Array Open Circuit Voltage	500 VDC	500 VDC
Maximum PV Input Current	27A
Maximum Solar Charge Current	120A	120A
Maximum AC Charge Current	100A	100A
Maximum Charge Current	120A	120A
PHYSICAL
Dimension, D x W x H (mm)	119 x 313.6 x 457.5
Net Weight (kgs)	10	12
Communication Interface	USB/RS232/RS485/WiFi/Dry-contact
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C
