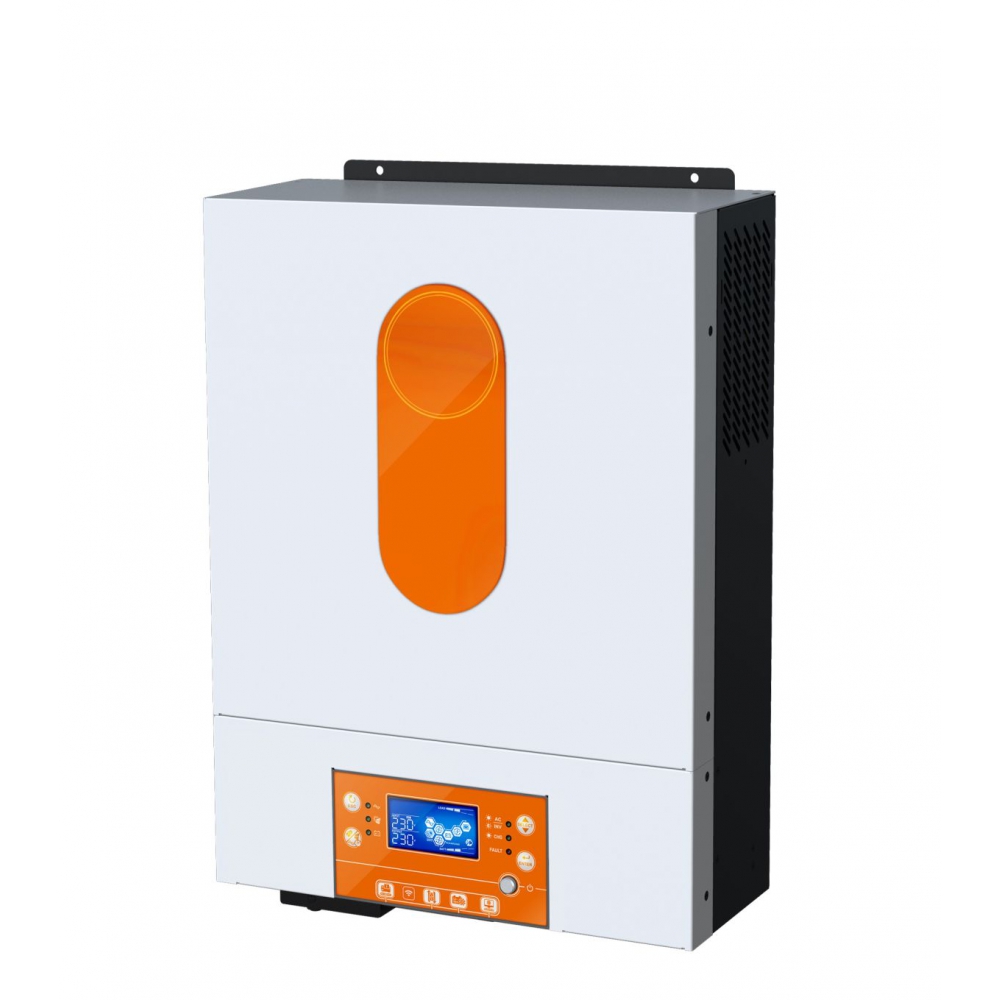

GTO-AX VM III TWIN 4KW/6KW Dual output solar inverter
  • GTO-AX VM III TWIN 4KW/6KW Dual output solar inverter
  • GTO-AX VM III TWIN 4KW/6KW Dual output solar inverter
  • GTO-AX VM III TWIN 4KW/6KW Dual output solar inverter

GTO-AX VM III TWIN 4KW/6KW Dual output solar inverter

Dual output design for intelligent load management
The AX VM III TWIN is configured with two outputs for user-friendly intelligent load control. The second output can be timed on/off with LCD Settings to set the cut-off voltage or SOC and discharge time. The AX VM III TWIN is designed with a 27A PV input current, in line with the market trend of increasing Imp in solar panels. It also allows a wide PV input voltage range from 60VDC to 450VDC. These features can reduce the number of solar panels required for the system and save time.

Product Features

• Detachable LCD control module with various communications

• Maximum PV input current 27A

• Dual output for smart load management

• Built-in WiFi for mobile monitoring (App is available)

• Supports USB On-the-Go function

• Reserved communication port (RS485, CAN-BUS or RS232) for BMS

• Battery independent design

• Battery equalization extends lifecycle

• User-friendly LCD operation

• Replaceable fan design for ease of maintenance

    MODEL

    Axpert VM III TWIN 4K

    Axpert VM III TWIN 6K

    RATED POWER

    4000VA/4000W

    6000VA/6000W

    INPUT

    Voltage

    230 VAC

    Selectable Voltage Range

    170-280 VAC (For Personal Computers)

    90-280 VAC (For Home Appliances)

    Frequency Range

    50 Hz/60 Hz (Auto sensing)

    OUTPUT

    AC Voltage Regulation (Batt. Mode)

    230VAC ± 10%

    Surge Power

    8000VA

    12000VA

    Efficiency (Peak)

    90% ~ 93%

    Transfer Time

    10 ms  (For Personal Computers)

    20 ms (For Home Appliances)

    Waveform

    Pure sine wave

    BATTERY

    Battery Voltage

    24 VDC

    48 VDC

    Floating Charge Voltage

    27 VDC

    54 VDC

    Overcharge Protection

    33 VDC

    63 VDC

    SOLAR CHARGER & AC CHARGER

    Solar Charger type

    MPPT

    Maximum PV Array Power

    5000W

    6000W

    MPP Range @ Operating Voltage

    60 ~ 450 VDC

    60 ~ 450 VDC

    Maximum PV Array Open Circuit Voltage

    500 VDC

    500 VDC

    Maximum PV Input Current

    27A

    Maximum Solar Charge Current

    120A

    120A

    Maximum AC Charge Current

    100A

    100A

    Maximum Charge Current

    120A

    120A

    PHYSICAL

    Dimension, D x W x H (mm)

    115 x 300 x 435

    Net Weight (kgs)

    9

    10

    Communication Interface

    USB/RS232/RS485/WiFi/Dry-contact

    OPERATING ENVIRONMENT

    Humidity

    5% to 95% Relative Humidity (Non-condensing)

    Operating Temperature

    -10°C to 50°C

    Storage Temperature

    -15°C to 60°C
