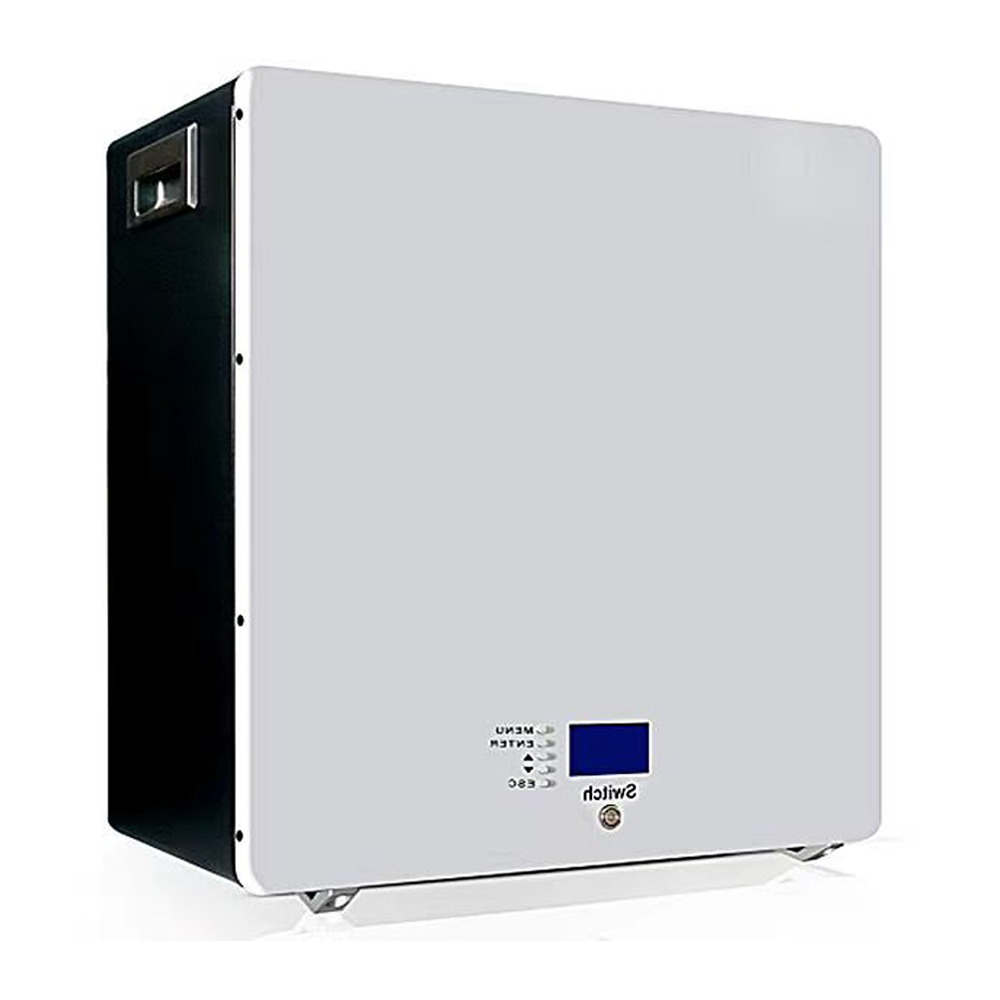

51.2V 200Ah 10.24kwh Power Wall Lithium Battery

FEATURES

Long Cycle Life: 6000 times,service more than10 years.

High Power: Support long-term charging and discharging of 1C

Physicalcharacteristics: Smallsize, lightweight, thin thickness

Installation mode: Wall mounted, hanging on thewall together with inverter and control to form aharmonious environment; The left and right sidesof the battery and the panel are equipped withhandles for easy installation and handling.

Safety: Level 4 protection, cell protection, BMSprotection,inverterprotection,air switchprotection, grounding protection.

Communication: The battery supports the communication protocol of 90% inverter manufacturers on the market.

APPLICATION
*Solar / Wind energy storage system

*Community / Villa / Residential / Hospital / School / Gymnasium etc.

SPECIFICATIONS

Electrical Specifications	Nominal Voltage	51.2V
	Nominal Capacity	200Ah (C5,25℃)
	Nominal Energy	10.24kwh
	Combination Method	3.2V100AH-16S2P
	Cycle Life	>6000 cycles 25℃ 0.2C/0.2C 70%DOD
	Months Self Discharge	<3%
	Eﬃciency of Charge	100% 25℃ 0.2C
	Eﬃciency of Discharge	96~99% 25℃1C
Charge Specifications	Recommended Charging Voltage	58.4V
	Recommended Charging Current	40A
	Max. Charging Current	150A
Discharge Specifications	Recommended Discharging Current	40A
Discharge Specifications	Discharge Cut-oﬀ Voltage	40V
Temperature Specifications	Charge Temperature	0 ℃ to 45 ℃ (32F to 113F)
	Discharge Temperature	‘-20 ℃ to 60 ℃ (-4F to 140F)
	Storage Temperature	0 ℃ to 40 ℃ (32F to 104F)
Mechanical Specifications	Install method	Wall mounted
	Shell material	Steel
	Dimensions ( mm. )	520633285 mm
	Weight ( lbs. /kg. ）	88.5Kg
	Protocol	RS485/CAN (SNMP/Modbus/RS232 Optional)

TYPICAL LITHIUM IRON PHOSPHATE CHARACTERISTICS

WARNING TIPS！！！

* Do NOT short circuit, crush or disassemble.
* Do NOT heat or incinerate.
* Do NOT allow the battery to become over discharged. If possible, isolate the battery when not in use.
* Do NOT leave the battery in a discharged state. Always recharge after use with LiFePO4 battery charger.
* Store at 50% capacity. Recharge every 3-6 months. The storage area should be clean, cool, dry and ventilated.
* Maximum 8 units in parallel connections.
