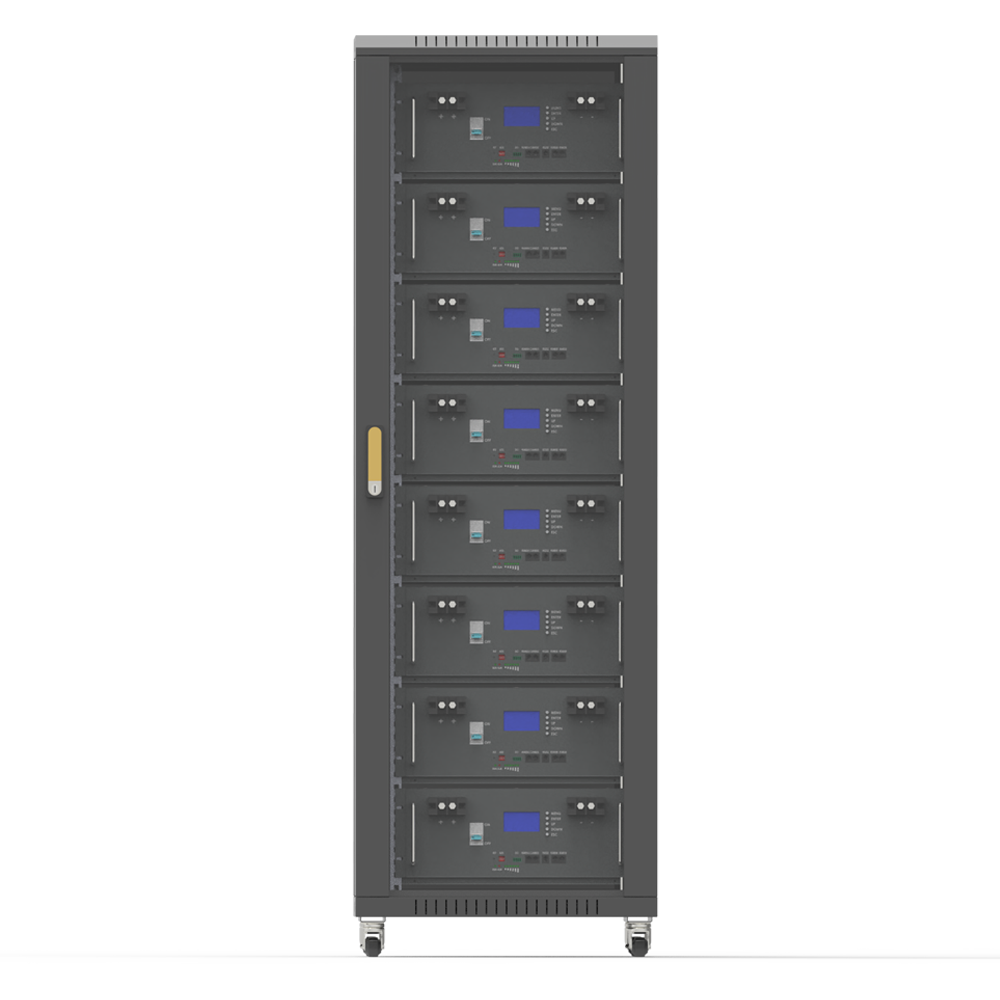

358.4V 100AH 35.84KWH Rack-mount LiFePO4 Battery cabinet for industry

PRODUCT INTRODUCTION
LFP-Rack box, a Low-voltage lithium battery. With a scalable modular design, the capacityrange can be expanded from 5.12kWh to 51.2kWh. The modules are connected by cablesto support high-power work and are easy to install and maintain. Long life technologyensures more than 6000 cycles with 90% DOD.

MODEL	TH-R-HV20	TH-R-HV25	TH-R-HV30	TH-R-HV35
Cell chemistry	LiFepo4
Module energy(kwh)	5.12
Modulenominal voltage(V)	51.2
Module capacity(Ah)	100
Cell model/Configuration	3.2v100AH/64SIP	3.2v100AH/80SIP	3.2v100AH/96SIP	3.2v100AH/112SIP
System nomial voltage(V)	204.8	256	307.2	358.4
System operating voltage(V)	185.6~227.2	232~284	278.4~340.8	324.8~397.6
System energy(kwh)	20.48	25.6	30.72	35.84
RecommendCharge/Discharge Current(A)	50
MaxCharge/Discharge Current(A)	100
Working temperature	Charge:0℃~50℃；Discharge:-20℃~55℃
Communication port	CAN2.0/RS485/WiFi
Humidity	5~80%RH Humidity
Altitude	≤2000m
IP	IP20
Dimension WDH(mm)	538492791	538492941	5384921091	5384921241
Weight approximate(kg)	195	240	285	330
Installation location Storage	Rack Mounting
Storage temperature(℃）	0℃~35℃
Recommend depth of discharge	90%
Cycle life	25±2℃，0.5C/0.5C,EOL70%≥6000
