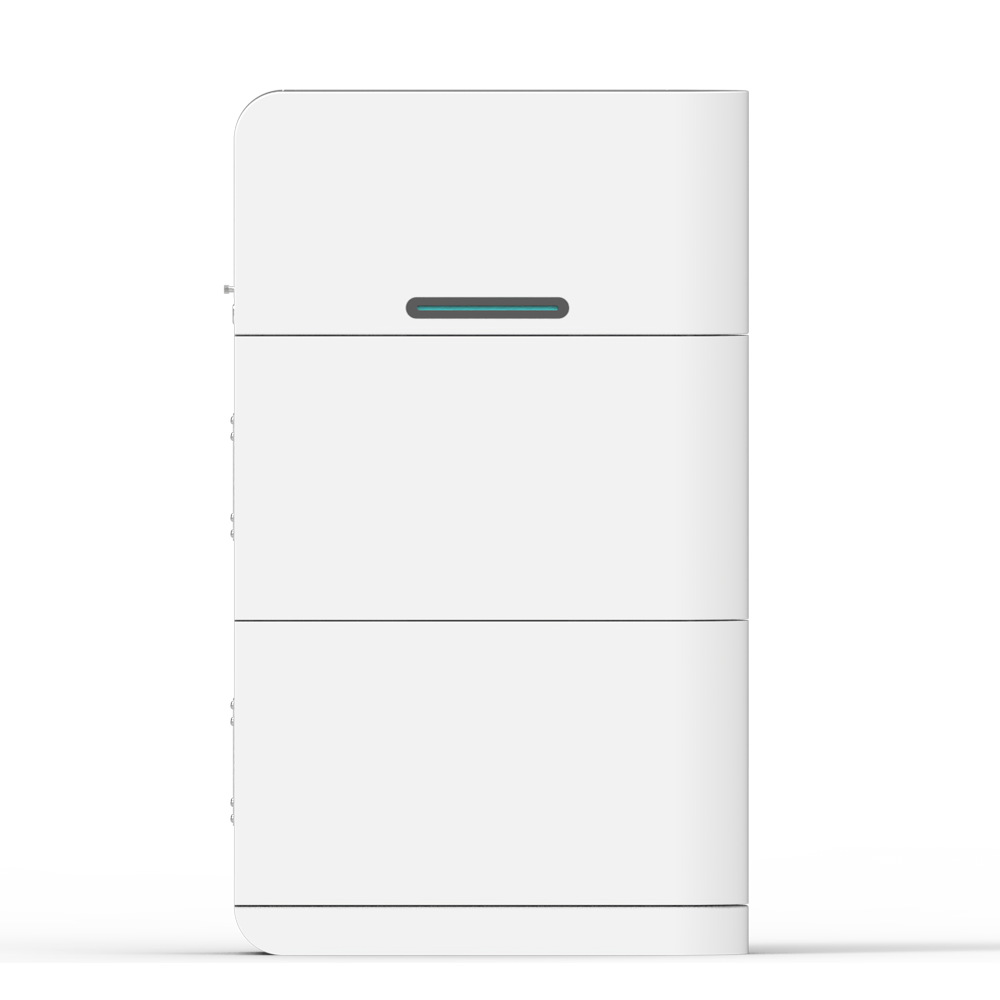

10.24KWh China HV Stack Battery Series with BMS Protection

PRODUCT INTRODUCTION
convenient：Stackable &compact design ease of installation
Compatible：Compatible with multiple inverters Multiple communication
Compliant：Ip65 Protection indoor or outdoor application
Scalable：Use of Series connection from 2 to 5 modules
Sufficient：High energy density110wh/kg
Safe：Multiple protection LiFePO4 material, safe and long life

PERFORMANCE SPECIFICATIONS
Model	TH-20450-SP	TH-30750-SP		TH-40950-SP			TH-51250-SP
Nominal Voltage	204.8V(64series)	307.2V196series)		409.6V(128series)			512V(160series)
Cell model/Configuration	3.2V50Ah(ANC)/32S1P/102.4V50Ah/5.12KWh
Capacity(Ah)	50AH
Rated Energy(KwH)	10.24KWh	15.36KWh		20.48KWh			25.6Kwh
Usable Energy(KwH)	9.21KWh	13.82KWh		18.43KWh			23.04KWh
Max.Charge/DischargeCurrent(A)	25A /50A
Voltage Range(vdc)	180-228V		270-340V		350-450V	440-560V
Scalability	Up to 4 parallel
Communieation	RS232-PC,RS485-Inverter.Canbus-Inverter
Cycle Life	≥6000cycles@25℃℃，90%DOD，60%EOL
Design Life	≥15 Years(25°C)
MECHANICAL SPECIFICATIONS
Weight(Approx)(KG)	Approx:130kg		Approx:180kg		Approx:230kg	Approx:280kg
Dimension (w/D/H)(mm)	636185 1065		6361851418		6361851770	6361852122
Installation Mode	Stack
IP Grade	Ip65
SECURITY AND CERTIFICATION
Safety(Pack)	UN38.3,MSDS,IEC626191CB),CE-EMC
Safety(Cell)	UN38.3,MSDS,IEC62619.CE,UL1973.UL2054
Protection	BMS,Breaker
ENVIRONMENTAL SPECIFICATIONS
Dperating Temperature(°C)	Charge:-10℃~50℃℃;Discharge:-20°℃-50C
Altitude (m)	≤2000
Humidity	≤95%(Non-condensing)
