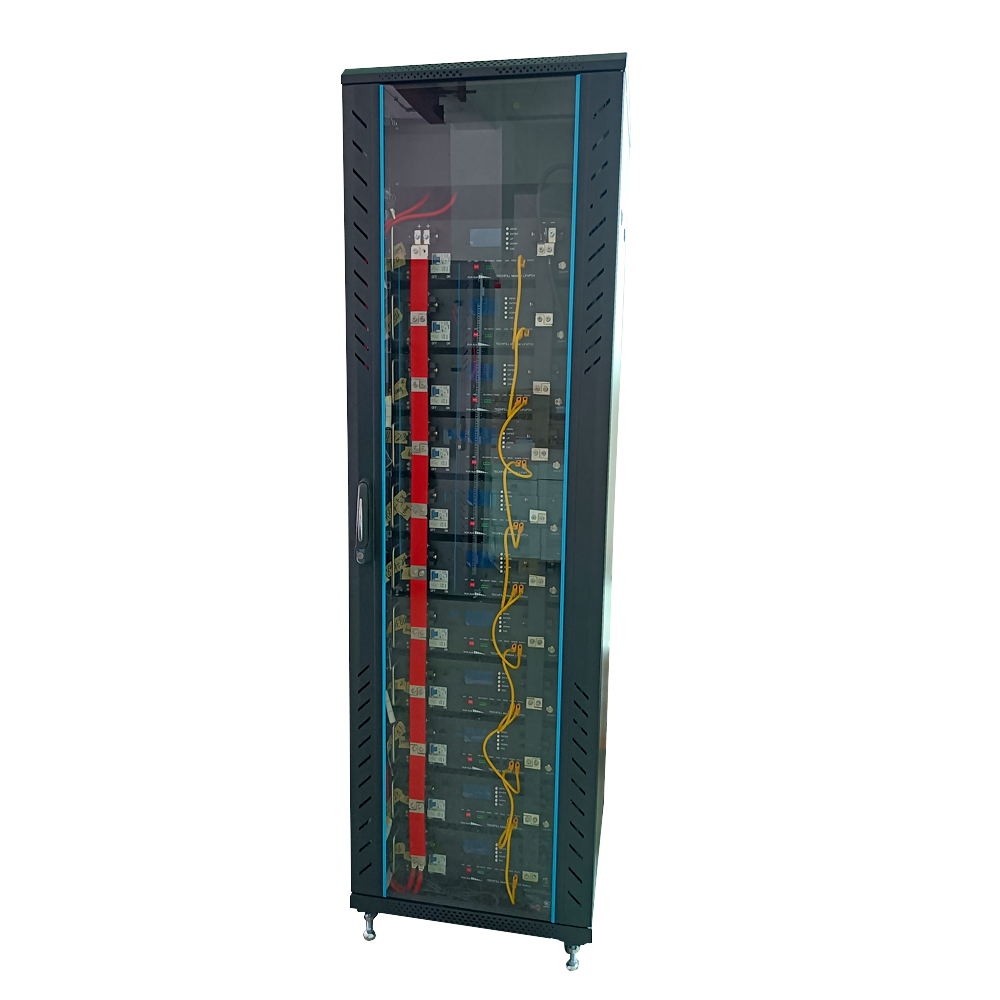

460.8V 100AH 46.08KWH Rack-mount LiFePO4 Battery cabinet for energy system

PRODUCT INTRODUCTION
LFP-Rack box, a Low-voltage lithium battery. With a scalable modular design, the capacityrange can be expanded from 5.12kWh to 51.2kWh. The modules are connected by cablesto support high-power work and are easy to install and maintain. Long life technologyensures more than 6000 cycles with 90% DOD.

MODEL	TH-R-HV40	TH-R-HV46	TH-R-HV51
Cell chemistry	LiFepo4
Module energy(kwh)	5.12
Modulenominal voltage(V)	51.2
Module capacity(Ah)	100
Cell model/Configuration	3.2v100AH/128SIP	3.2v100AH/144SIP	3.2v100AH/160SIP
System nomial voltage(V)	409.6	460.8	512
System operating voltage(V)	371.2~454.4	417.6~511.2	464~568
System energy(kwh)	40.96	46.08	51.2
RecommendCharge/Discharge Current(A)	50
MaxCharge/Discharge Current(A)	100
Working temperature	Charge:0℃~50℃；Discharge:-20℃~55℃
Communication port	CAN2.0/RS485/WiFi
Humidity	5~80%RH Humidity
Altitude	≤2000m
IP	IP20
Dimension WDH(mm)	5384921391	5384921541	5384921691
Weight approximate(kg)	375	420	465
Installation location Storage	Rack Mounting
Storage temperature(℃）	0℃~35℃
Recommend depth of discharge	90%
Cycle life	25±2℃，0.5C/0.5C,EOL70%≥6000
