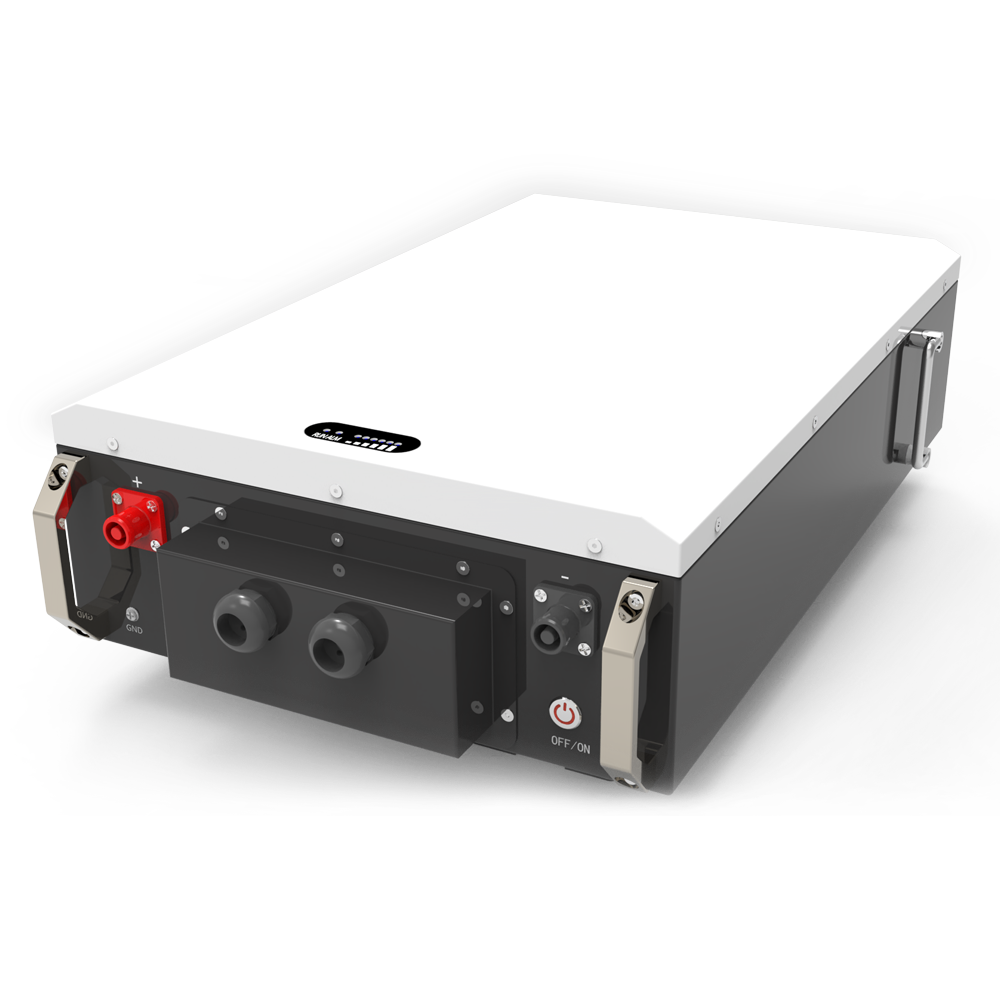

48V 100AH 4.8KWH High charge rate Wall-mounted LiFePO4 battery

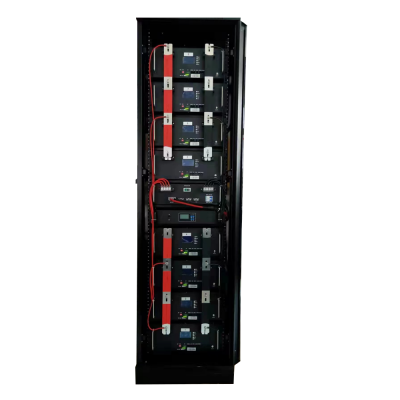

Flexible Investment:5kWh/10kWh modular design scalable from 5 to 150 kWh
TUV Certifcation:Battery lEC/ UL standard
Fast Installation:Plug & Play battery interface
Perfect Compatibility:Compatible to most inverter brands on the market
Safety:BMS & Breaker two Level over current protection
Fast Charge:High charge/ Discharge rate supporting safety1C fast charge/ Discharge

MODEL	TG-PW-48100	TG-PW-48200	TG-PW-51100	TG-PW-51200
Electrical Characteristics
Rate voltage(Vdc)	48		51.2
Cell combination	15SIP	15S2P	16SIP	16S2P
Rate capacity(AH)	100	200	100	200
Energy storage(kwH)	4.8	9.6	5.12	10.24
Cycie life	25+2C，0.5C/0.5C，EOL70%>6000
Charge/Discharge Standard
Chargc voltage(V)	52.5		56
Max. charge current(A)	100(Optional 150/200A.for 200AH pack)
Max. discharge curent(A)	100 (Optional 150/200A for 200AH pack)
Discharge cut-off votage(VDC)	40.8		43.2
Charge cut-off voltage(VDC)	54.75		58.4
Enviornment
Charge temperature	0‘C ~ 50"C@60 + 25% Relative Humidity
Discharge temperature	-20C ~ 50‘C@60 + 25% Relative Humildity
Storage temperature	-20‘C~ 50‘C@60 + 25% Relative Humidity
Mechanical
lP class	IP20(iP65 Option avallable for 100AH model)
Material system	LiFePO4
Case material	Metal
Case type	Wall Mount
Product dimension L*w"H(mm)	580390185	690485226	580390185	690485226
Packoge dimension L"w*H(mm)	660450240	850570285	660450240	850570285
Net weight(kg)	42	85	44	88
Gross weight(kg)	47	95	49	98
Communication
Protocal(Optional)	CAN/RS485/RS232
Monitoring	Bluctooth/WLAN Optional
Certificates
Pack	UN38.3, MSDS	CE/IEC/UL1973	CE/UN38.3/MSDS	UN38.3, MSOS
Cell	UN38.3, MSDS, IEC62619, CE,ULI973, UL2054
