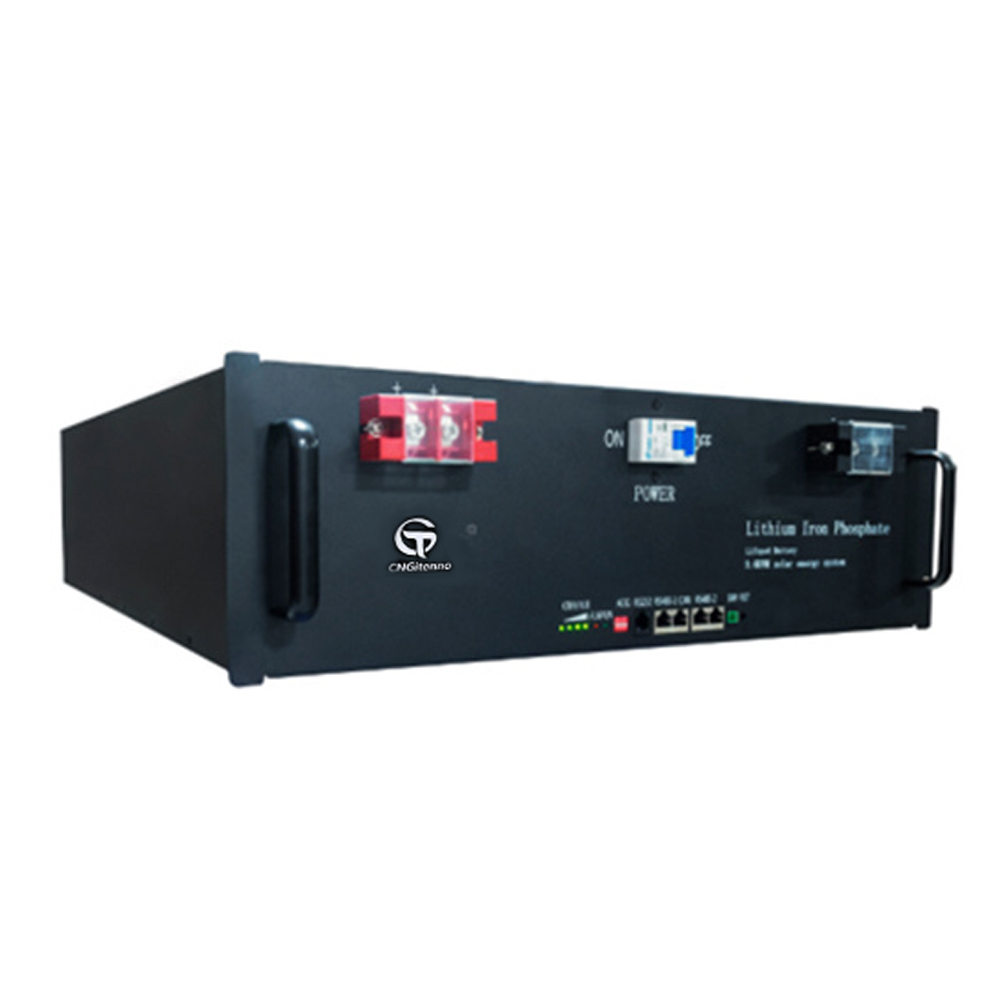

51.2V100AH 5120kwh IP21 Rack Type Lithium Battery

FEATURES

Long Cycle Life: The service life of LiFePO4 battery is nearly 10 times that of lead-acid battery,with much higher comprehensive use value.

Modular design: The rack type battery with Standard 19 inch cabinet design.

High Power: Multiple batteries in series or in parallel are available to achieve higher capacity, charging and discharging current. Max. 8 in parallel are supported.

4 protection design: cell protection, BMS protection, air switch protection, grounding protection.
APPLICATION

*Solar/Wind energy storage system

*Telecommunication

*Residential/Hospital/School/Factory standby power

*Electric power systems

SPECIFICATIONS
Electrical Specifications	Nominal Voltage	51.2V
	Nominal Capacity	100Ah (C5,25℃)
	Energy	5120kwh
	Use Period	>10 Years (C5,25℃)
	Cycle Life	>6000 times (25℃, 0.2C/0.2C 70% DOD)
	Efficiency of Charge	100% (25℃ 0.2C)
	Efficiency of Disharge	96~99% (25℃ 1C)
	Number of Expandable batteries	8pcs
Charge Specifications	Recommended Charging Current	20A
	Max Charging Current	100A
	Charge voltage	58.4V
Discharge Specifications	Recommended Discharging Current	10A
	Max Disharging Current	100A
	Discharge Cut-oﬀ Voltage	40V
Temperature Specifications	Charge Temperature	0℃~40℃
	Discharge Temperature	-20℃~60℃
	Recommended Operating Temperature	25℃
Mechanical Specifications	Install method	Racked
	Shell material	Steel
	Dimensions ( mm. )	483550177mm
	Weight (kg)	47kgs
	IP Grade	IP21
Communication	RS485/RS232/CAN

TYPICAL LITHIUM IRON PHOSPHATE CHARACTERISTICS

WARNING TIPS！！！

* Do NOT short circuit, crush or disassemble.
* Do NOT heat or incinerate.
* Do NOT immerse in any liquid.
* Do NOT allow the battery to become over discharged. If possible, isolate the battery when not in use.
* Do NOT leave the battery in a discharged state. Always recharge after use with LiFePO4 battery charger.
* Store at 50% capacity. Recharge every 3-6 months. The storage area should be clean, cool, dry and ventilated.
* Please read instruction manual before installation.
