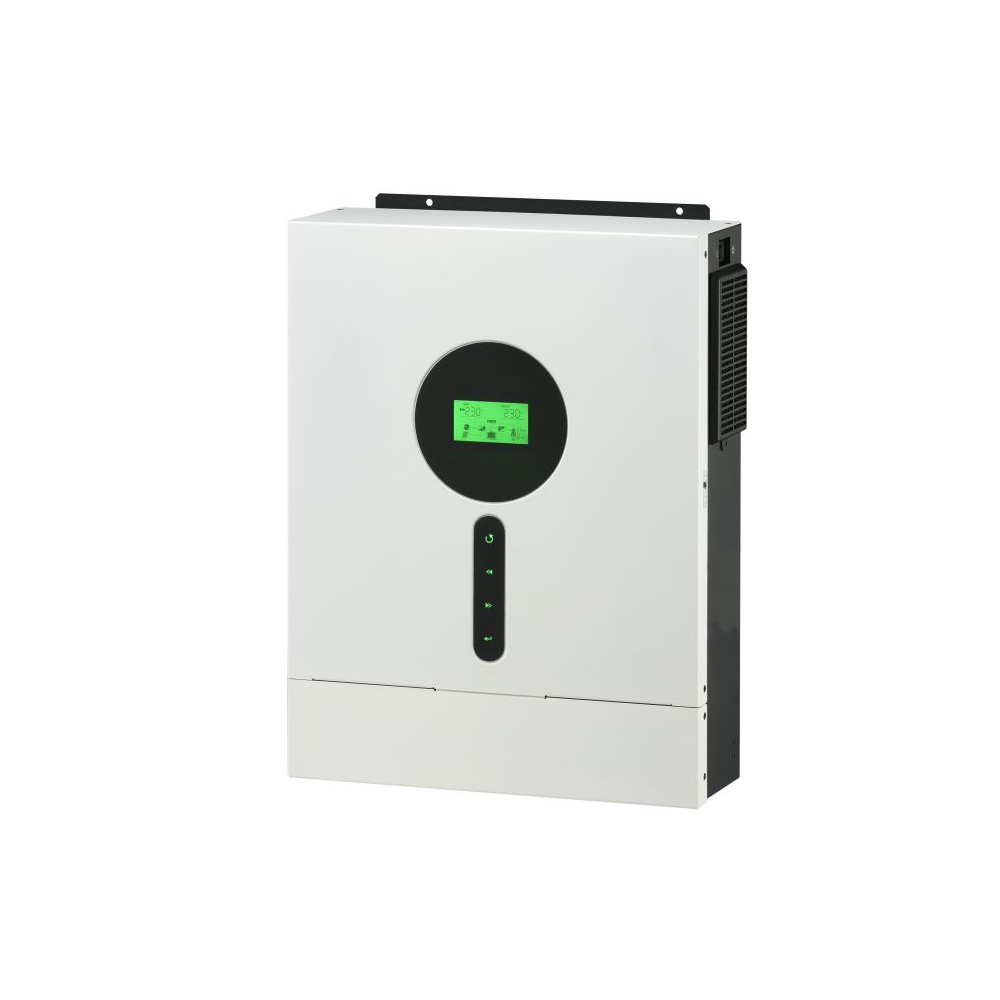

GTO-Ax VM II TWIN 3.6KW/5.6KW Dual output off-grid inverter

Wide photovoltaic input voltage range and built-in 120A MPPT solar charger

This is a multi-functional inverter/charger that combines functions such as an inverter, solar charger and battery charger to provide stable AC power to load equipment. Provides user LCD display and push-button operation for simple Settings, such as battery charging current,AC/ solar charger priority and load output priority setting.
Product Features

• Dual outputs, for smart load management

• Maximum PV input current increases to 27A

• Wide PV input voltage range 60VDC ~ 450VDC

• Battery independent design

• Built-in 120A MPPT solar charger

• Battery equalization function to optimize battery performance and extend lifecycle

MODEL	Axpert VM II TWIN 3.6K	Axpert VM II TWIN 5.6K
RATED POWER	3600VA/3600W	5600VA/5600W
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230VAC ± 5%
Surge Power	7200VA	11200VA
Efficiency (Peak)	93%
Transfer Time	10 ms (For Personal Computers) 20 ms (For Home Appliances)
Waveform	Pure sine wave
Dual Outputs	Yes
BATTERY
Battery Voltage	24 VDC	48 VDC
Floating Charge Voltage	27 VDC	54 VDC
Overcharge Protection	33 VDC	63 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger type	MPPT
Maximum PV Array Open Circuit Voltage	500 VDC
Maximum PV Array Power	5000W	6000W
Maximum PV Input Current	27A	27A
MPP Range @ Operating Voltage	60-450 VDC	60-450 VDC
Maximum Solar Charge Current	120A	120A
Maximum AC Charge Current	100A	100A
Maximum Charge Current	120A	120A
PHYSICAL
Dimension, D x W x H (mm)	107 x 322.6 x 420.3
Net Weight (kgs)	9.5	10.5
Communication Interface	USB/RS-232
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C
