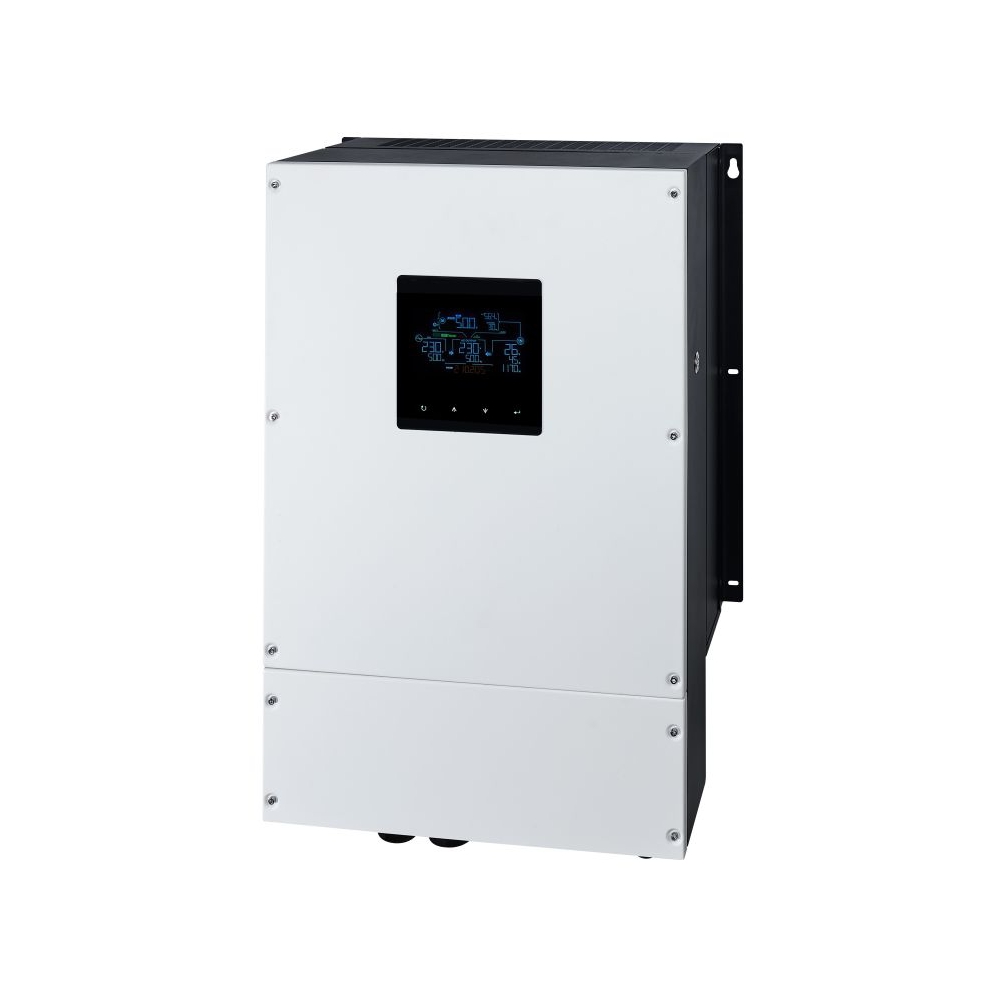

GTO-Ax WP TWIN 8KW Dual output inverter，IP65 protection rating

Dual output design for intelligent load management & with IP65 protection rating
The Ax WP TWIN off-grid inverter with IP65 protection provides an ideal solution for dusty and rainy regions with water and dust resistance that can adapt to changing climates. The Ax WP TWIN has two outputs. The second output can be timed on/off with LCD Settings to set the cut-off voltage or SOC and discharge time.
PRODUCT FEATURES

• IP65 waterproof and dustproof makes the inverter available for various working conditions

• Dual outputs, for smart load management

• Reserved communication port for BMS (RS485, CAN-BUS or RS232)

• Replaceable fan design for ease of maintenance

• Battery independent design

• Configurable AC/PV output usage timer and prioritization

• Selectable high power charging current

• Selectable input voltage range for home appliances and personal computers

• Compatible to Utility Mains or generator input

• Parallel operation up to 6 units

MODEL	Axpert WP TWIN 8K
RATED POWER	8000VA/8000W
PARALLEL CAPABILITY	YES, 6 units
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Computers) 90-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230VAC ± 5%
Surge Power	16000VA
Efficiency (Peak)	93%
Transfer Time	10 ms (For Personal Computers), 20 ms (For Home Appliances)
Waveform	Pure sine wave
No Load Power Consumption	< 85W
BATTERY
Battery Voltage	48 VDC
Floating Charge Voltage	54 VDC
Overcharge Protection	66 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type	MPPT
Maximum PV Array Power	8000W (4000W x 2)
MPPT Range @ Operating Voltage	90 ~ 450 VDC
Maximum PV Array Open Circuit Voltage	500 VDC
Maximum PV Input Current	18 A x 2
Maximum Solar Charge Current	150 A
Maximum AC Charge Current	120 A
Maximum Charge Current	150 A
PHYSICAL
Dimension, D x W x H (mm)	210 x 435 x 665
Net Weight (kgs)	32
Communication Interface	USB/RS-232/Dry Contact/RS485/WiFi/BMS
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C
STANDARD
Compliance Safety	CE
