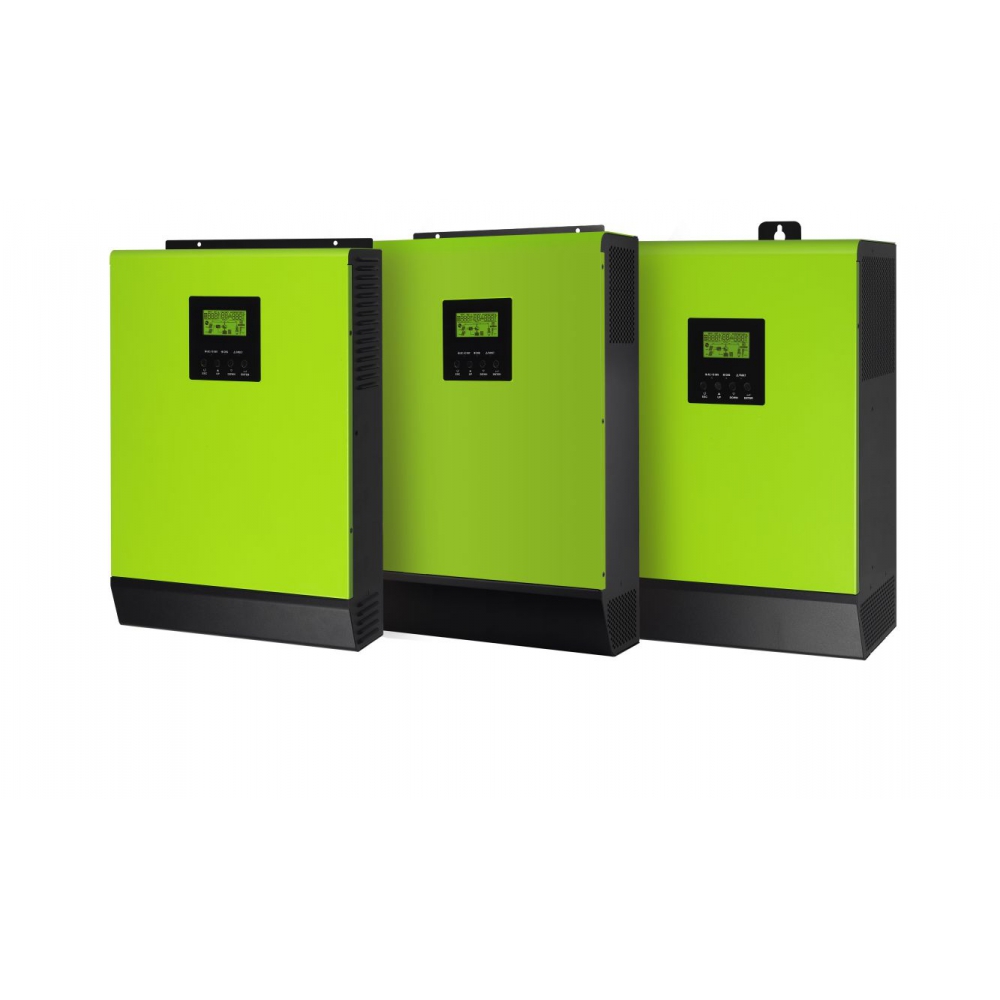

GTO-IS V This simple solar inverter is designed to power your home appliances or valuable 3C electronic devices.

With self-use and feedback power function

This simple solar inverter is designed to power your home appliances or valuable 3C electronic devices. It can also handle motor loads with high surge power, such as vacuum cleaners, small freezers or drilling RIGS. A built-in solar charger converts solar energy to battery power and provides continuous power to connected devices at night.
Product Features

• Pure sine wave output

• Programmable supply priority for PV, Battery or Grid

• User-adjustable charging current and voltage

• Programmable multiple operation modes: Grid-tie (with battery connected), off-grid and grid-tie with backup

• Monitoring software for real-time status display and control

• Parallel operation up to 9 units only for 3K/4K/5K models

MODEL	InfiniSolar V-1K-12	InfiniSolar V-2K-24	InfiniSolar V-3K-48	InfiniSolar V-4K-48	InfiniSolar V-5K-48
Max. PV Array Power	1000W	2000W	4000W	4000W	6000W
Rated Output Power	1000W	2000W	3000W	4000W	5000W
Maximum PV Array Open Circuit Voltage	145 VDC	145 VDC	145 VDC	145 VDC	145 VDC
MPPT Range @ Operating Voltage	15 VDC ~ 115 VDC	30 VDC ~ 115 VDC	60 VDC ~ 115 VDC	60 VDC ~ 115 VDC	60 VDC ~ 115 VDC
MPP Tracker Number	1	1	1	1	2
GRID-TIE OPERATION
GRID OUTPUT (AC)
Nominal Output Voltage	220/230/240 VAC
Output Voltage Range	184 - 264.5 VAC or 195.5 - 253 VAC (Selectable)
Nominal Output Current	4.3 A	8.7 A	13 A	17.4 A	21.7 A
Power Factor	> 0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC)	90%
OFF-GRID, HYBRID OPERATION
GRID INPUT
Acceptable Input Voltage Range	90 - 280 VAC or 170 - 280 VAC
Frequency Range	50 Hz/60 Hz (Auto sensing)
Maximum AC Input Current	10A	20A	40A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage	220/230/240 VAC
Output Waveform	Pure sine wave
Efficiency (DC to AC)	93%
BATTERY & CHARGER
Nominal DC Voltage	12 VDC	24 VDC	48 VDC	48 VDC	48 VDC
Maximum Solar Charge Current	80 A	80 A	80 A	80 A	120 A
Maximum AC Charge Current	60 A
Maximum Charge Current	140 A	140 A	140 A	140 A	180 A
GENERAL
PHYSICAL
Dimension, D x W x H (mm)	100 x 300 x 440	100 x 300 x 440	120 x 295 x 468	120 x 295 x 468	190 x 295 x 483
Net Weight (kgs)	8	8	11	11	16
INTERFACE
Parallel Function	N/A	N/A	Yes	Yes	Yes
External Safety Box (Optional)	Yes
Communication Ports	USB or RS232/Dry-Contact
ENVIRONMENT
Humidity	0 ~ 90% RH (Non-condensing)
Operating Temperature	0 to 50°C
