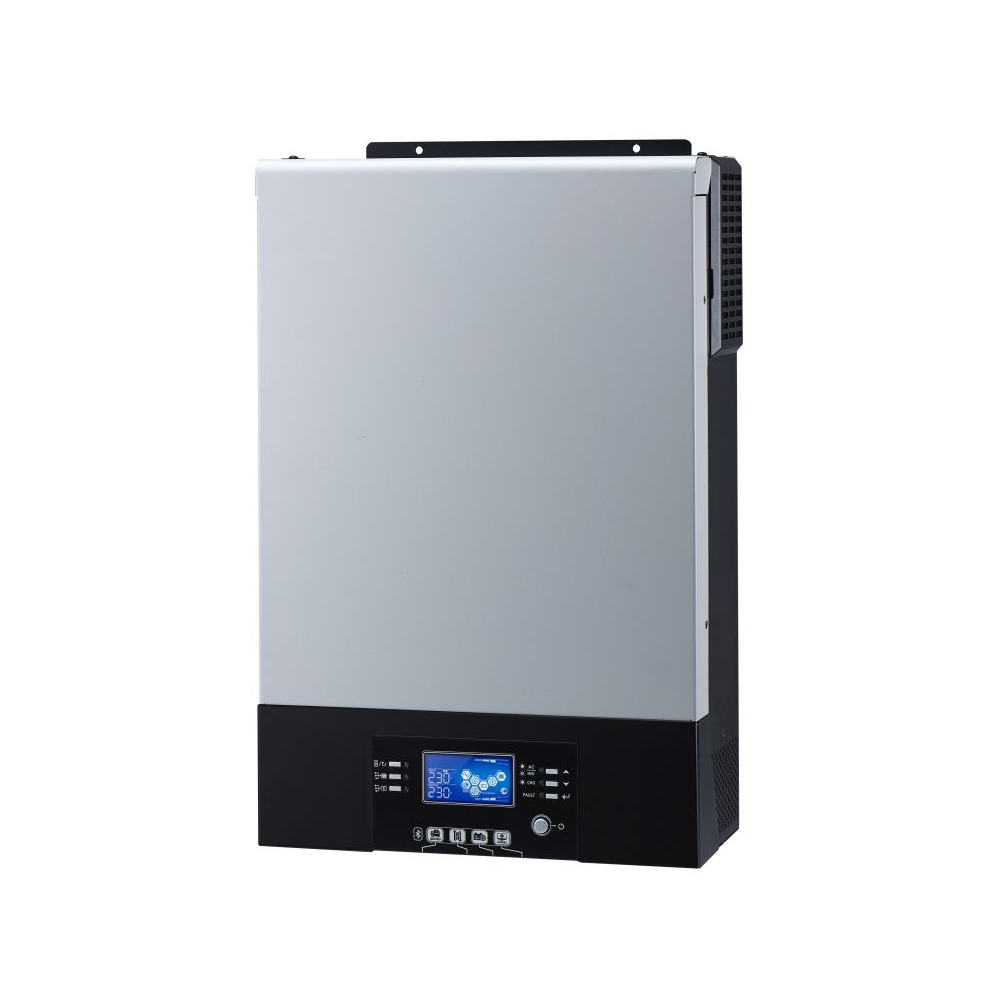

GTO-Ax MKS III TWIN 6KW Dual outputs，with the MPPT solar charging controller

MPPT solar charger
The AX MKS is equipped with the MPPT solar charging controller, which optimizes the maximum power output of the solar panel, and improves the minimum size and reliable power conversion for battery pack charging in a transformerless design. In addition, it can start motor loads such as refrigerators, motors, pumps, compressors, and power loads such as televisions, computers, power tools, and battery chargers.
PRODUCT FEATURES

• Maximum PV input current 27A

• Dual outputs for smart load management

• Detachable LCD control module with multiple communications

• Wide DC input range

• Built-in WiFi for mobile monitoring (App is avaiable)

• Supports USB On-the-Go function

• Reserved communication port for BMS (RS485)

• Smart battery charger design for optimized battery performance

• Battery independent function

• Parallel operation up to 9 units

MODEL	Axpert MKS III TWIN 6K
RATED POWER	6000VA/6000W
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230 VAC ± 5%
Overload Capacity	5s@≥150% load; 10s@110%~150% load
Efficiency (Peak)	90%
Transfer Time	10 ms (For Personal Computers) 20 ms (For Home Appliances)
Waveform	Pure sine wave
BATTERY
Battery Voltage	48 VDC
Floating Charge Voltage	54 VDC
Overcharge Protection	66 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type	MPPT
Maximum PV Array Power	6000W
MPPT Range @ Operating Voltage	120 ~ 430 VDC
Maximum PV Array Open Circuit Voltage	500 VDC
Maximum PV Input Current	27A
Maxmum Solar Charge Current	120 A
Maximum AC Charge Current	120 A
Maximum Charge Current	120 A
PHYSICAL
Dimension, D x W x H (mm)	140 x 295 x 468
Net Weight (kgs)	12.0
Communication Interface	USB, RS232, RS485, WiFi
ENVIRONMENT
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C
