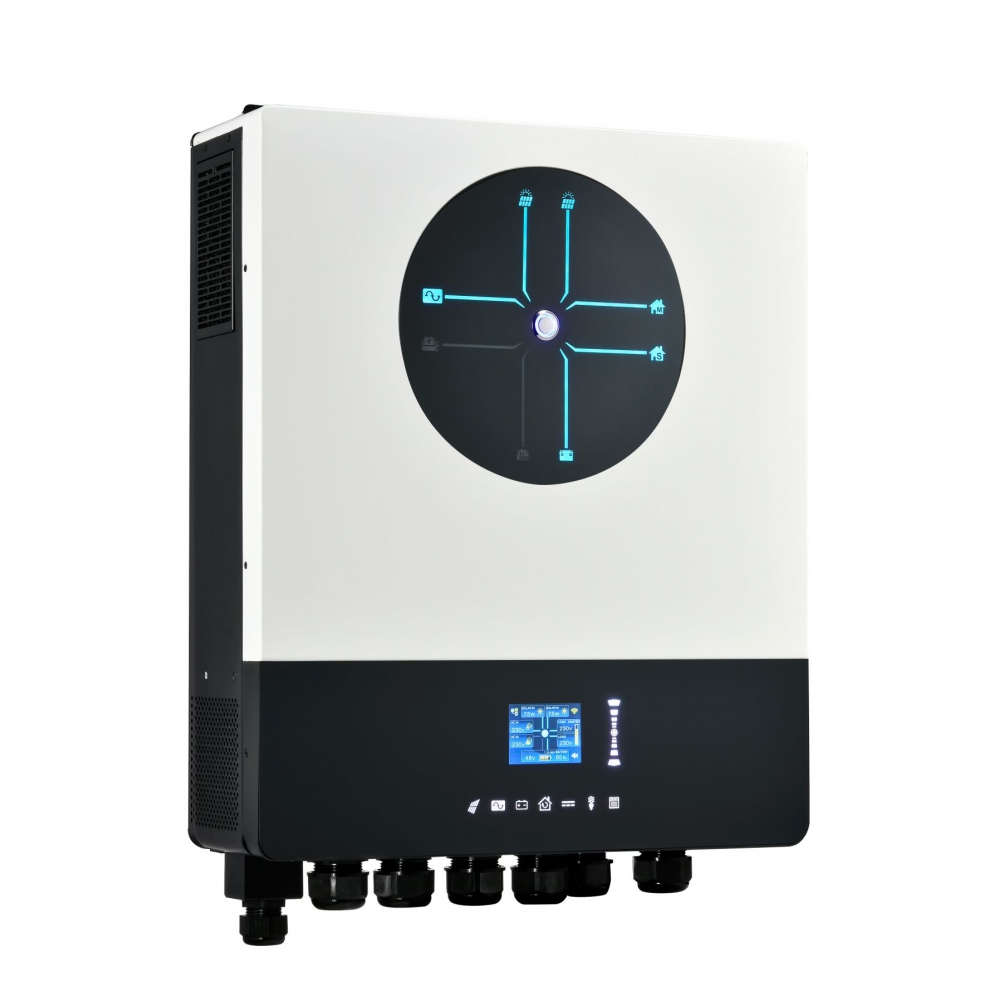

GTO-Ax Ultra 8KW/11KW Intelligent double input and double output

Intelligent double input and double output

With 2 inputs, 2 smart outputs, CT sensors and a user-friendly interface, the Ax Ultra is a top-of-the-line solar inverter. It has two independent input power sources (mains and generator) to ensure uninterrupted AC power, and comes with an oversized charger (150A) for fast battery charging even when AC or solar power is available for a limited time. In addition, the Ax Ultra provides a second AC output that allows users to define their own cut-off voltage, state of charge (SOC) percentage, discharge time, and scheduled on/off time.
Product Features

• Dual outputs for smart load management

• Two independent AC power sources connected and switched automatically

• Built-in current transformer sensor to meet self-consumption application

• Support external BTS (Battery Temperature Sensor) detection

• Built-in power status lighting indicators

• Built-in 2.8" colored LCD with slide operation

• Built-in Wi-Fi for mobile monitoring and OTA firmware upgrade

• Supports USB On-the-Go function

• Reserved communication port for BMS (RS485, CAN-BUS or RS232)

• Support optional GFCI, Rapid shutdown, AFCI detections

• Parallel operation with 6 units

MODEL	Axpert Ultra 8K	Axpert Ultra 11K
RATED POWER	8000VA/8000W	11000VA/11000W
PARALLEL CAPABILITY	YES, 6 units
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230VAC ± 5%
Surge Power	16000VA	22000VA
Efficiency (Peak)	93%
Transfer Time	10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform	Pure sine wave
BATTERY
Battery Voltage	48 VDC
Floating Charge Voltage	54 VDC
Overcharge Protection	63 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type	MPPT
Maximum PV Array Power	10000W (5000W x 2)	12000W (6000W x 2)
MPPT Range @ Operating Voltage	90 ~ 450 VDC
Maximum PV Array Open Circuit Voltage	500 VDC
Maximum PV Input Current	27A x 2 (MAX 40A)
Maxmum Solar Charge Current	150A	150A
Maximum AC Charge Current	120A	150A
Maximum Charge Current	150A	150A
PHYSICAL
Dimension, D x W x H (mm)	145 x 438 x 553.6
Net Weight (kgs)	18.4
Communication Interface	USB/RS232/RS485/WiFi/Dry-contact/BTS Support optional GFCI, Rapid shutdown,AFCI detection
External Current Sensor Port	Yes, built-in current transformer sensor
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C
STANDARD
Compliance Safety	CE
