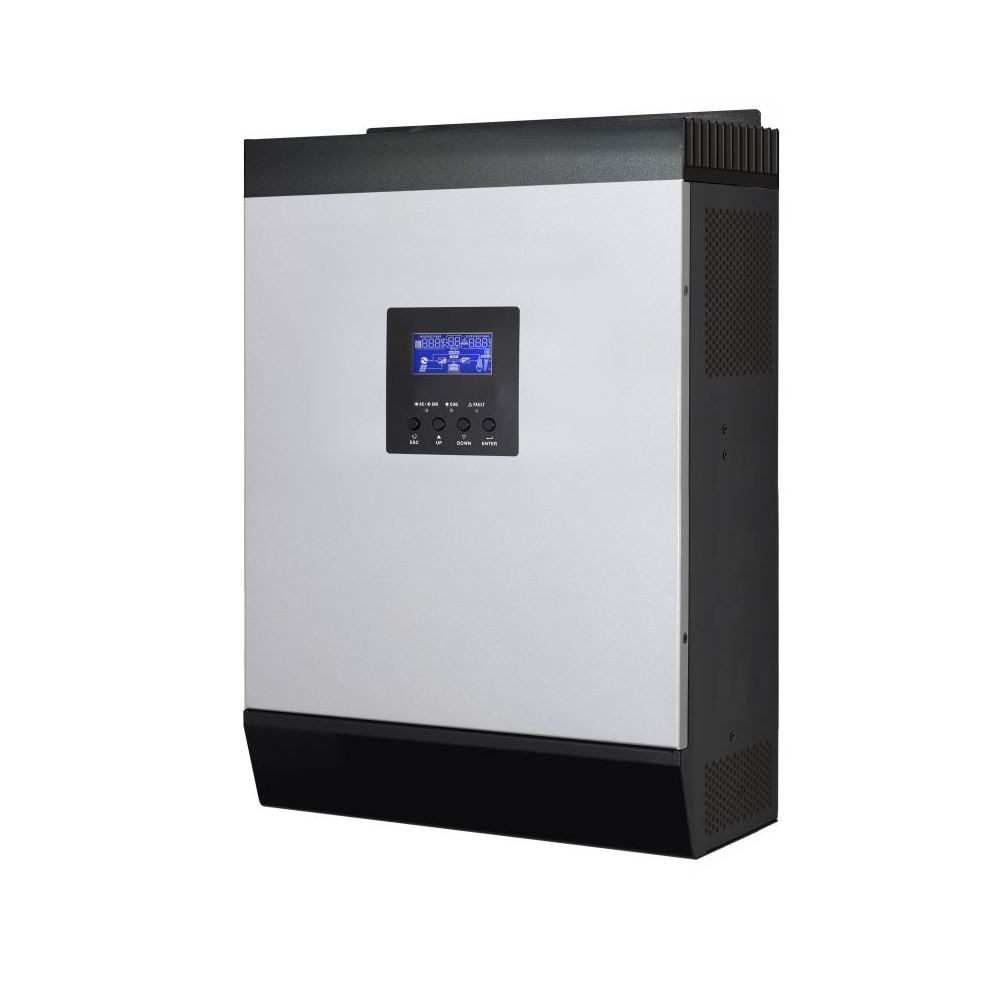

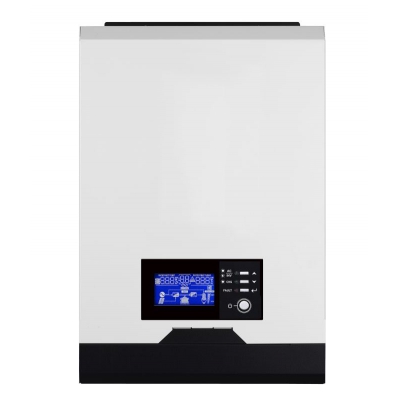

GTO-Ax MKS II/MKS II Plus 5KW with the MPPT solar charging controller

MPPT solar charger
The AX MKS is equipped with the MPPT solar charging controller, which optimizes the maximum power output of the solar panel, and improves the minimum size and reliable power conversion for battery pack charging in a transformerless design. In addition, it can start motor loads such as refrigerators, motors, pumps, compressors, and power loads such as televisions, computers, power tools, and battery chargers.The AX MKS plus is similar to the AX MKS series, but features a more powerful MPPT solar charging controller.
PRODUCT FEATURES

• Pure sine wave solar inverter

• Selectable high power charging current

• Wide DC input range

• Selectable input voltage range for home appliances and

personal computers

• Configurable AC/Solar input priority via LCD setting

• Compatible to mains voltage or generator power

• Auto restart while AC is recovering

• Overload and short circuit protection

• Smart battery charger design for optimized battery

performance

• Cold start function

• Parallel operation with up to 9 units

MODEL	Axpert MKS II 5000-48	Axpert MKS II Plus 5000-48
Rated Power	5000VA/5000W	5000VA/5000W
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230 VAC ± 5%
Overload capacity	5s@≥150% load; 10s@110%~150% load; 100ms @ ≥200% load
Efficiency (Peak)	90%
Transfer Time	10 ms (For Personal Computers) 20 ms (For Home Appliances)
Waveform	Pure sine wave
BATTERY
Battery Voltage	48 VDC
Floating Charge Voltage	54 VDC
Overcharge Protection	66 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type	MPPT
Maximum PV Array Power	4500W	6000 W
MPPT Range @ Operating Voltage	120 ~ 430 VDC	120 ~ 430 VDC
Maximum PV Array Open Circuit Voltage	450 VDC
Maxmum Solar Charge Current	100 A
Maximum AC Charge Current	100 A
Maximum Charge Current	100 A
PHYSICAL
Dimension, D x W x H (mm)	120 x 295 x 468
Net Weight (kgs)	11.0
Communication Interface	USB and RS232
ENVIRONMENT
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C
