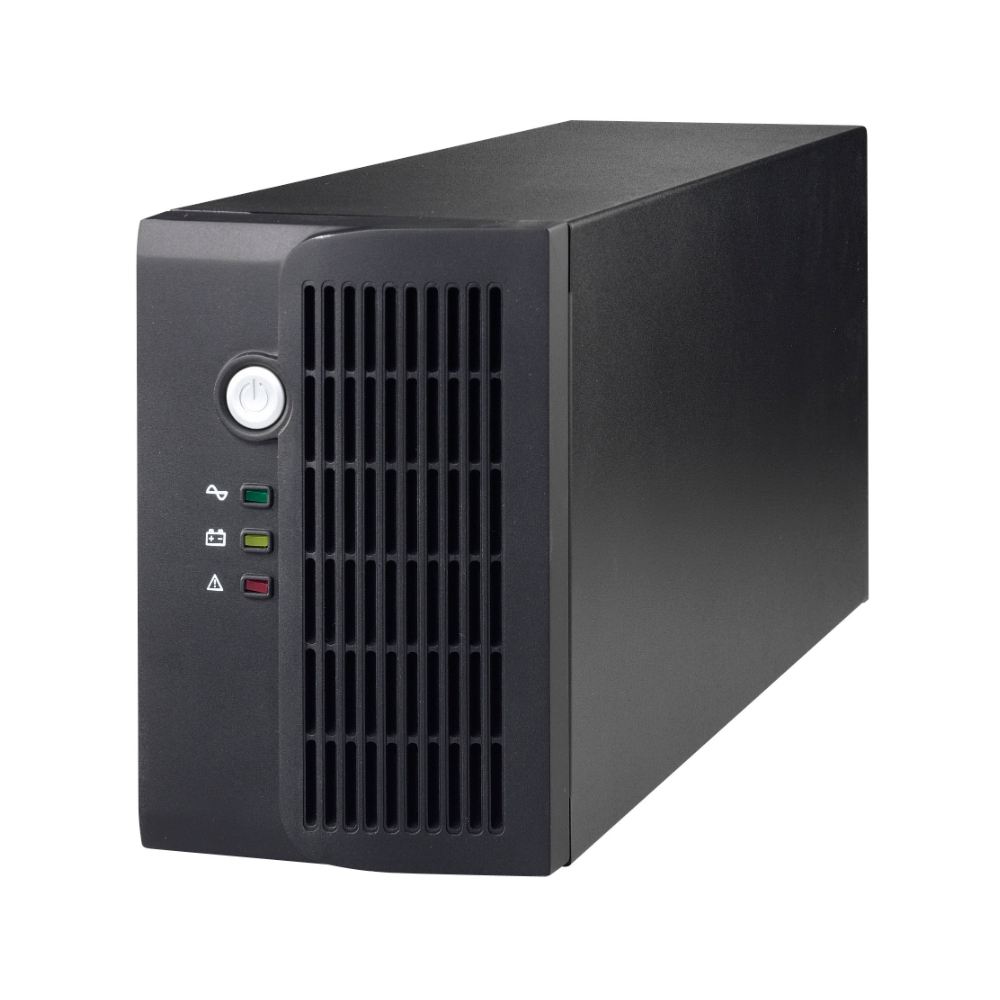

GTO Atom compact metal inverter UPS

Built-in transformer

Atom is a compact metal inverter UPS that combines the benefits of a UPS and an inverter to run for a long time. The built-in voltage regulator accepts a wide input voltage range (100VAC~290VAC) and can be converted into a stable and pure power supply for connected devices. It is the perfect choice for homeowners or small office users in areas with unstable power.

PRODUCT FEATURES

• 600VA simulated sine wave inverter

• Built-in transformer

• Wide input voltage range

• 10A standard charging current

• Auto restart while AC is recovering

• Overload, overcharge and short circuit protection

• Cold start function

• Offer LED or LCD front panels for selection

MODEL	Atom 600	Lobo 1.2K	Lobo 2.4K
CAPACITY	600 VA / 420 W	1200VA/ 720W	2400VA/ 1440W
INPUT
Voltage	230 VAC
Acceptable Voltage Range	100 - 290 VAC	90-280VAC
Frequency Range	50Hz/60Hz (Auto Sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230V ±10%
Transfer Time	20 ms (typical)
Waveform (Batt. Mode)	Simulated Sine wave
BATTERY
Battery Voltage	12 VDC	12 VDC	24VDC
Floating Charge Voltage	13.7 VDC ± 2%	13.7 VDC ± 2%	27.4 VDC ± 2%
Low Battery Alarm Voltage @ 50% Load	10.6 VDC ± 2%	10.2 VDC ± 2%	20.4 VDC ± 2%
Shutdown Voltage	9.9 VDC ± 2%	9.9 VDC ± 2%	19.8 VDC ± 2%
Overcharge Protection	14.5 VDC ± 2%	15.0 VDC ± 2%	30.0 VDC ± 2%
Maximum Charge Current	10 A	10 A or 20 A (Selectable)
PHYSICAL
Dimension, DX W X H (mm)	359 x 97 x 147	300 x 360 x 88
Net Weight (kgs)	5.1	6.1	7.4
ENVIRONMENT
Humidity	0 to 90% Relative Humidity(Non-condensing)
Operating Temperature	0℃ to 50℃	0℃ to 40℃
Storage Temperature	-15℃ to 50℃	-15℃ to 50℃
