MODEL

Atom 600

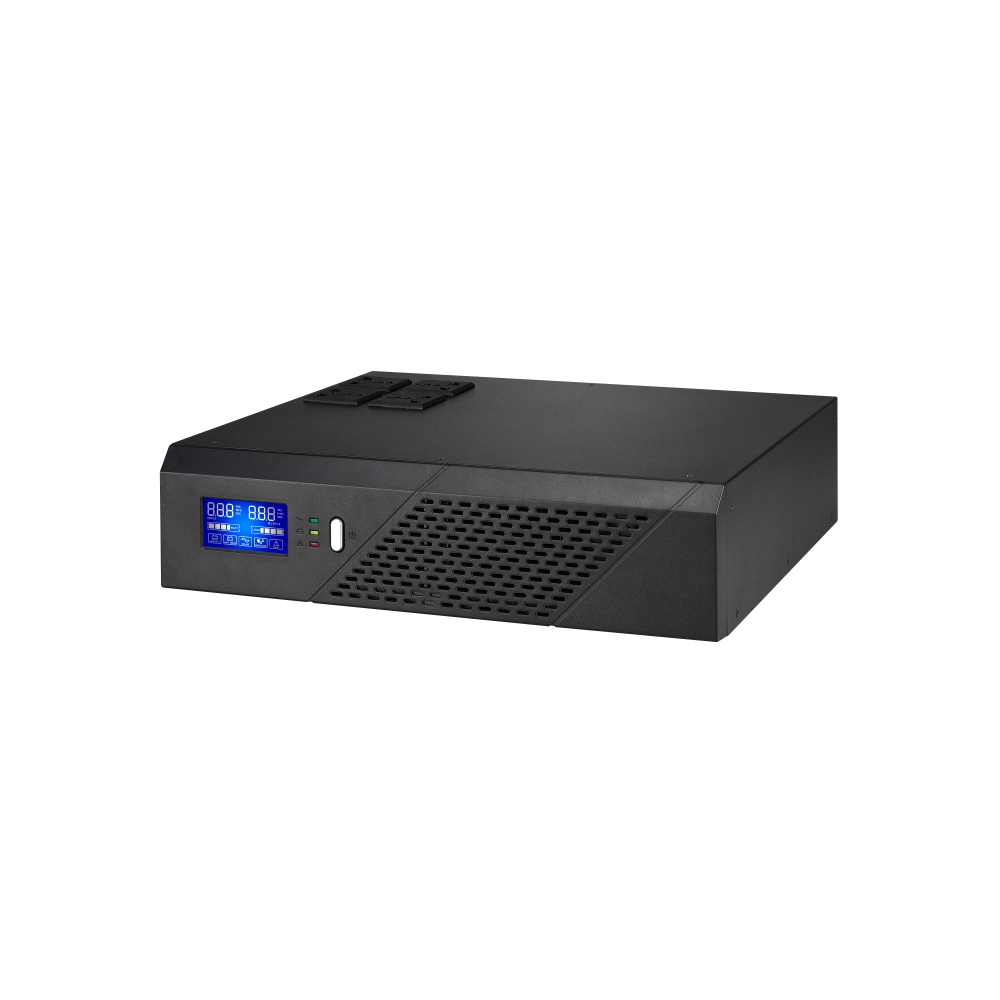

Lobo 1.2K

Lobo 2.4K

CAPACITY

600 VA / 420 W

1200VA/ 720W

2400VA/ 1440W

INPUT

Voltage

230 VAC

Acceptable Voltage Range

100 - 290 VAC

90-280VAC

Frequency Range

50Hz/60Hz (Auto Sensing)

OUTPUT

AC Voltage Regulation (Batt. Mode)

230V ±10%

Transfer Time

20 ms (typical)

Waveform (Batt. Mode)

Simulated Sine wave

BATTERY

Battery Voltage

12 VDC

12 VDC

24VDC

Floating Charge Voltage

13.7 VDC ± 2%

13.7 VDC ± 2%

27.4 VDC ± 2%

Low Battery Alarm Voltage @ 50% Load

10.6 VDC ± 2%

10.2 VDC ± 2%

20.4 VDC ± 2%

Shutdown Voltage

9.9 VDC ± 2%

9.9 VDC ± 2%

19.8 VDC ± 2%

Overcharge Protection

14.5 VDC ± 2%

15.0 VDC ± 2%

30.0 VDC ± 2%

Maximum Charge Current

10 A

10 A or 20 A (Selectable)

PHYSICAL

Dimension, DX W X H (mm)

359 x 97 x 147

300 x 360 x 88

Net Weight (kgs)

5.1

6.1

7.4

ENVIRONMENT

Humidity

0 to 90% Relative Humidity(Non-condensing)

Operating Temperature

0℃ to 50℃

0℃ to 40℃

Storage Temperature

-15℃ to 50℃

-15℃ to 50℃
