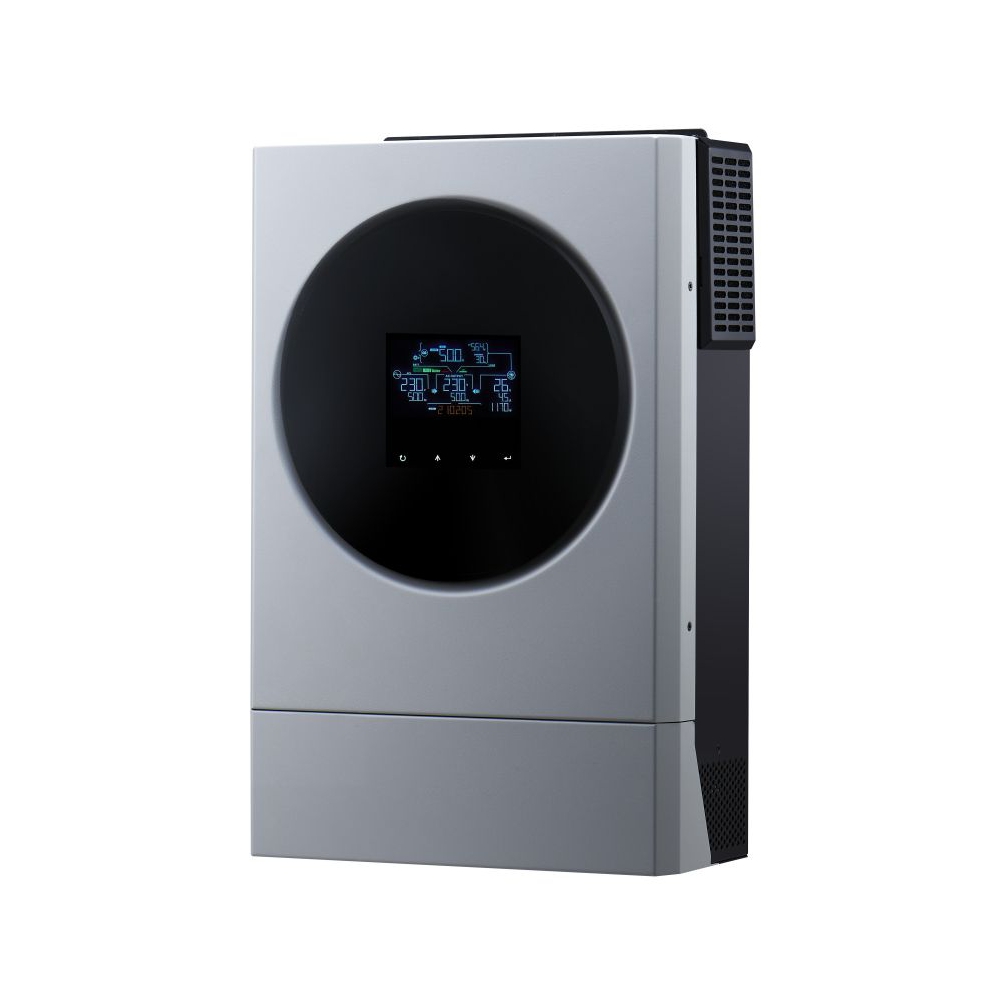

GTO-Ax MKS 4 TWIN 5KW/6KW with the MPPT solar charging controller

Dual output design for intelligent load management
The Ax MKS 4 TWIN is configured with two outputs for user-friendly intelligent load control. The second output can be timed on/off with LCD Settings to set the cut-off voltage or SOC and discharge time. The Ax MKS 4 TWIN is equipped with the MPPT solar charging controller, which optimizes the maximum power output of the solar panel to charge the battery pack.
Product Features
• Maximum PV input current 27A
• Dual outputs for smart load management
• Customizable status LED ring with RGB lights
• Touchable button with 4.3" colored LCD
• Wide DC input range
• Built-in Wi-Fi for mobile monitoring (App is available)
• Reserved communication port for BMS
• Battery independent function
• Parallel operation with up to 9 units

MODEL	Axpert MKS 4 TWIN 5K	Axpert MKS 4 TWIN 6K
RATED POWER	5000VA/5000W	6000VA/6000W
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range	55 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230 VAC ± 5%
Overload capacity	5s@≥150% load; 10s@110%~150% load; 100ms @ ≥200% load
Efficiency (Peak)	93 %
Transfer Time	10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform	Pure sine wave
BATTERY
Battery Voltage	48 VDC	48 VDC
Floating Charge Voltage	54 VDC	54 VDC
Overcharge Protection	66 VDC	66 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type	MPPT	MPPT
Maximum PV Array Power	6000 W	6000 W
MPPT Range @ Operating Voltage	120 ~ 430 VDC
Maximum PV Array Open Circuit Voltage	500 VDC
Maximum PV Input Current	27A
Maxmum Solar Charge Current	120 A	120 A
Maximum AC Charge Current	120 A	120 A
PHYSICAL
Dimension, D x W x H (mm)	140 x 295 x 468
Net Weight (kgs)	12.0	12.0
Communication Interface	USB/RS232/RS485/Wifi/Dry-contact
ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C
