MODEL

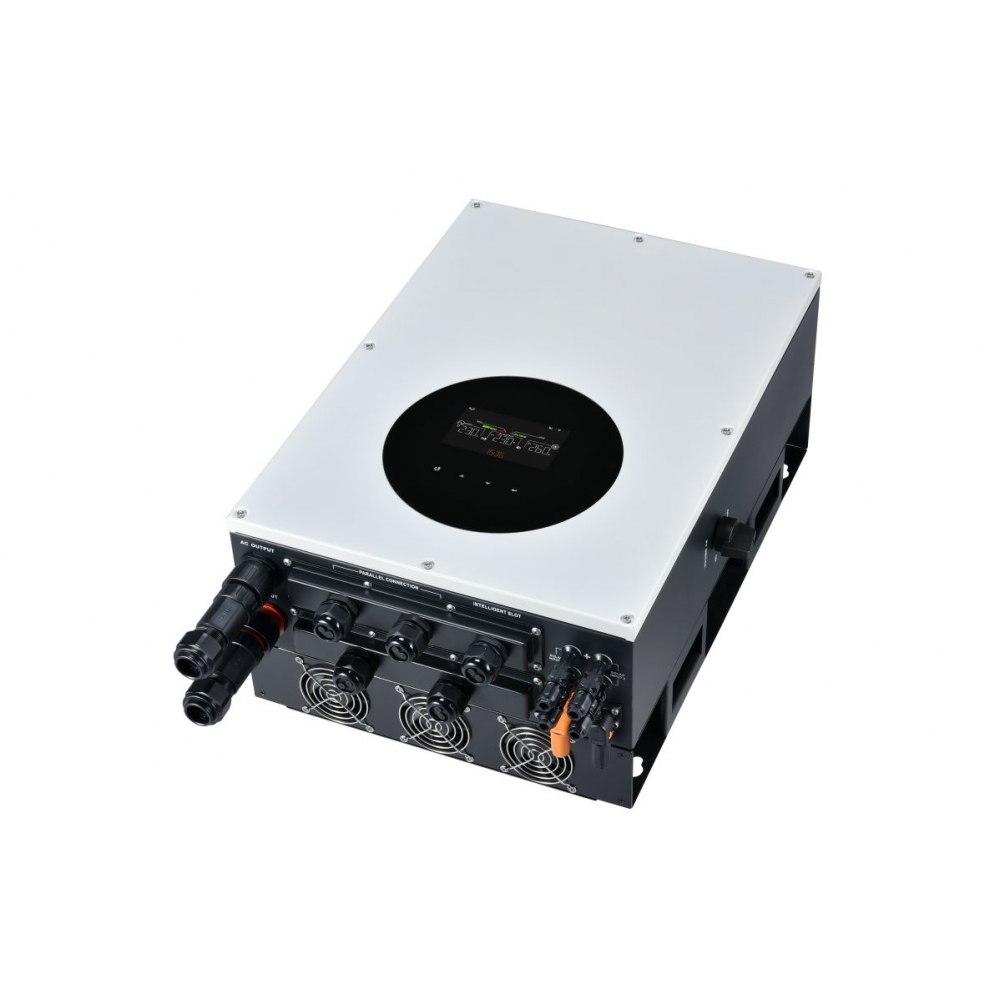

InfiniSolar WP HB 10kw

MAXIMUM PV INPUT POWER

14500W

RATED OUTPUT POWER

10000 W

MAXIMUM CHARGING POWER

10000 W

GRID-TIE OPERATION

PV INPUT (DC)

Nominal DC Voltage / Maximum DC Voltage

720 VDC / 900 VDC

Start-up Voltage / Initial Feeding Voltage

320 VDC / 350 VDC

MPP Voltage Range

350 VDC ~ 900 VDC

Number of MPP Trackers / Maximum Input Current

2 / A: 18A, B: 18A

Number of Strings Per MPP Tracker

A: 2, B: 2

GRID OUTPUT (AC)

Nominal Output Voltage

230 VAC (P-N) / 400 VAC (P-P)

Output Voltage Range

184 - 265 VAC per phase

Nominal Output Current

14.5 A per phase

Power Factor range

0.9 lag ~ 0.9 lead

EFFICIENCY

Maximum Conversion Efficiency (DC/AC)

>96%

European Efficiency@ Vnominal

>95%

OFF-GRID OPERATION

AC INPUT

AC Start-up Voltage / Auto Restart Voltage

120 - 140 VAC / 180 VAC

Acceptable Input Voltage Range

170 - 280 VAC per phase

Maximum AC Input Current

20 A

PV INPUT (DC)

Maximum DC Power

14500 W

Maximum DC Voltage

900 VDC

MPP Voltage Range

350 VDC ~ 900 VDC

Number of MPP Trackers / Maximum Input Current

2 / A: 18A, B: 18A

Number of Strings Per MPP Tracker

A: 2, B: 2

BATTERY MODE OUTPUT (AC)

Nominal Output Voltage

230 VAC (P-N) / 400 VAC (P-P)

Output Waveform

Pure sine wave

Efficiency (DC to AC)

94%

HYBRID OPERATION

PV INPUT (DC)

Maximum DC Voltage

720 VDC

Start-up Voltage / Initial Feeding Voltage

320 VDC / 350 VDC

MPP Voltage Range

350 VDC ~ 900 VDC

Number of MPP Trackers / Maximum Input Current

2 / A: 18A, B: 18A

Number of Strings Per MPP Tracker

A: 2, B: 2

GRID OUTPUT (AC)

Nominal Output Voltage

230 VAC (P-N) / 400 VAC (P-P)

Output Voltage Range

184 - 265 VAC per phase

Nominal Output Current

14.5 A per phase

AC INPUT

AC Start-up Voltage / Auto Restart Voltage

120 - 140 VAC / 180 VAC

Acceptable Input Voltage Range

170 - 280 VAC per phase

Maximum AC Input Current

20 A

BATTERY MODE OUTPUT (AC)

Nominal Output Voltage

230 VAC (P-N) / 400 VAC (P-P)

Efficiency (DC to AC)

94%

BATTERY & CHARGER

Battery Voltage Range

204 ~ 408 VDC

Maximum Charging Current

30 A

GENERAL

PHYSICAL

Dimension, D x W x H (mm)

255 x 660 x 600

Net Weight (kgs)

45

IP protection

IP65

INTERFACE

Communication Port

RS-232, RS-485, USB, CAN and Wi-Fi

Intelligent Slot

Optional for SNMP and Modbus cards

ENVIRONMENT

Humidity

0 ~ 100% RH (Non-condensing)

Operating Temperature

-25 to 60°C, > 45°C power derating

Altitude

0 ~ 1000 m**
