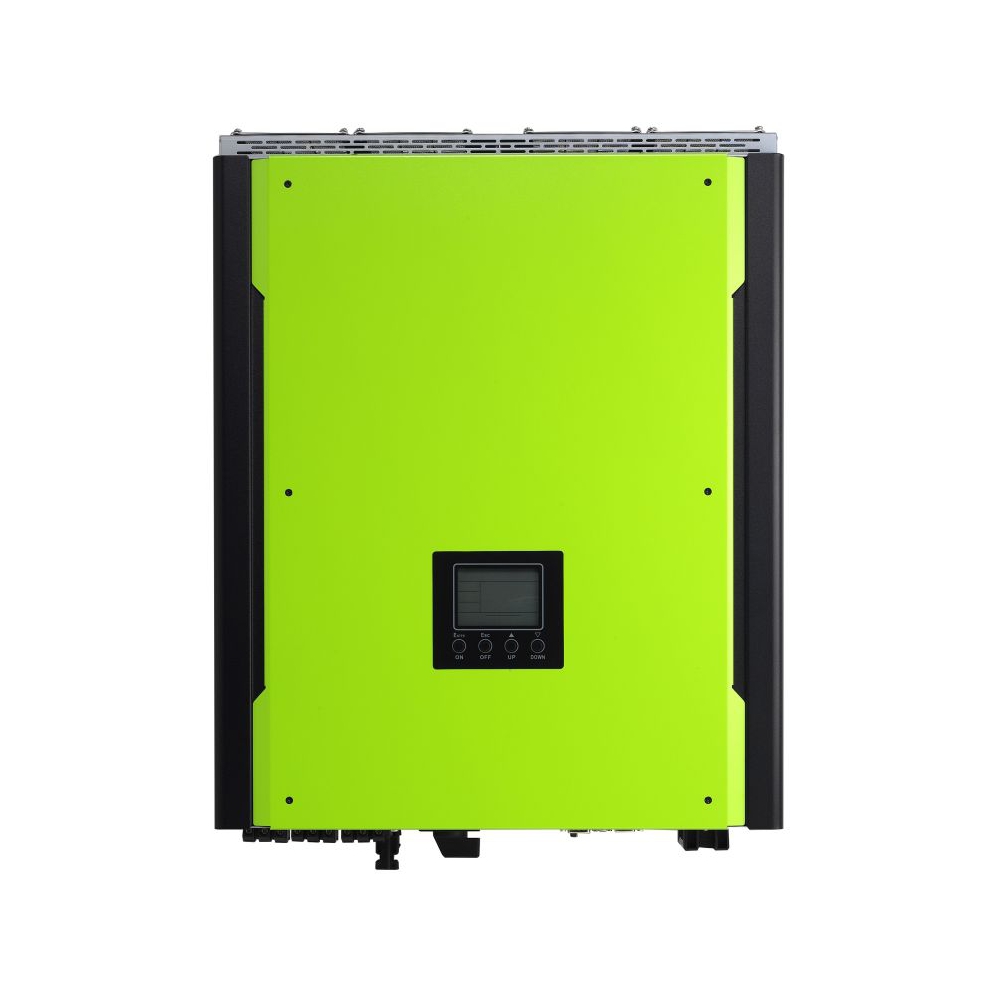

GTO-IS Super 4kw With dual AC inputs, it‘s compatible with utilities and generators

It can run 6 units in parallel

The IS Super 4kw can run up to six units simultaneously in parallel and can produce rated output power of up to 24KW. The charging current of different batteries can be adjusted, and its AC/ solar charger is upgraded to 80A. With dual AC inputs, it‘s compatible with utilities and generators, so you don‘t have to worry about power outages.
Product Features

• Self-consumption and feed-in to the grid

• Programmable supply priority for PV, Battery or Grid

• User-adjustable battery charging current suits different types of batteries

• Programmable multiple operations modes: grid-tie, off-grid, and grid-tie with backup

• Built-in timer for various mode of on/off operation

• Multiple communication for USB, RS-232, Modbus and SNMP

• Monitoring software for real time status display and control

• 80A of AC & PV Charger capability

• Support parallel up to 6 units

• PV input power is 50% higher of inverter rating to support more power for batter charging even with full load connected.

MODEL	InfiniSolar Super 4kw
PHASE	1-phase in / 1-phase out
MAXIMUM PV INPUT POWER	5000 W
RATED OUTPUT POWER	4000 W
MAXIMUM CHARGING POWER	4000 W
GRID-TIE OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage	360 VDC / 580 VDC
Start-up Voltage / Initial Feeding Voltage	116 VDC / 150 VDC
MPP Voltage Range	280 VDC ~ 500 VDC
Number of MPP Trackers / Maximum Input Current	1 / 1 x 18 A
GRID OUTPUT (AC)
Nominal Output Voltage	202/208/220/230/240 VAC
Output Voltage Range	184-264.5 VAC*
Nominal Output Current	17.5 A
Power Factor	> 0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC)	96%
European Efficiency@ Vnominal	95%
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage / Auto Restart Voltage	120-140 VAC / 180 VAC
Acceptable Input Voltage Range	170-280 VAC
Maximum AC Input Current	40 A
PV INPUT (DC)
Maximum DC Voltage	580 VDC
MPP Voltage Range	280 VDC ~ 500 VDC
Number of MPP Trackers / Maximum Input Current	1 / 1 x 18 A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage	202/208/220/230/240 VAC
Output Waveform	Pure sinewave
Efficiency (DC to AC)	91%
HYBRID OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage	360 VDC / 580 VDC
Start-up Voltage / Initial Feeding Voltage	116 VDC / 150 VDC
MPP Voltage Range	280 VDC ~ 500 VDC
Number of MPP Trackers / Maximum Input Current	1 / 1 x 18 A
GRID OUTPUT (AC)
Nominal Output Voltage	202/208/220/230/240 VAC
Output Voltage Range	184-264.5 VAC*
Nominal Output Current	17.5 A
AC INPUT
AC Start-up Voltage / Auto Restart Voltage	120-140 VAC / 180 VAC
Acceptable Input Voltage Range	170-280 VAC
Maximum AC Input Current	40A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage	202/208/220/230/240 VAC
Efficiency (DC to AC)	91%
BATTERY & CHARGER
Nominal DC Voltage	48 VDC
Maximum Charging Current	80 A
GENERAL
PHYSICAL
Dimension, D x W x H (mm)	117 x 438 x 535
Net Weight (kgs)	16.2
INTERFACE
Communication Port	USB/Dry contact
Intelligent Slot	Optional SNMP, Modbus and AS-400 cards
ENVIRONMENT
Humidity	0 ~ 90% RH (Non-condensing)
Operating Temperature	0 to 40ºC
Altitude	0 ~ 1000 m**
