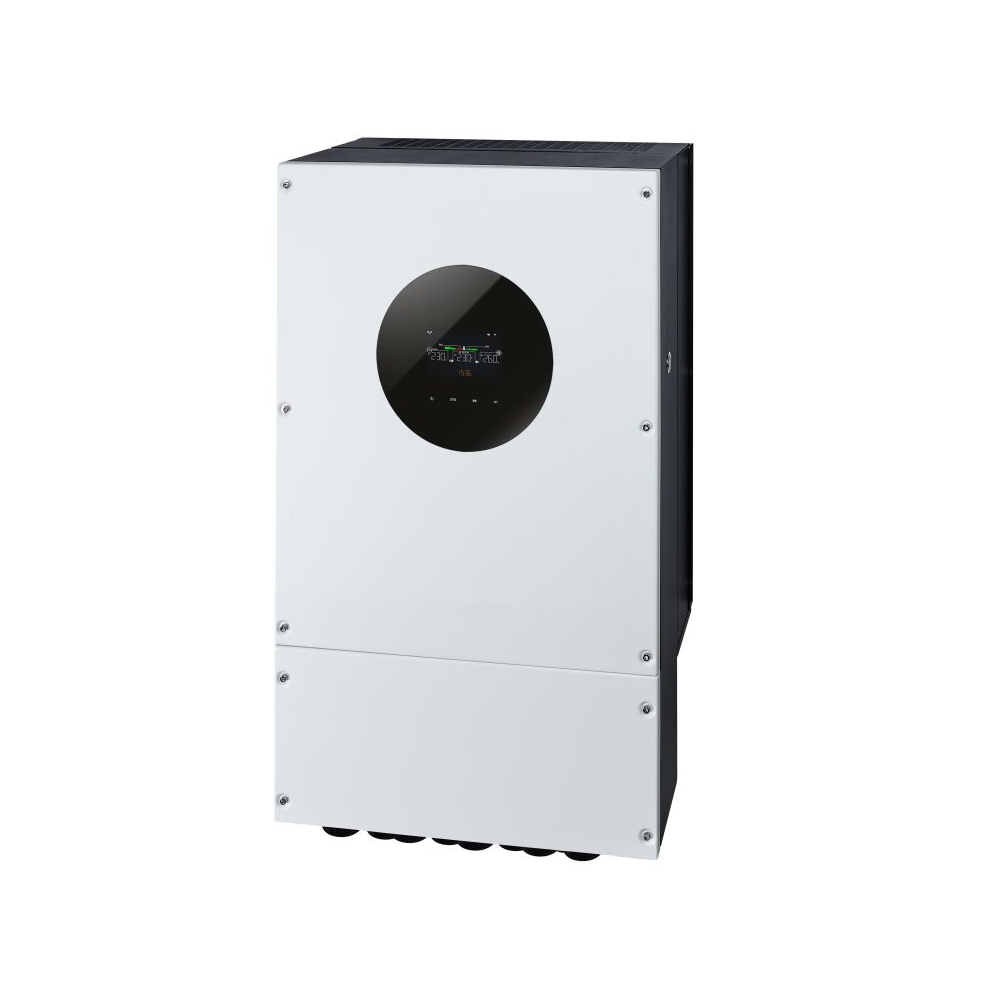

GTO-I V4 WP 6kw The IP65 rated hybrid inverter is waterproof and dust-proof to adapt to changing climates

Hybrid inverter with IP65 protection rating

The IP65 rated I V4 WP hybrid inverter is waterproof and dust-proof to adapt to changing climates, providing an ideal energy solution for dusty and rainy regions. Editable power priorities for PV, batteries or the grid to help manage and reduce electricity bills.
Product Features

• IP65 waterproof and dustproof

• Dual outputs for smart load management

• Two independent AC power sources connected and switched automatically

• Self-consumption and Feed-in to the grid

• Programmable supply priority for PV, Battery or Grid

• Built-in communication port for BMS (RS485)

• User-adjustable charging current and voltage

• Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup

• Parallel operation up to 9 units

MODEL	Infini V4 WP 6kw
PHASE	1-phase in / 1-phase out
MAXIMUM PV INPUT POWER	7000W
RATED OUTPUT POWER	6000VA/6000W
MAXIMUM CHARGING POWER	6000 W
GRID-TIE OPERATION
PV INPUT (DC)
Maximum DC Voltage	550 VDC
Start-up Voltage / Initial Feeding Voltage	120VDC / 150 VDC
MPP Voltage Range	120 VDC ~ 450 VDC
Number of MPP Trackers / Maximum Input Current	1 / 30A
GRID OUTPUT (AC)
Nominal Output Voltage	220/230/240 VAC
Output Voltage Range	184 - 264.5 VAC or 195.5 - 253 VAC or 184 - 264.4 VAC (Selectable)
Nominal Output Current	26A
Power Factor	> 0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC)	97%
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage / Auto Restart Voltage	120 - 140 VAC / 180 VAC
Acceptable Input Voltage Range	90 - 280 VAC or 170 - 280 VAC
Frequency Range	50 Hz/60 Hz (Auto sensing)
Maximum AC Input Current	40 A
PV INPUT (DC)
Maximum DC Voltage	550 VDC
MPP Voltage Range	120VDC ~ 450 VDC
Number of MPP Trackers / Maximum Input Current	1 / 30A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage	220/230/240 VAC
Output Waveform	Pure sine wave
Efficiency (DC to AC)	93%
HYBRID OPERATION
PV INPUT (DC)
Maximum DC Voltage	550 VDC
Start-up Voltage / Initial Feeding Voltage	120 VDC / 150 VDC
MPP Voltage Range	120 VDC ~ 450 VDC
Number of MPP Trackers / Maximum Input Current	1 / 30A
GRID OUTPUT (AC)
Nominal Output Voltage	220/230/240 VAC
Output Voltage Range	184 - 264.5 VAC or 195.5 - 253 VAC or 184 - 264.4 VAC (Selectable)
Nominal Output Current	26A
AC INPUT
AC Start-up Voltage / Auto Restart Voltage	120 - 140 VAC / 180 VAC
Acceptable Input Voltage Range	90 - 280 VAC or 170 - 280 VAC
Maximum AC Input Current	40 A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage	220/230/240 VAC
Efficiency (DC to AC)	93%
BATTERY & CHARGER
Nominal DC Voltage	48 VDC
Maximum Solar Charging Current	120 A
Maximum AC Charging Current	120 A
Maximum Charging Current	120 A
GENERAL
PHYSICAL
Dimension, D x W x H (mm)	192 x 360 x 665
Net Weight (kgs)	22.5
INTERFACE
Parallel Function	Yes, 9 units
Communication Port	USB or RS-232/Dry Contact/RS485/Wi-Fi
ENVIRONMENT
Humidity	0 ~ 95% RH (No condensing)
IP degree	IP65
Operating Temperature	-25°C to 50°C
