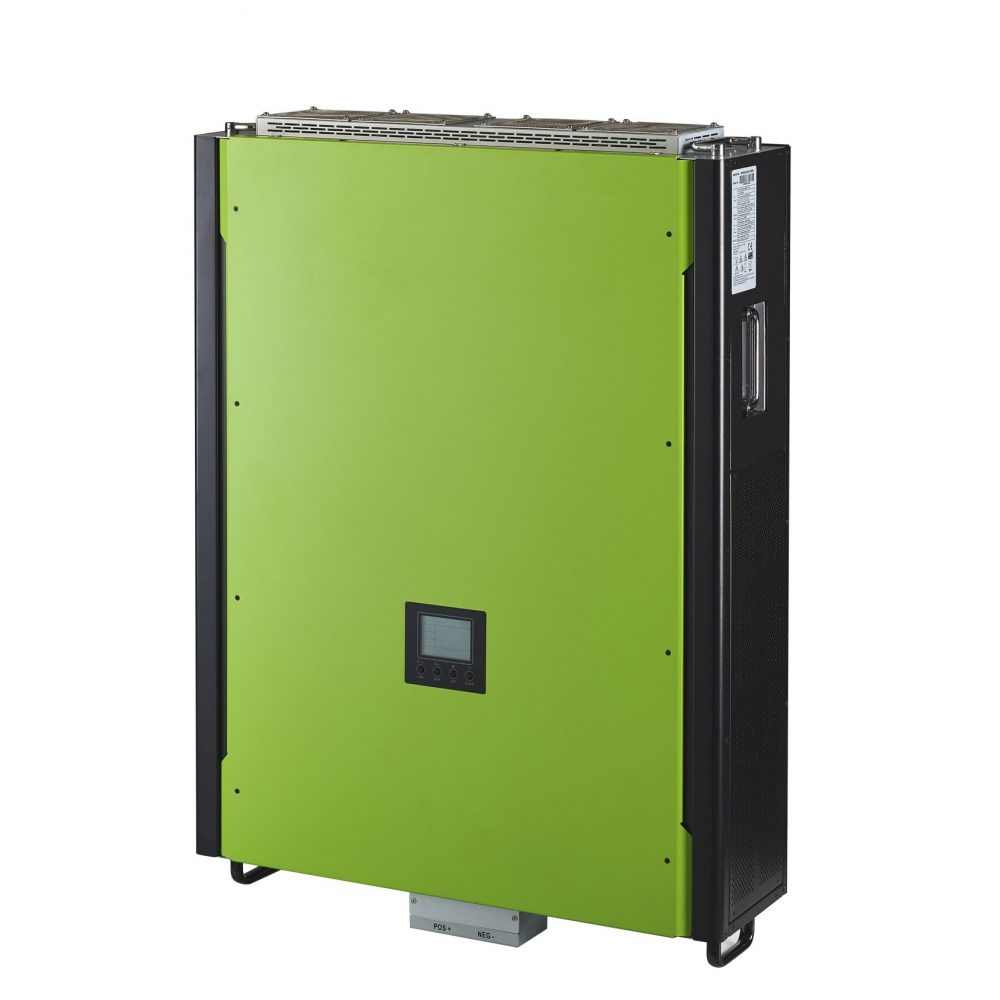

InfiniSolar:2-15kw-【Gitenno Technology】-China UPS power supply,Photovoltaic inverters,lead acid batteries Manufacturers and Suppliers

< >

GTO-IS 2-5kw multiple operations modes: Grid tie, Off grid, and grid-tie with backup

Hybrid inverter

The IS 2KW/3KW/5KW is a hybrid inverter that combines a solar system, AC power, and battery power to provide continuous and stable power. It is suitable for emergency power supply in remote areas where the cost of mains power is high or when the mains power is unstable.
Product Features
‧Self-consumption and feed-in to the grid
‧Programmable supply priority for PV, Battery or Grid
‧User-adjustable battery charging current suits different types of batteries
‧Programmable multiple operations modes: Grid tie, Off grid, and grid-tie with backup
‧Built-in Timer for various mode of on/off operation
‧Multiple communication for USB, RS-232, Modbus and SNMP
‧Monitoring software for real time status display and control
‧Custom-made firmware by ODM contract
‧Parallel operation up to 6 units for 5KW / 10KW and 15KW

MODEL	InfiniSolar 2kw	InfiniSolar Plus II 3kw	InfiniSolar Plus 5kw	InfiniSolar Plus 10kw	InfiniSolar 15kw
PHASE	1-phase in / 1-phase out			3-phase in / 3-phase out
MAXIMUM PV INPUT POWER	2250 W	4500 W	10000 W	14850 W	22500 W
RATED OUTPUT POWER	2000 W	3000 W	5000 W	10000 W	15000 W
MAXIMUM CHARGING POWER	1200 W	2880W	4800 W	9600 W	15000 W
GRID-TIE OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage	300 VDC / 350 VDC	360 VDC / 500 VDC	720 VDC / 900 VDC	720 VDC / 1000 VDC	720 VDC / 900 VDC
Start-up Voltage / Initial Feeding Voltage	80 VDC / 120 VDC	116 VDC / 150 VDC	225 VDC / 250 VDC	320 VDC / 350 VDC	320 VDC / 350 VDC
MPP Voltage Range	120 VDC ~ 320 VDC	250 VDC ~ 450 VDC	250 VDC ~ 850 VDC	350 VDC ~ 950 VDC	350 VDC ~ 850 VDC
Number of MPP Trackers / Maximum Input Current	1 / 1 x 15 A	1 / 1 x 18 A	2 / 2 x 10 A	2 / 2 x 18.6A	2 / A: 37.65A; B: 18.6A
GRID OUTPUT (AC)
Nominal Output Voltage	101/110/120/127 VAC	208/220/230/240 VAC		230 VAC (P-N) / 400 VAC (P-P)
Output Voltage Range	88 - 127 VAC*	184 - 265 VAC*		184 - 265VAC* per phase	184 - 264.5VAC per phase
Nominal Output Current	18 A	13 A	21 A	14.5A per phase	21.7A per phase
Power Factor	> 0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC)	95%	96%
European Efficiency@ Vnominal	94%	95%
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Auto Restart Voltage	60 - 70 VAC / 85 VAC	120 - 140 VAC / 180 VAC		120 - 140 VAC per phase / 180 VAC per phase
Acceptable Input Voltage Range	80 - 130 VAC	170 - 280 VAC		170 - 290 VAC per phase	170 - 280 VAC per phase
Maximum AC Input Current	30 A		40 A
PV INPUT (DC)
Maximum DC Voltage	350 VDC	500 VDC	900 VDC	1000 VDC	900 VDC
MPP Voltage Range	150 VDC ~ 320 VDC	250 VDC ~ 450 VDC	250 VDC ~ 850 VDC	350 VDC ~ 950 VDC	350 VDC ~ 850 VDC
Number of MPP Trackers/Maximum Input Current	1 / 1 x 15 A	1 / 1 x 18 A	2 / 2 x 10A	2 / 2 x 18.6A	2 / A: 37.65A; B: 18.6A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage	101/110/120/127 VAC	208/220/230/240 VAC	202/208/220/230/240 VAC	230 VAC (P-N) / 400 VAC (P-P)	230 VAC (P-N) / 400 VAC (P-P)
Output Waveform	Pure Sinewave
Efficiency (DC to AC)	90%	93%		91%	91%
HYBRID OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage	300 VDC / 350 VDC	360 VDC / 500 VDC	720 VDC / 900 VDC	720 VDC / 1000 VDC	720 VDC / 900 VDC
Start-up Voltage / Initial Feeding Voltage	80 VDC / 120 VDC	116 VDC / 150 VDC	225 VDC / 250 VDC	320 VDC / 350 VDC	320 VDC / 350 VDC
MPP Voltage Range	150 VDC ~ 320 VDC	250 VDC ~ 450 VDC	250 VDC ~ 850 VDC	350 VDC ~ 950 VDC	350 VDC ~ 850 VDC
Number of MPP Trackers/Maximum Input Current	1 / 1 x 15 A	1 / 1 x 18 A	2 / 2 x 10A	2 / 2 x 18.6A	2 / A: 37.65A; B: 18.6A
GRID OUTPUT (AC)
Nominal Output Voltage	101/110/120/127 VAC	208/220/230/240 VAC	202/208/220/230/240 VAC	230 VAC (P-N) / 400 VAC (P-P)	230 VAC (P-N) / 400 VAC (P-P)
Output Voltage Range	88-127 VAC*	184 - 265 VAC*		184 - 265 VAC* per phase	184 - 264.5 VAC per phase
Nominal Output Current	18 A	13 A	21 A	14.5 A per phase	21.7A per phase
AC INPUT
AC Start-up Voltage / Auto Restart Voltage	60 - 70 VAC / 85 VAC	120 - 140 VAC / 180 VAC		120 - 140 VAC per phase / 180 VAC per phase
Acceptable Input Voltage Range	80 - 130 VAC	170 - 280 VAC		170 - 290 VAC per phase	170 - 280 VAC per phase
Maximum AC Input Current	30 A		40 A		40 A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage	101/110/120/127 VAC	208/220/230/240 VAC	202/208/220/230/240 VAC	230 VAC (P-N) / 400 VAC (P-P)	230 VAC (P-N) / 400 VAC (P-P)
Efficiency (DC to AC)	90%	93%		91%	91%
BATTERY & CHARGER
Nominal DC Voltage	48 VDC
Maximum Charging Current	Default 25A, 5A - 25A (Adjustable)	Default 25 A, 5A - 60A (Adjustable)	Default 60A, 5A - 100A (Adjustable)	Default 60A, 10A - 200A (Adjustable)	Default 60A, 5A - 300A (Adjustable)
GENERAL
PHYSICAL
Dimension, D x W x H (mm)	107 x 438 x 480		204.2 x 460 x 600	167.2 x 500 x 622	219 x 650 x 820
Net Weight (kgs)	15.5		29	40	62
INTERFACE
Communication Port	RS-232/USB		RS-232/USB		RS-232, USB and Dry contact
Intelligent Slot	Optional SNMP, Modbus and AS-400 cards available
ENVIRONMENT
Humidity	0 ~ 90% RH (Non-Condensing)
Operating Temperature	0 to 40°C		-10 to 55°C
Altitude	0 ~ 1000 m**
