MODEL

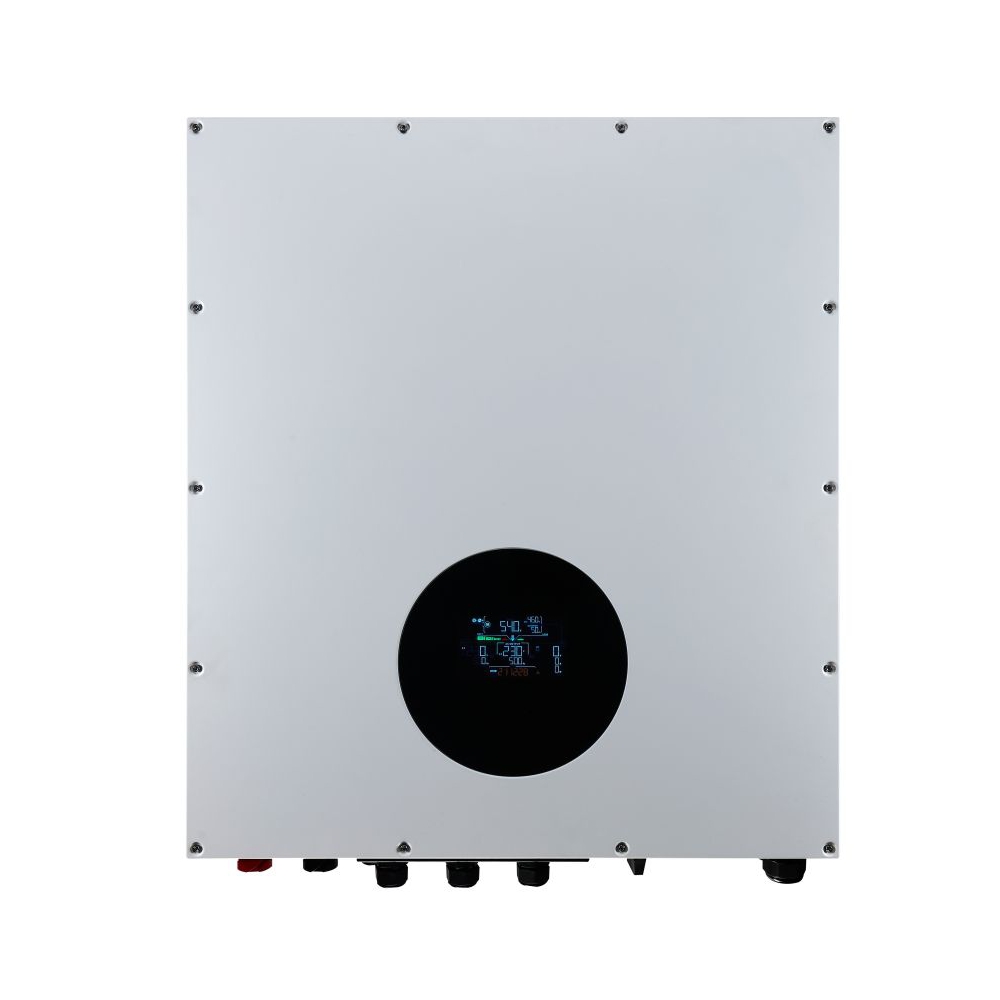

InfiniSolar WP TWIN 12kw

InfiniSolar WP TWIN 15kw

MAXIMUM PV INPUT POWER

16000 W

22500 W

RATED OUTPUT POWER

12000 W

15000 W

MAXIMUM CHARGING POWER

12000 W

15000 W

GRID-TIE OPERATION

PV INPUT (DC)

Nominal DC Voltage / Maximum DC Voltage

720 VDC / 1000 VDC

720 VDC / 1000 VDC

Start-up Voltage / Initial Feeding Voltage

320 VDC / 350 VDC

MPP Voltage Range

350 VDC ~ 950 VDC

350 VDC ~ 950 VDC

Number of MPP Trackers / Maximum Input Current

2 / A: 27A, B: 27A

2 / A: 27A, B: 27A

Number of Strings Per MPP Tracker

A: 2, B: 2

A: 2, B: 2

GRID OUTPUT (AC)

Nominal Output Voltage

230 VAC (P-N) / 400 VAC (P-P)

Output Voltage Range

184 - 265 VAC per phase

Nominal Output Current

17.4 A per phase

21.7 A per phase

Power Factor range

0.9 lag ~ 0.9 lead

EFFICIENCY

Maximum Conversion Efficiency (DC/AC)

>96%

European Efficiency@ Vnominal

>95%

OFF-GRID OPERATION

AC INPUT

AC Start-up Voltage / Auto Restart Voltage

120 - 140 VAC / 180 VAC

Acceptable Input Voltage Range

170 - 290 VAC per phase

Maximum AC Input Current

40 A

40 A

PV INPUT (DC)

Maximum DC Power

16000 W

22500 W

Maximum DC Voltage

1000 VDC

1000 VDC

MPP Voltage Range

350 VDC ~ 950 VDC

350 VDC ~ 950 VDC

Number of MPP Trackers / Maximum Input Current

2 / A: 27A, B: 27A

2 / A: 27A, B: 27A

Number of Strings Per MPP Tracker

A: 2, B: 2

A: 2, B: 2

BATTERY MODE OUTPUT (AC)

Nominal Output Voltage

230 VAC (P-N) / 400 VAC (P-P)

Output Waveform

Pure sine wave

Efficiency (DC to AC)

91%

91%

HYBRID OPERATION

PV INPUT (DC)

Maximum DC Voltage

1000 VDC

1000 VDC

Start-up Voltage / Initial Feeding Voltage

320 VDC / 350 VDC

MPP Voltage Range

350 VDC ~ 950 VDC

350 VDC ~ 950 VDC

Number of MPP Trackers / Maximum Input Current

2 / A: 27A, B: 27A

2 / A: 27A, B: 27A

Number of Strings Per MPP Tracker

A: 2, B: 2

A: 2, B: 2

GRID OUTPUT (AC)

Nominal Output Voltage

230 VAC (P-N) / 400 VAC (P-P)

Output Voltage Range

184 - 265 VAC per phase

Nominal Output Current

17.4 A per phase

21.7 A per phase

AC INPUT

AC Start-up Voltage / Auto Restart Voltage

120 - 140 VAC / 180 VAC

Acceptable Input Voltage Range

170 - 290 VAC per phase

Maximum AC Input Current

40 A

40 A

BATTERY MODE OUTPUT (AC)

Nominal Output Voltage

230 VAC (P-N) / 400 VAC (P-P)

Efficiency (DC to AC)

91%

91%

BATTERY & CHARGER

Battery Voltage Range

40 ~ 62 VDC

40 ~ 62 VDC

Maximum Charging Current

250 A

300 A

GENERAL

PHYSICAL

Dimension, D x W x H (mm)

255 x 660 x 750

Net Weight (kgs)

75

78

INTERFACE

Communication Port

RS-232, RS-485, USB, CAN and Wi-Fi

Intelligent Slot

Optional for SNMP and Modbus cards

ENVIRONMENT

Humidity

0 ~ 100% RH (Non-condensing)

Operating Temperature

-25 to 60°C, > 45°C power derating

Altitude

0 ~ 1000 m**
