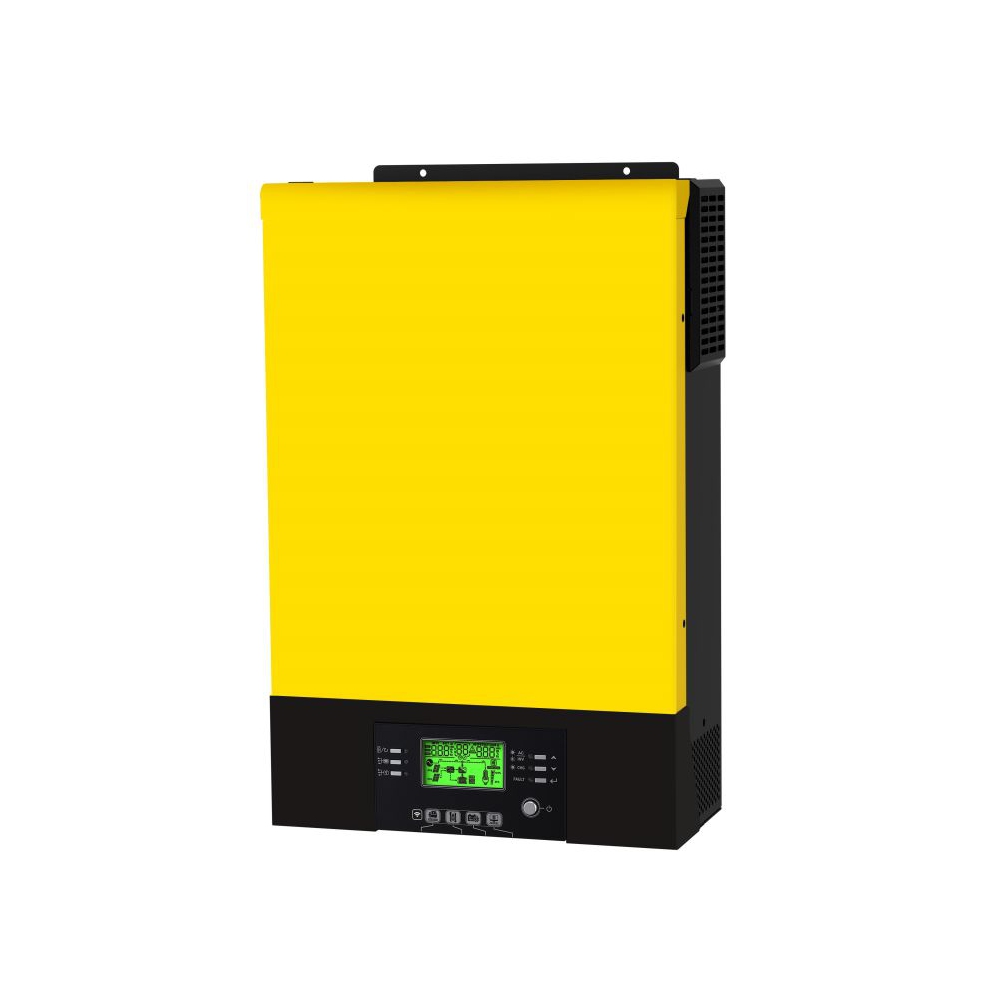

GTO-IS VIII TWIN 6kw built-in Wifi function，monitored remotely through the mobile APP

High PV voltage range

The IS VIII IS a second generation upgrade based on the IS V. The inverter can accept a high PV voltage range and will help in the installation of photovoltaic systems. This inverter also adds built-in Wifi function, which can be monitored remotely through the mobile APP. In addition, regardless of whether the battery is connected, the independent function of the battery can keep the inverter running. We are also able to provide parallel operation of up to 9 units, providing a high degree of flexibility for future power expansion.
Product Features

• Maximum PV input current 27A

• Dual outputs for smart load management

• Built-in WiFi for mobile monitoring (APP is available)

• Programmable supply priority for PV, Battery or Grid

• User-adjustable charging current and voltage

• Programmable multiple operation modes: Grid-tie, off-grid andgrid-tie with backup

• Detachable LCD panel

• Supports USB on-the-go function

• Reserve BMS communication

• Parallel operation up to 9 units

MODEL	InfiniSolar V III TWIN 6kw
PHASE	1-phase in / 1-phase out
MAXIMUM PV INPUT POWER	7000W
RATED OUTPUT POWER	6000W
MAXIMUM CHARGING POWER	6000W
GRID-TIE OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage	360 VDC / 500 VDC
Start-up Voltage / Initial Feeding Voltage	120VDC / 150 VDC
MPP Voltage Range	120 VDC ~ 430 VDC
Number of MPP Trackers / Maximum Input Current	1 / 27A
GRID OUTPUT (AC)
Nominal Output Voltage	220/230/240 VAC
Output Voltage Range	184 - 264.5 VAC or 195.5 - 253 VAC (Selectable)
Nominal Output Current	26A
Power Factor	> 0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC)	95%
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage / Auto Restart Voltage	120 - 140 VAC / 180 VAC
Acceptable Input Voltage Range	90 - 280 VAC or 170 - 280 VAC
Frequency Range	50 Hz/60 Hz (Auto sensing)
Maximum AC Input Current	40 A
PV INPUT (DC)
Maximum DC Voltage	500 VDC
MPP Voltage Range	120 VDC ~ 430 VDC
Number of MPP Trackers / Maximum Input Current	1 / 27A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage	220/230/240 VAC
Output Waveform	Pure sine wave
Efficiency (DC to AC)	93%
HYBRID OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage	360 VDC / 500 VDC
Start-up Voltage / Initial Feeding Voltage	120VDC / 150 VDC
MPP Voltage Range	120 VDC ~ 430 VDC
Number of MPP Trackers / Maximum Input Current	1 / 27A
GRID OUTPUT (AC)
Nominal Output Voltage	220/230/240 VAC
Output Voltage Range	184 - 264.5 VAC or 195.5 - 253 VAC (Selectable)
Nominal Output Current	26A
AC INPUT
AC Start-up Voltage / Auto Restart Voltage	120 - 140 VAC / 180 VAC
Acceptable Input Voltage Range	90 - 280 VAC or 170 - 280 VAC
Maximum AC Input Current	40 A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage	220/230/240 VAC
Efficiency (DC to AC)	93%
BATTERY & CHARGER
Nominal DC Voltage	48 VDC
Maximum Solar Charging Current	120 A
Maximum AC Charging Current	120 A
Maximum Charging Current	120 A
GENERAL
PHYSICAL
Dimension, D x W x H (mm)	140 x 295 x 468
Net Weight (kgs)	14
INTERFACE
Parallel Function	Yes, 9 units
Communication Port	USB, RS-232, Dry Contact and WiFi
ENVIRONMENT
Humidity	0 ~ 90% RH (No condensing)
Operating Temperature	-10°C to 50°C
